Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

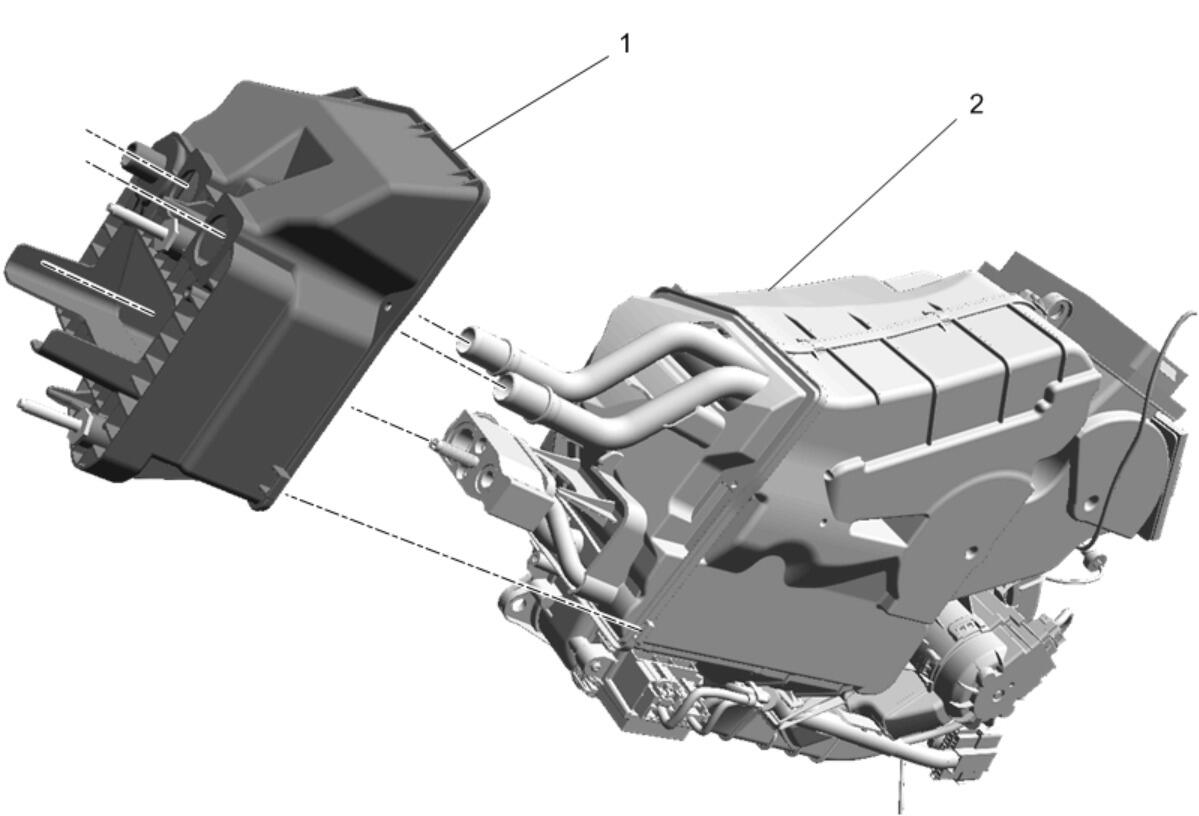

Fig 1: Auxiliary Air Conditioning Evaporator and Blower Lower Case And Auxiliary Air Conditioning Evaporator And Blower Module

Courtesy of GENERAL MOTORS COMPANY

Install Auxiliary Air Conditioning Evaporator and Blower Lower Case (1) @ Auxiliary Air Conditioning Evaporator and Blower Module (2)

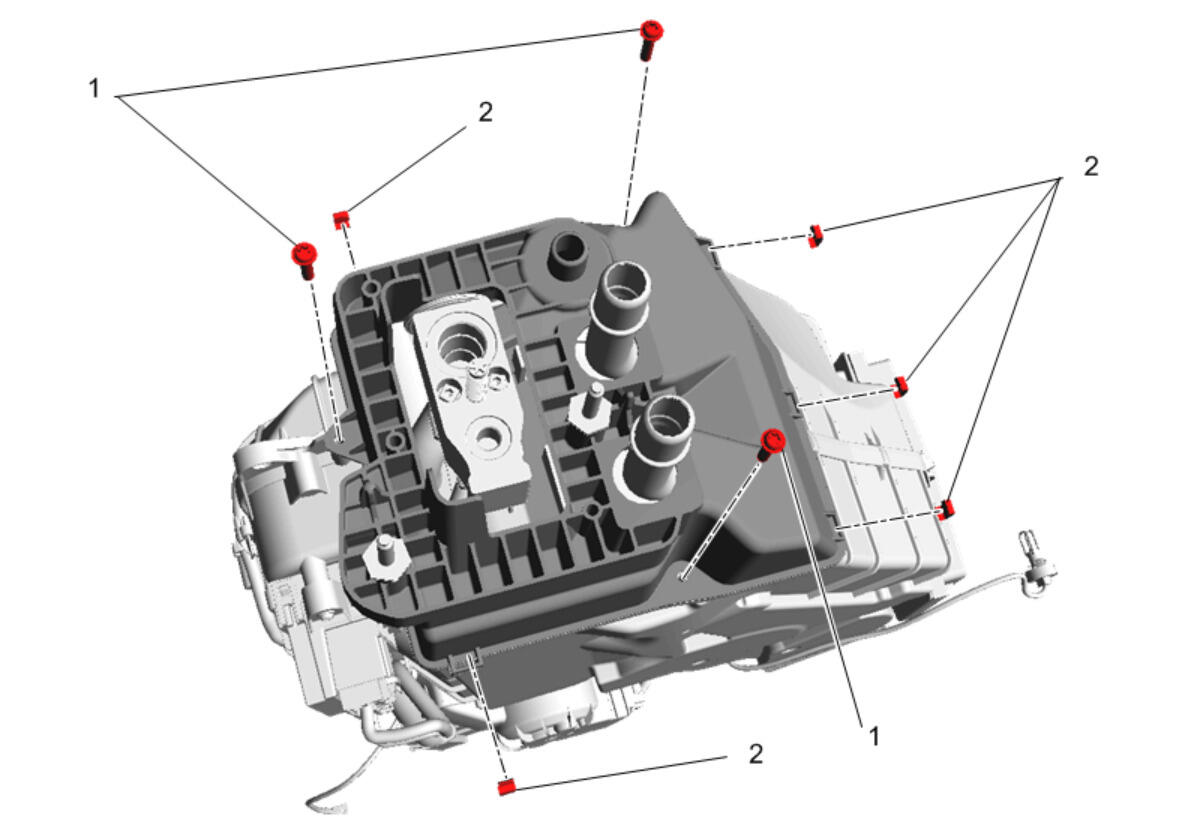

Fig 2: Auxiliary Air Conditioning Evaporator and Blower Case Bolts And Case Clips

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Install Air Conditioning Evaporator Case Clips (2) (Qty: 5)
Install and tighten Auxiliary Air Conditioning Evaporator and Blower Case Bolts (1) (Qty: 3) to 1.5 N.m (13 lb in)

Fig 3: Auxiliary Heater And Air Conditioning Evaporator And Blower Module Drain Valve And Seal

Courtesy of GENERAL MOTORS COMPANY

Install Auxiliary Air Conditioning Evaporator and Blower Module Drain Valve (2)
Install Heater and Air Conditioning Evaporator and Blower Module Seal (1)

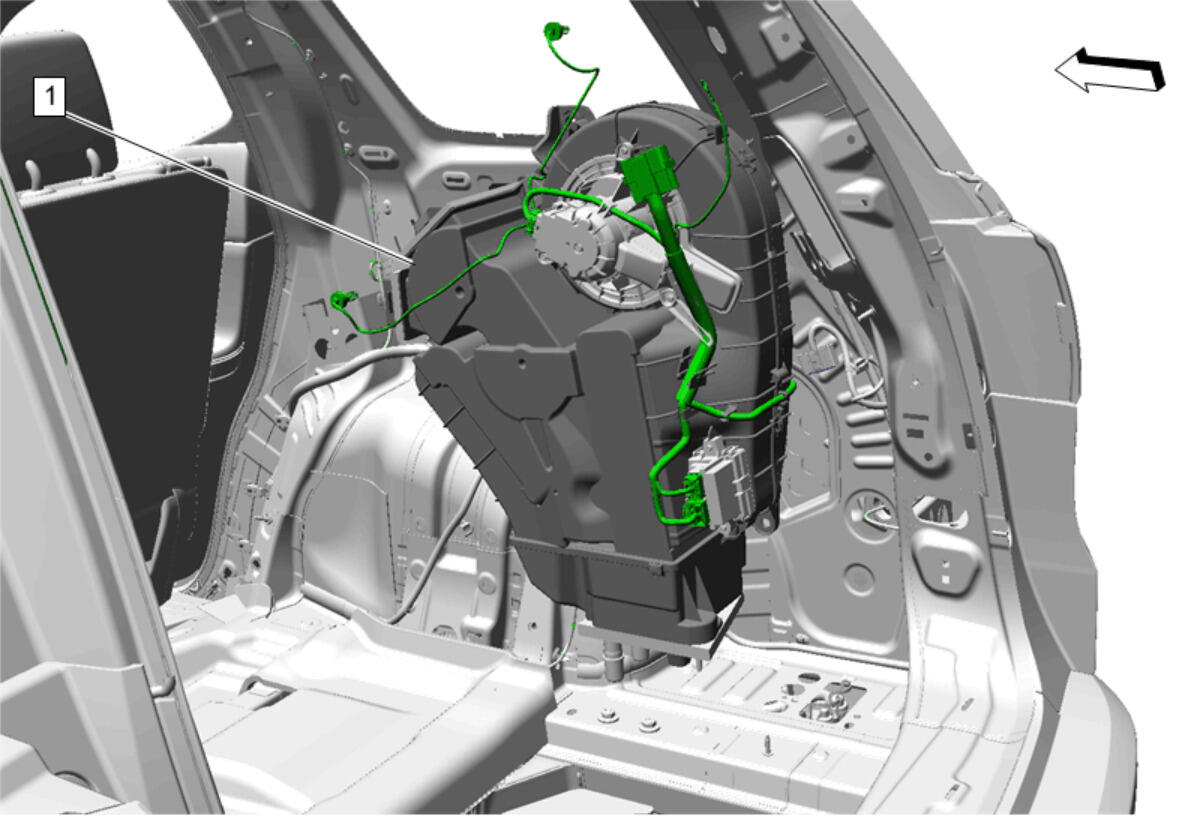

Fig 4: Auxiliary Air Conditioning Evaporator and Blower Module

Courtesy of GENERAL MOTORS COMPANY

Install Auxiliary Air Conditioning Evaporator and Blower Module (1). Refer to Auxiliary Air Conditioning (A/C) Evaporator and Blower Module Assembly Removal and Installation (C69)
