Removal Procedure
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
- Remove Auxiliary Air Conditioning Air Lower Duct (1). Refer to Auxiliary Air Conditioning Air Lower Duct Replacement (C69)
- It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Refer to Headlining Trim Panel Replacement (With C3U)Headlining Trim Panel Replacement (Without C3U)

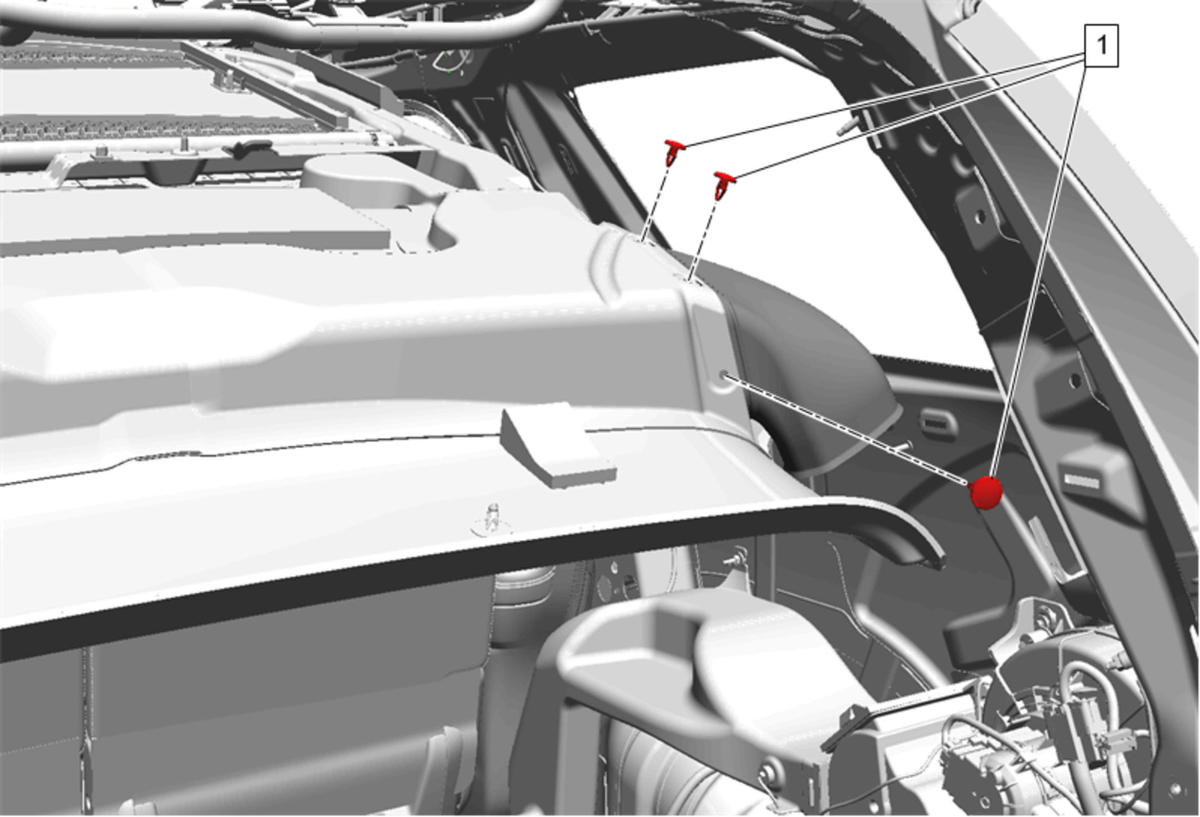

- Remove Push Pins (1) (Qty: 3)

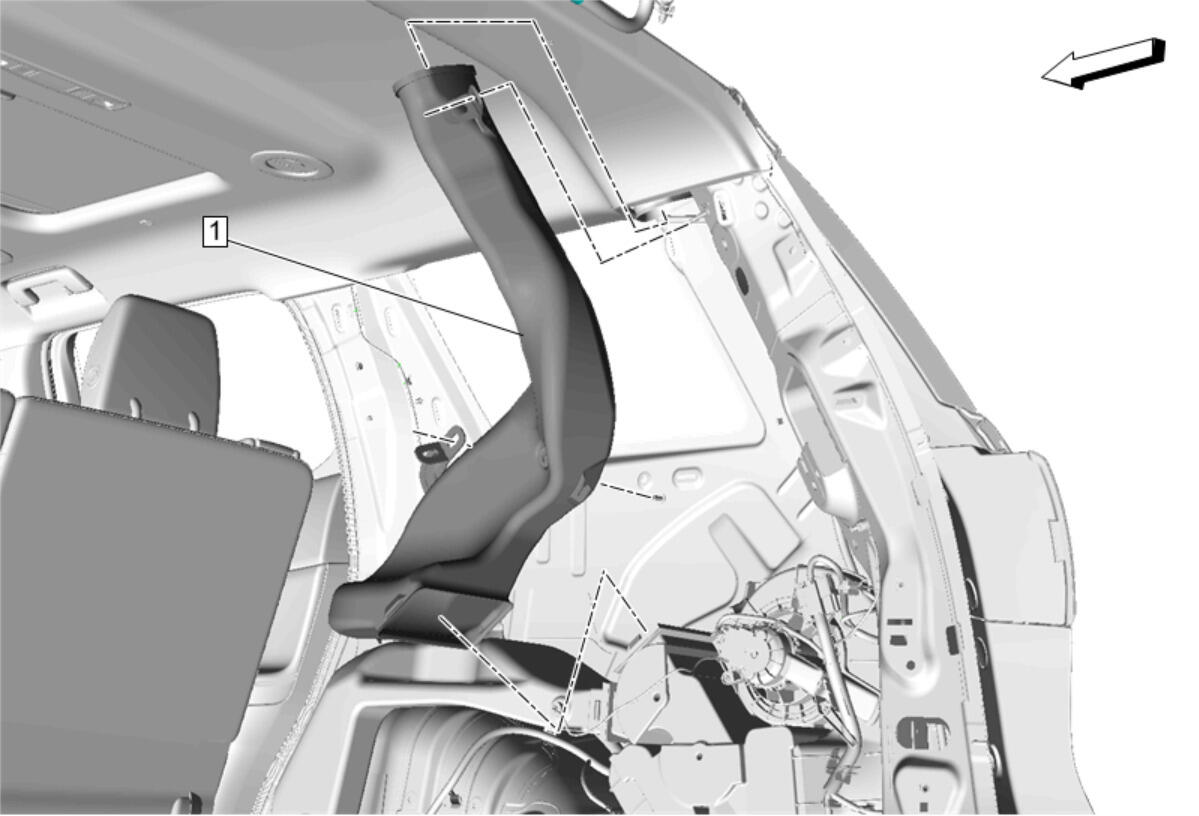

- Remove Auxiliary Air Conditioning Air Outlet Upper Duct (1)
