Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Quarter Lower Rear Trim Panel - Right Side. Refer to Quarter Lower Rear Trim Panel Replacement (Right Side With All Terrain)Quarter Lower Rear Trim Panel Replacement (Right Side Without All Terrain)

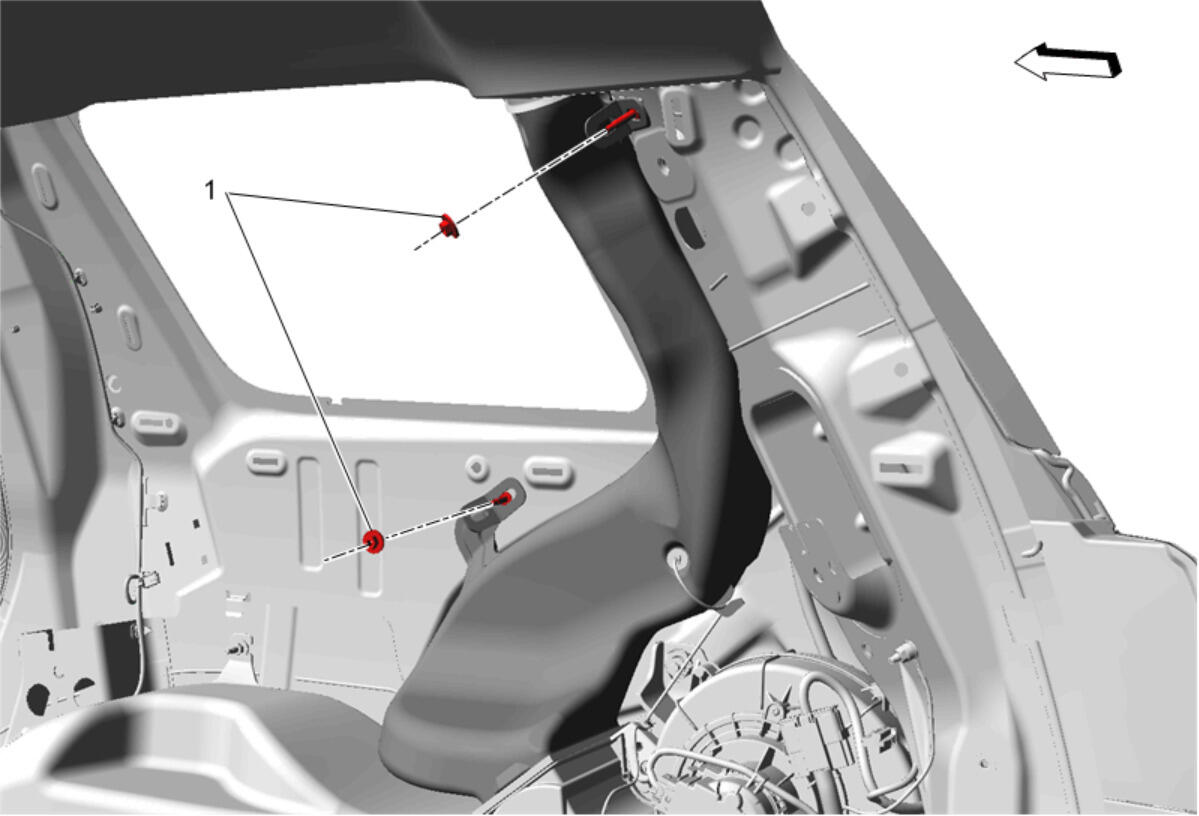

    2. Fig 1: Auxiliary Air Conditioning Air Lower Duct Nuts
    GM4377736Courtesy of GENERAL MOTORS COMPANY
  2. Remove Auxiliary Air Conditioning Air Lower Duct Nuts (1) (Qty: 2)
  3. Remove the auxiliary air conditioning air lower duct air temperature sensor from the auxiliary heater and air outlet duct.
    4. Fig 2: Auxiliary Air Conditioning Air Lower Duct
    GM4377744Courtesy of GENERAL MOTORS COMPANY
  4. Remove Auxiliary Air Conditioning Air Lower Duct (1)
