Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

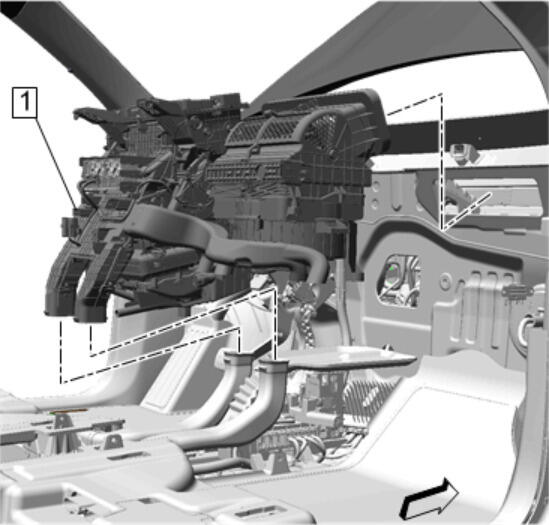

Fig 1: Heater And Air Conditioning Evaporator And Blower Module
GM4770555Courtesy of GENERAL MOTORS COMPANY
  1. Remove Heater and Air Conditioning Evaporator and Blower Module (1). Refer to Heater and Air Conditioning Evaporator and Blower Module Removal and Installation (C59) Heater and Air Conditioning Evaporator and Blower Module Removal and Installation (Without C59)

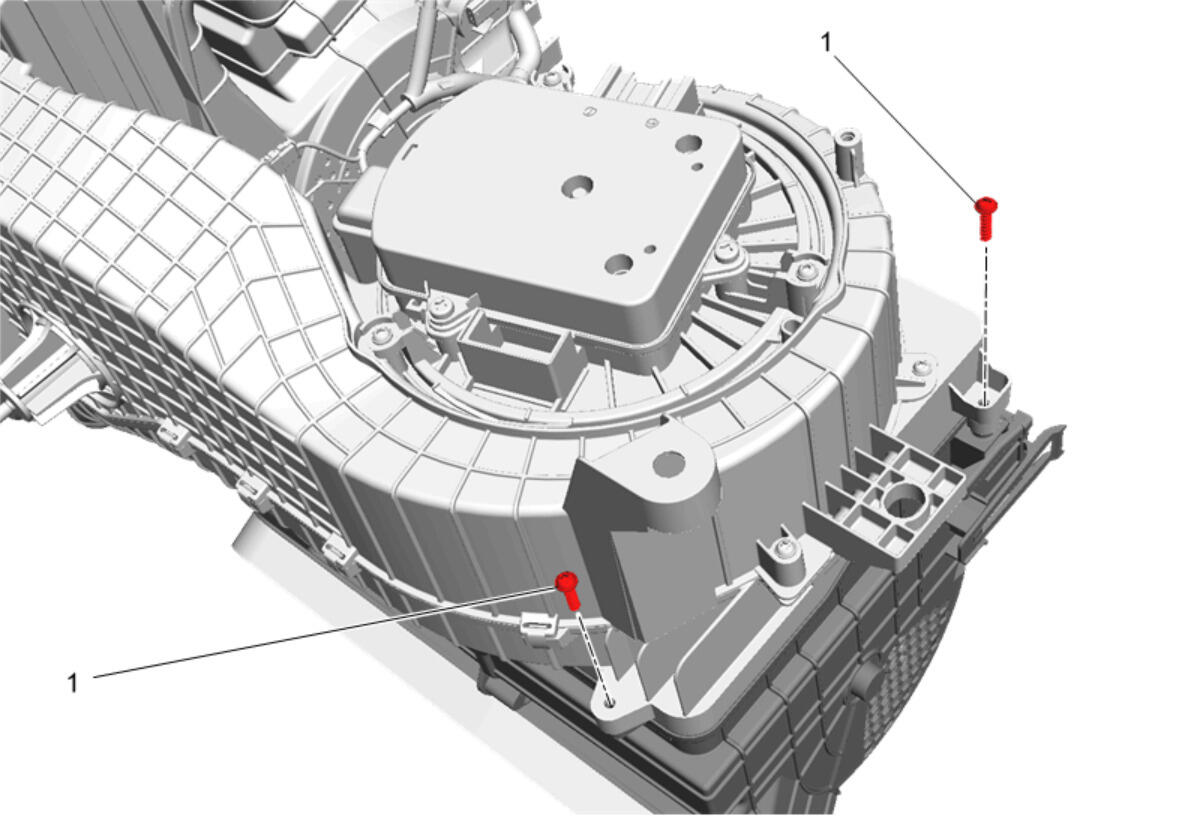

    2. Fig 2: Air Inlet Housing Bolts
    GM4297332Courtesy of GENERAL MOTORS COMPANY
  2. Remove Air Inlet Housing Bolts (1) (Qty: 2)

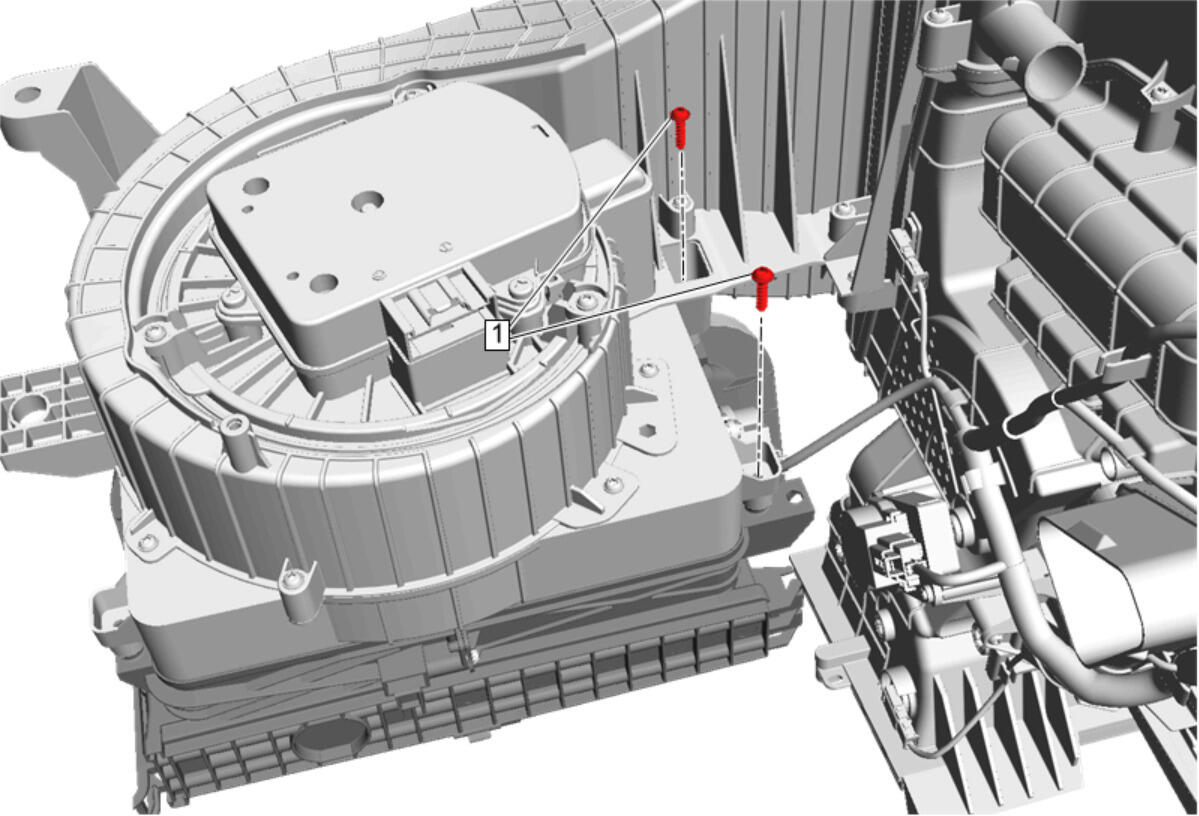

    3. Fig 3: Air Inlet Housing Bolts
    GM4297335Courtesy of GENERAL MOTORS COMPANY
  3. Remove Air Inlet Housing Bolts (1) (Qty: 2)
    4. Fig 4: Air Inlet Housing
    GM4297338Courtesy of GENERAL MOTORS COMPANY
  4. Remove Air Inlet Housing (1)
  5. Disconnect the electrical connector.
  6. Transfer components as necessary.
