Air Distributor Duct Adapter Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

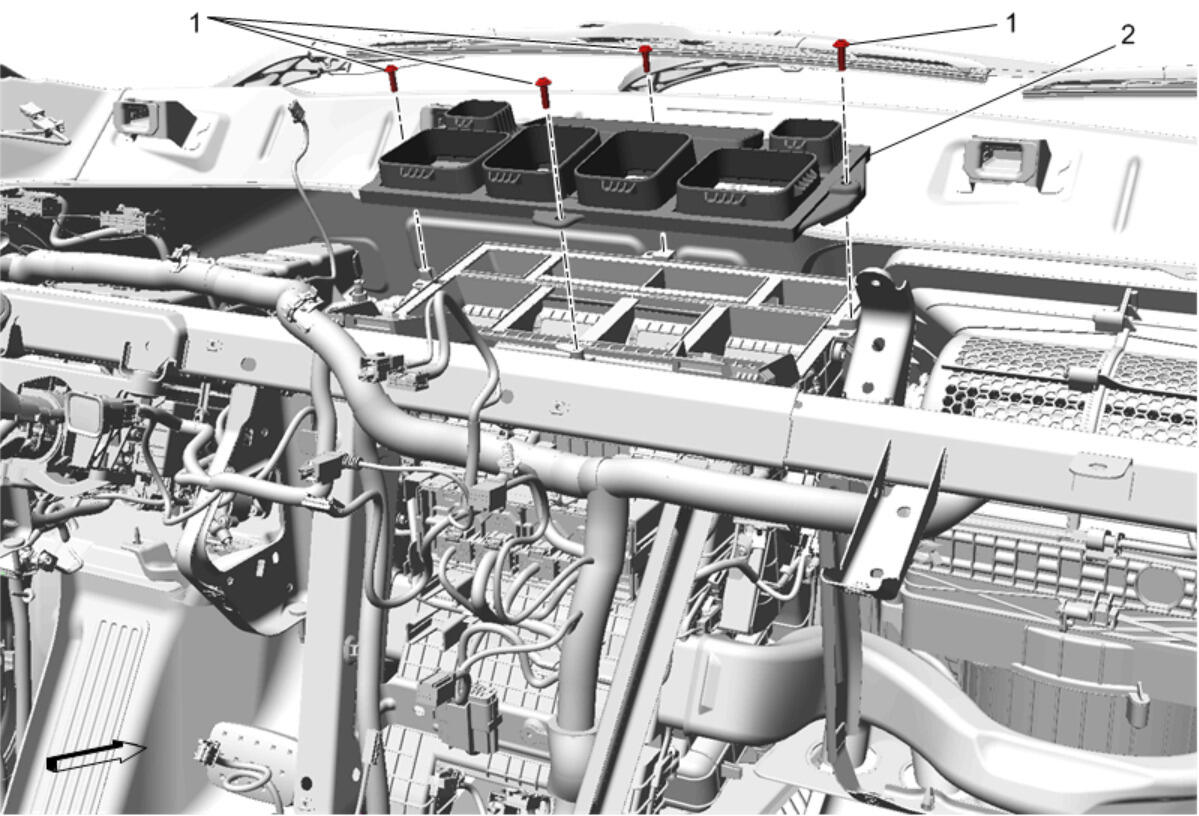

Fig 1: Air Distributor Duct Adapter
GM4375836Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove Instrument Panel Center Air Outlet Duct (Left). Refer to Instrument Panel Center Air Outlet Duct Replacement (Left)
  2. Remove Instrument Panel Center Air Outlet Duct (Right). Refer to Instrument Panel Center Air Outlet Duct Replacement (Right)
  3. Remove Instrument Panel Outer Air Outlet Duct - Left Side. Refer to Instrument Panel Outer Air Outlet Duct Replacement - Left Side
  4. Remove Instrument Panel Outer Air Outlet Duct - Right Side. Refer to Instrument Panel Outer Air Outlet Duct Replacement - Right Side
1 Air Distributor Duct Adapter Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Air Distributor Duct Adapter
