Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Refer to SAE J2913 Certified Electronic Leak Detectors Warning .

  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (R-1234yf)
  2. Remove Air Cleaner Outlet Duct. Refer to Air Cleaner Outlet Duct Replacement
    3. Fig 1: Engine Mount Brace And Bolts
    GM4326239Courtesy of GENERAL MOTORS COMPANY
  3. Remove Engine Mount Brace (2). Refer to Engine Mount Brace Replacement
    4. Fig 2: Air Conditioning Compressor and Condenser Hose, Nut And Sealing Washer
    GM4296577Courtesy of GENERAL MOTORS COMPANY
  4. Remove Air Conditioning Compressor and Condenser Hose (2) @ Air Conditioning Refrigerant Heat Exchanger. Refer to Air Conditioning Compressor and Condenser Hose Replacement (LCV)

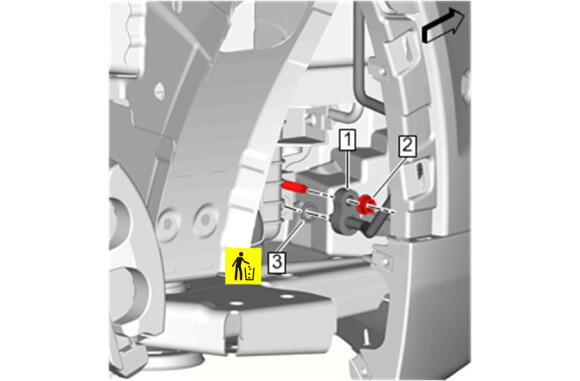

    5. Fig 3: Air Conditioning Refrigerant Heat Exchanger, Nut And Sealing Washer
    GM4296645Courtesy of GENERAL MOTORS COMPANY
  5. Remove Air Conditioning Refrigerant Heat Exchanger Nut (2) @ Air Conditioning Condenser
  6. Remove Air Conditioning Refrigerant Heat Exchanger (1) @ Air Conditioning Condenser
  7. Remove and DISCARD the sealing washer (3). Refer to Air Conditioning System Seal Replacement

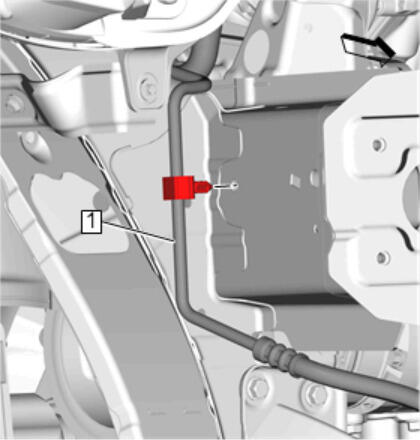

    8. Fig 4: Air Conditioning Refrigerant Heat Exchanger
    GM4311727Courtesy of GENERAL MOTORS COMPANY
  8. Remove Air Conditioning Refrigerant Heat Exchanger (1) @ Front Compartment Side Rail

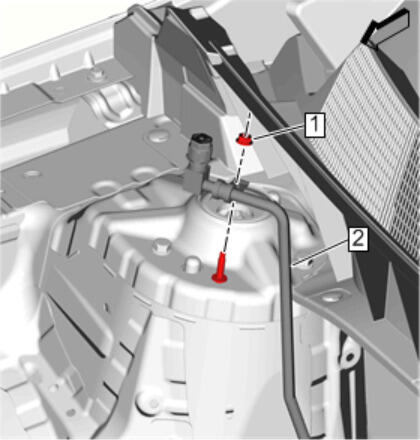

    9. Fig 5: Air Conditioning Refrigerant Heat Exchanger And Nut
    GM4296637Courtesy of GENERAL MOTORS COMPANY
  9. Remove Air Conditioning Refrigerant Heat Exchanger Nut (1) @ Front Wheelhouse Panel
  10. Remove Air Conditioning Refrigerant Heat Exchanger (2) @ Front Wheelhouse Panel

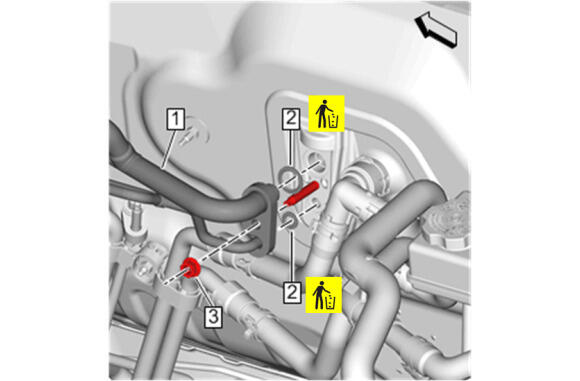

    11. Fig 6: Air Conditioning Refrigerant Heat Exchanger, Nut And Sealing Washers
    GM4373996Courtesy of GENERAL MOTORS COMPANY
  11. Remove Air Conditioning Refrigerant Heat Exchanger Nut (3) @ Air Conditioning Evaporator Thermal Expansion Valve
  12. Remove Air Conditioning Refrigerant Heat Exchanger (1) @ Air Conditioning Evaporator Thermal Expansion Valve
  13. Remove and DISCARD the sealing washers (2) (Qty: 2)

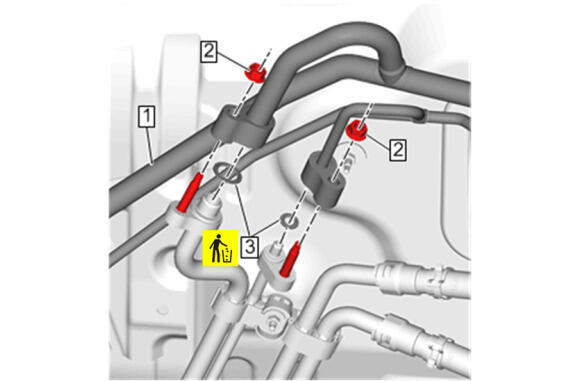

    14. Fig 7: Air Conditioning Refrigerant Heat Exchanger, Nuts And Sealing Washers
    GM4374000Courtesy of GENERAL MOTORS COMPANY
  14. Remove Air Conditioning Refrigerant Heat Exchanger Nuts (2) (Qty: 2) @ Auxiliary Air Conditioning Evaporator Intermediate Tube
  15. Remove Air Conditioning Refrigerant Heat Exchanger (1) @ Auxiliary Air Conditioning Evaporator Intermediate Tube
  16. Remove and DISCARD the sealing washers (3) (Qty: 2)

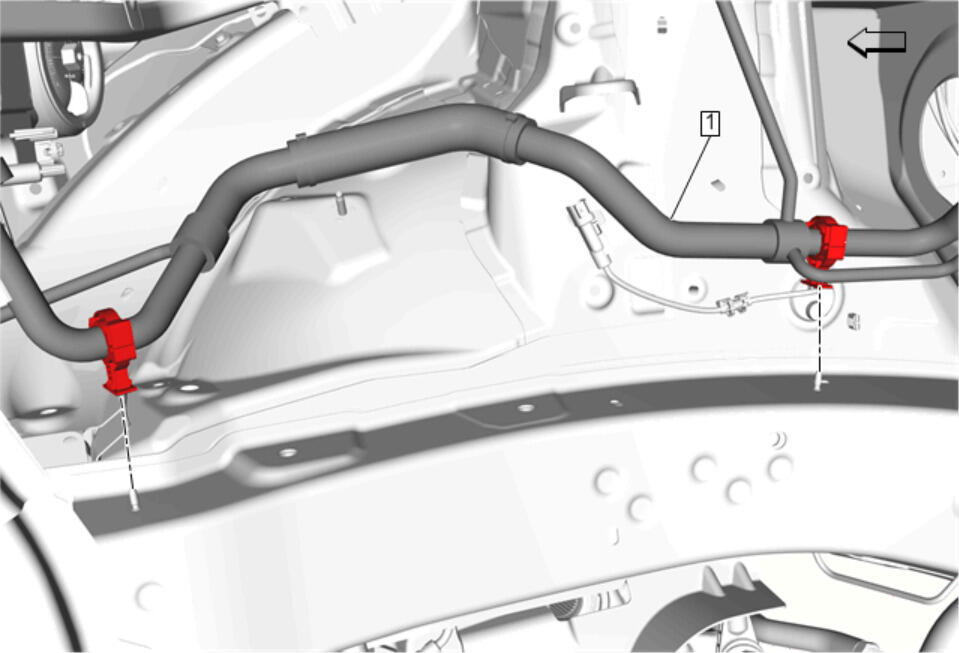

    17. Fig 8: Air Conditioning Refrigerant Heat Exchanger
    GM4311726Courtesy of GENERAL MOTORS COMPANY
  17. Remove Air Conditioning Refrigerant Heat Exchanger (1) @ Front Compartment Side Rail
  18. Remove the air conditioning refrigerant heat exchanger from the vehicle.
