Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

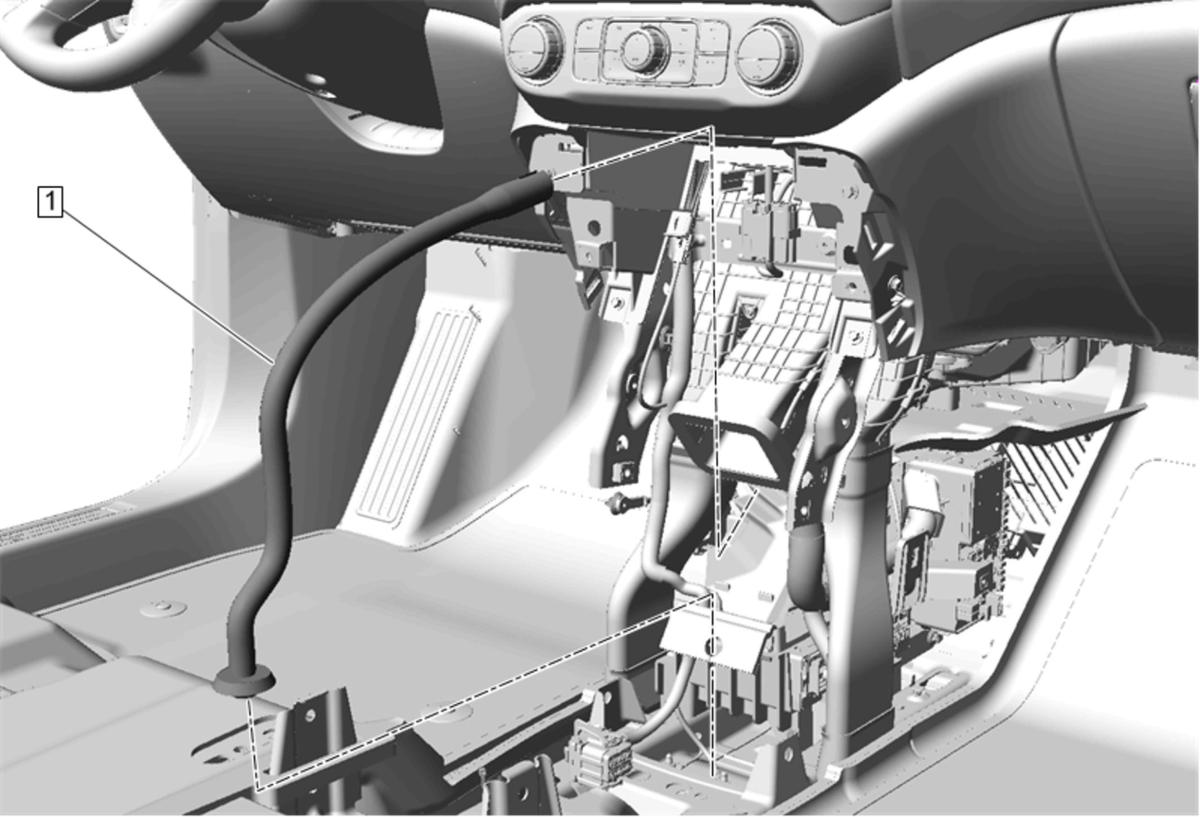

    Fig 1: Air Conditioning Evaporator and Blower Module Drain Hose
    GM4490984Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to HVAC Module Drain Tube Caution .

  1. Install the air conditioning evaporator and blower module drain hose (1) into the body control module shield hole.
  2. Install Air Conditioning Evaporator and Blower Module Drain Hose (1)
  3. Remove the absorbent shop clothes/towels covering the electrical components.

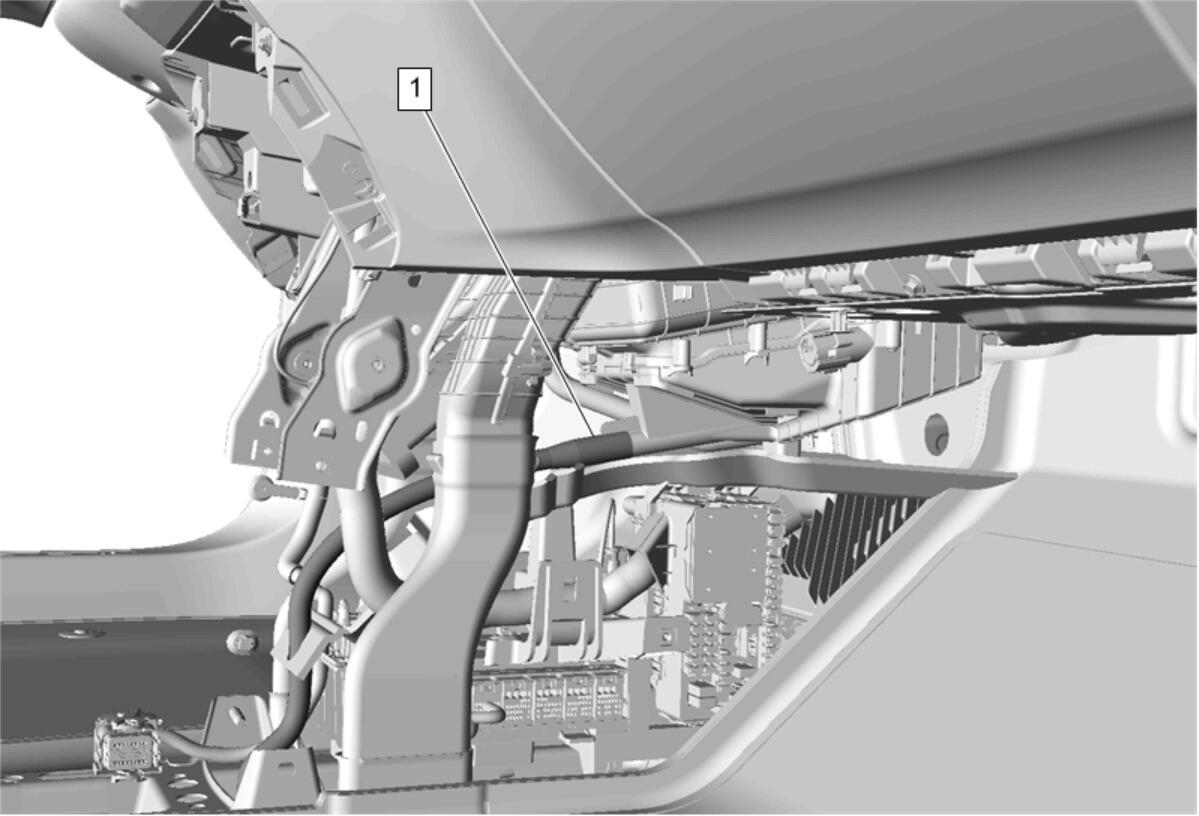

    4. Fig 2: Air Conditioning Evaporator And Blower Module Drain Hose
    GM4382107Courtesy of GENERAL MOTORS COMPANY
  4. Install the air conditioning evaporator and blower module drain hose (1) onto the air conditioning evaporator and blower module drain port.
    5. Fig 3: Front Floor Console Rear Air Duct
    GM4381090Courtesy of GENERAL MOTORS COMPANY
  5. Install Front Floor Console Rear Air Duct (1). Refer to Front Floor Console Rear Air Duct Replacement (Front C59) Front Floor Console Rear Air Duct Replacement (Rear C59)
