Air Conditioning Evaporator Thermal Expansion Valve Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

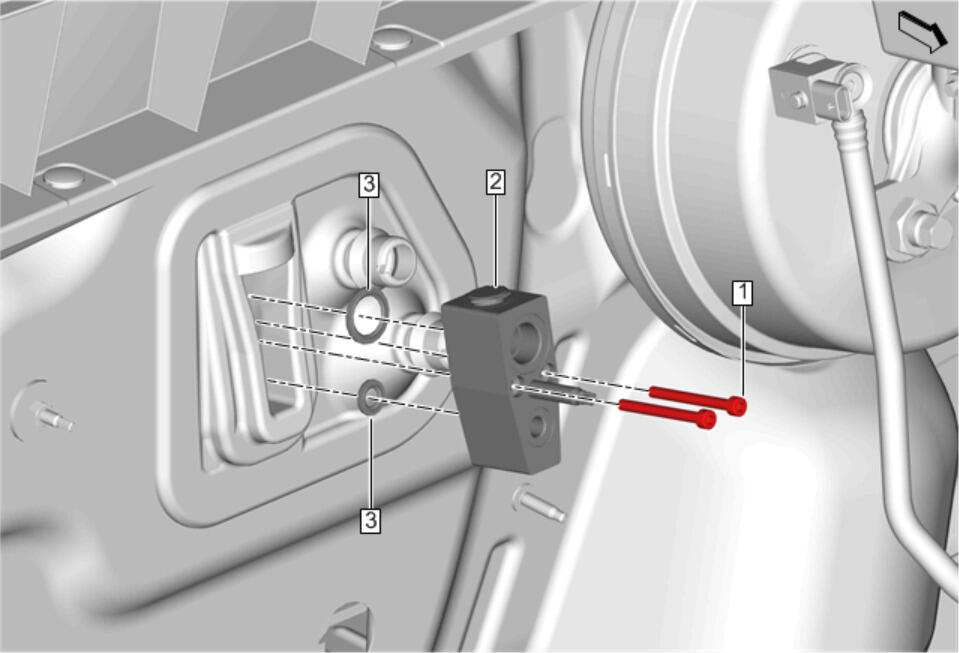

Fig 1: Air Conditioning Evaporator Thermal Expansion Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Technicians must only use a SAE J2913 certified electronic leak detector when checking for leaks in an R-1234yf A/C refrigerant system. Other, non-certified, leak detection devices could serve as ignition sources in the presence of hydrocarbons or other flammable refrigerants. Failure to follow these precautions may cause personal injury and/or damage to the vehicle or its components. Preliminary Procedures Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (R-1234yf) Remove Air Conditioning Refrigerant Heat Exchanger @ Air Conditioning Evaporator Thermal Expansion Valve. Refer to Air Conditioning Refrigerant Heat Exchanger Replacement (LGX With C69) Air Conditioning Refrigerant Heat Exchanger Replacement (LCV)
1	Air Conditioning Evaporator Thermal Expansion Valve Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Air Conditioning Evaporator Thermal Expansion Valve
3	Air Conditioning Evaporator Thermal Expansion Valve Seal (Qty: 2) Procedure Remove and DISCARD the sealing washers. Refer to Air Conditioning System Seal Replacement .
