Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Refer to SAE J2913 Certified Electronic Leak Detectors Warning .

  1. Recover the refrigerant. Refrigerant Recovery and Recharging (R-1234yf)
  2. Remove Intake Air Duct. Refer to Intake Air Duct Replacement

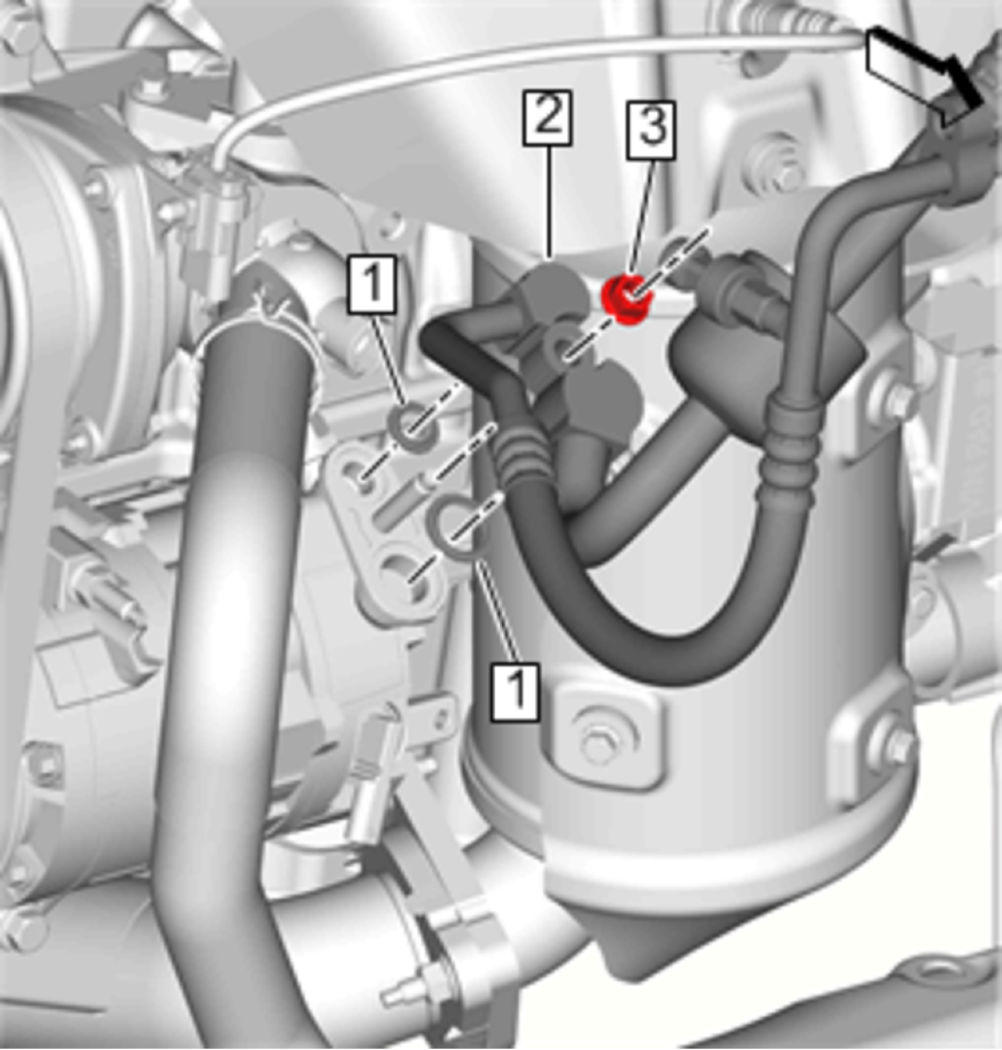

    3. Fig 1: Air Conditioning Compressor and Condenser Hose
    GM4377724Courtesy of GENERAL MOTORS COMPANY
  3. Remove Air Conditioning Compressor Nut (1) @ Air Conditioning Compressor
  4. Remove Air Conditioning Compressor and Condenser Hose (2) @ Air Conditioning Compressor
  5. Remove and DISCARD the sealing washers (1) (Qty: 2). Refer to Air Conditioning System Seal Replacement

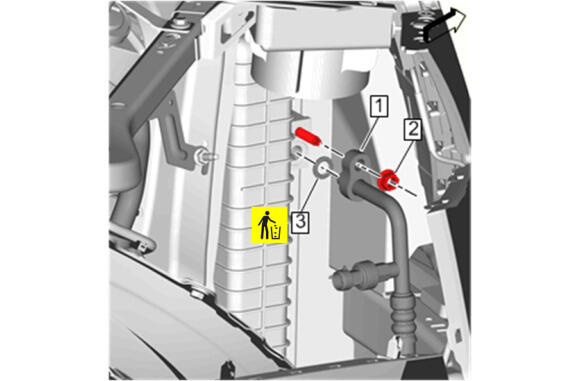

    6. Fig 2: Air Conditioning Compressor and Condenser Hose, Nut And Sealing Washer
    GM4296603Courtesy of GENERAL MOTORS COMPANY
  6. Disconnect all electrical connectors.
  7. Remove Air Conditioning Compressor and Condenser Hose Nut (2) @ Air Conditioning Condenser
  8. Remove Air Conditioning Compressor and Condenser Hose (1) @ Air Conditioning Condenser
  9. Remove and DISCARD the sealing washer (3).

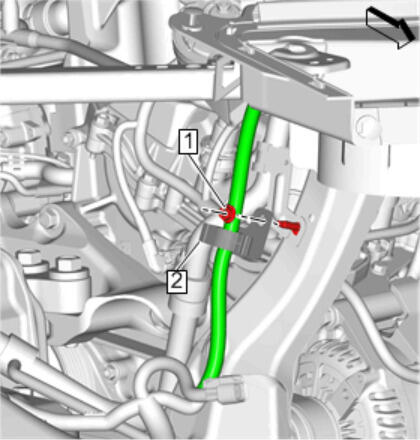

    10. Fig 3: Air Conditioning Compressor and Condenser Hose Clamp Bracket Nut And Forward Lamp Wiring Harness
    GM4296557Courtesy of GENERAL MOTORS COMPANY
  10. Remove Air Conditioning Compressor and Condenser Hose Clamp Bracket Nut (1) @ Forward Lamp Wiring Harness (2)
  11. Position Forward Lamp Wiring Harness (2) aside

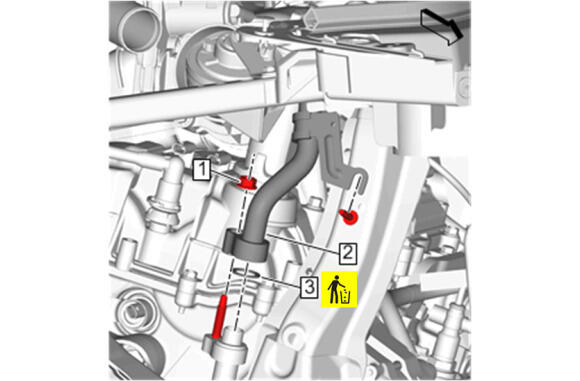

    12. Fig 4: Air Conditioning Compressor and Condenser Hose, Nut And Sealing Washer
    GM4296577Courtesy of GENERAL MOTORS COMPANY
  12. Remove Air Conditioning Compressor and Condenser Hose Nut (1) @ Air Conditioning Compressor and Condenser Hose
  13. Remove Air Conditioning Compressor and Condenser Hose (2) @ Air Conditioning Refrigerant Heat Exchanger
  14. Remove and DISCARD the sealing washer (3).
  15. Remove the air conditioning compressor and condenser hose (2) from the vehicle.
