Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

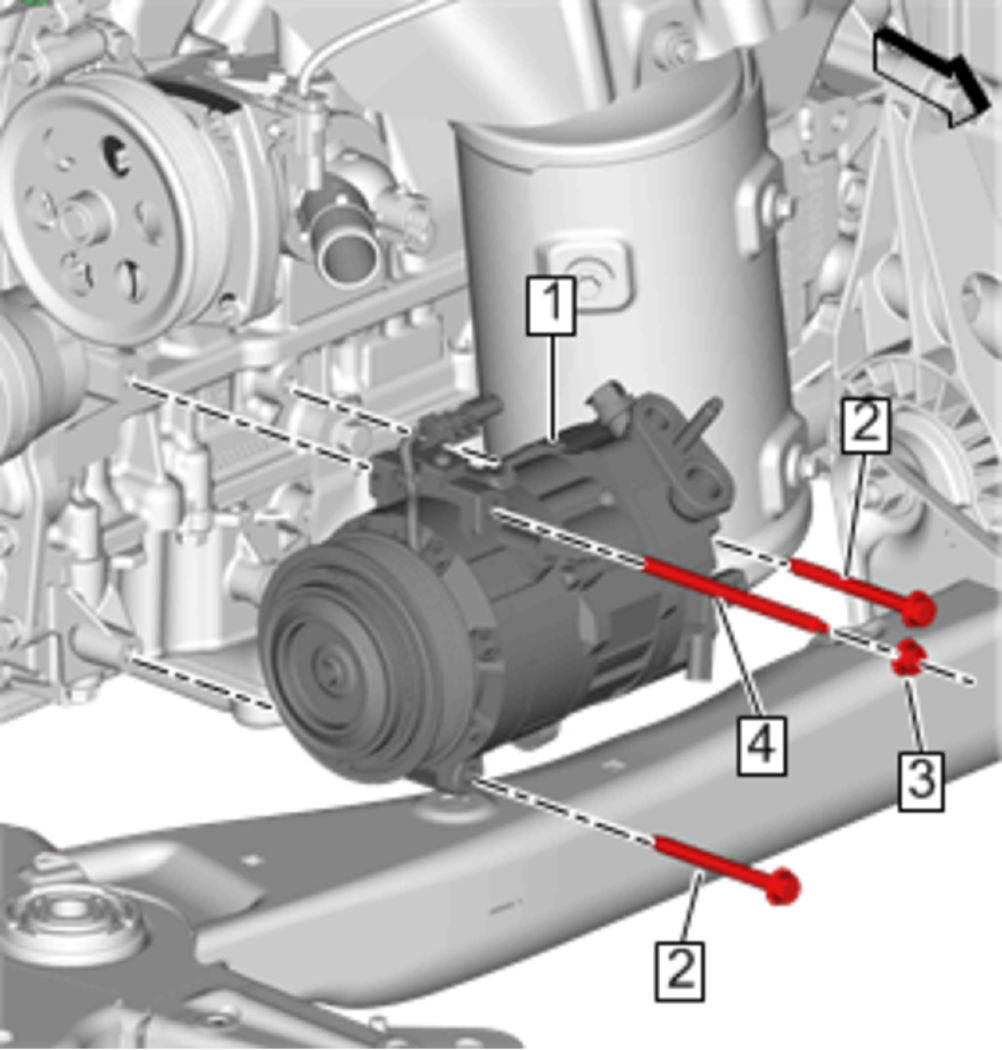

    Fig 1: Air Conditioning Compressor, Nut, Bolt And Stud
    GM4377513Courtesy of GENERAL MOTORS COMPANY
  1. Install the air conditioning compressor (1) to the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install and tighten Air Conditioning Compressor Stud (4) @ Air Conditioning Compressor (1) to 9 N.m (80 lb in)
  3. Install and tighten Air Conditioning Compressor Bolt (2) (Qty: 2) @ Air Conditioning Compressor (1) to 22 N.m (16 lb ft)
  4. Install and tighten Air Conditioning Compressor Nut (3) @ Air Conditioning Compressor (1) to 22 N.m (16 lb ft)
  5. Connect the electrical connectors.
    6. Fig 2: Air Conditioning Compressor and Condenser Hose
    GM4377724Courtesy of GENERAL MOTORS COMPANY
  6. Install Air Conditioning Compressor and Condenser Hose (2) @ Air Conditioning Compressor. Refer to Air Conditioning Compressor and Condenser Hose Replacement (LCV)
    7. Fig 3: Exhaust Front Pipe And Gasket
    GM4360853Courtesy of GENERAL MOTORS COMPANY
  7. Install Exhaust Front Pipe (1). Refer to Exhaust Front Pipe Replacement (LCV)
  8. Install Drive Belt @ Air Conditioning Compressor. Refer to Drive Belt Replacement
  9. Recharge the refrigerant. Refer to Refrigerant Recovery and Recharging (R-1234yf)
