Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.

WARNING:

Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury.

Fig 1: Exhaust Manifold Heat Shield

GM2908509

Courtesy of GENERAL MOTORS COMPANY

Remove Exhaust Manifold Heat Shield (2) - Exhaust Manifold Heat Shield Replacement (LCV)
Remove Heated Oxygen Sensor-Sensor 2 - Heated Oxygen Sensor Replacement - Sensor 2

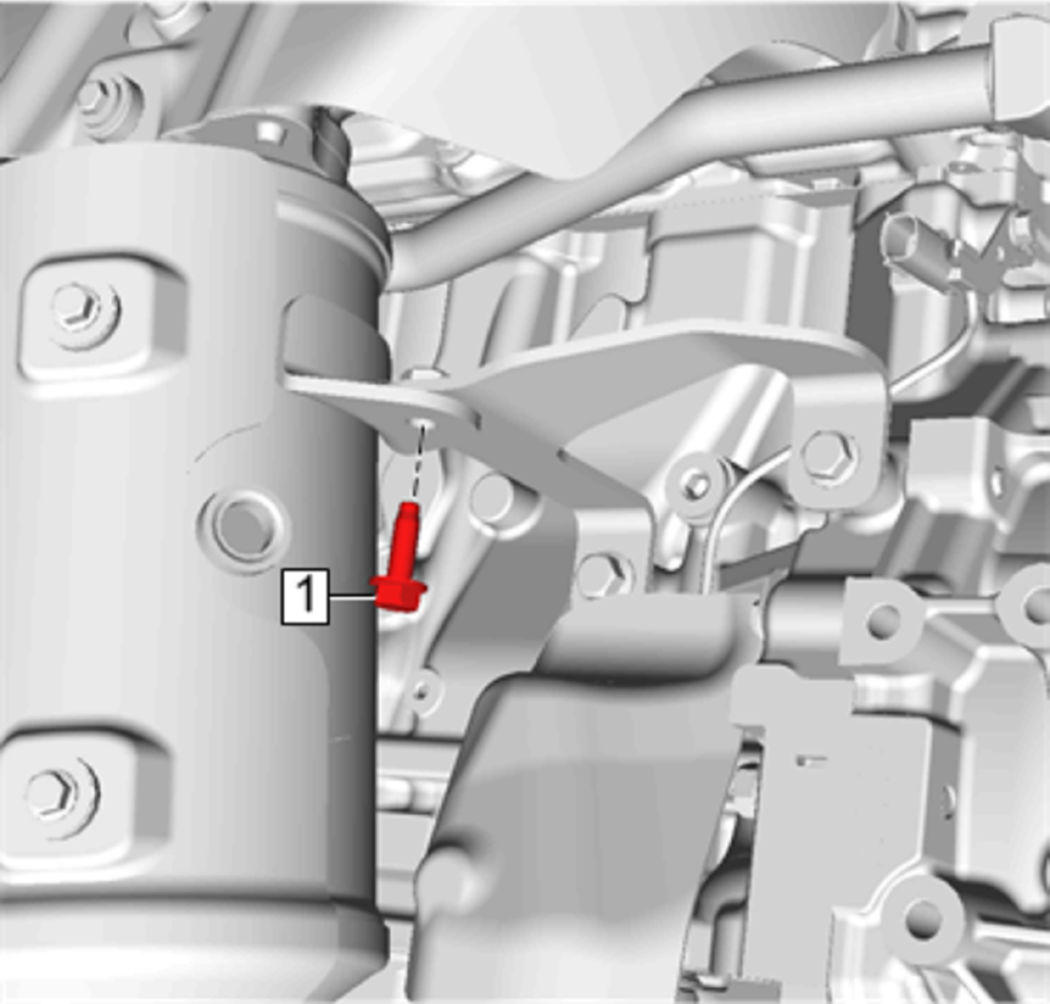

Fig 2: Catalytic Converter Brace Bracket Bolt

GM4364664

Courtesy of GENERAL MOTORS COMPANY

Remove Catalytic Converter Brace Bracket Bolt (1)
Raise and support the vehicle. Lifting and Jacking the Vehicle

Fig 3: Exhaust Front Pipe And Gasket

GM4360853

Courtesy of GENERAL MOTORS COMPANY

Remove Exhaust Front Pipe (1) - Exhaust Front Pipe Replacement (LCV)

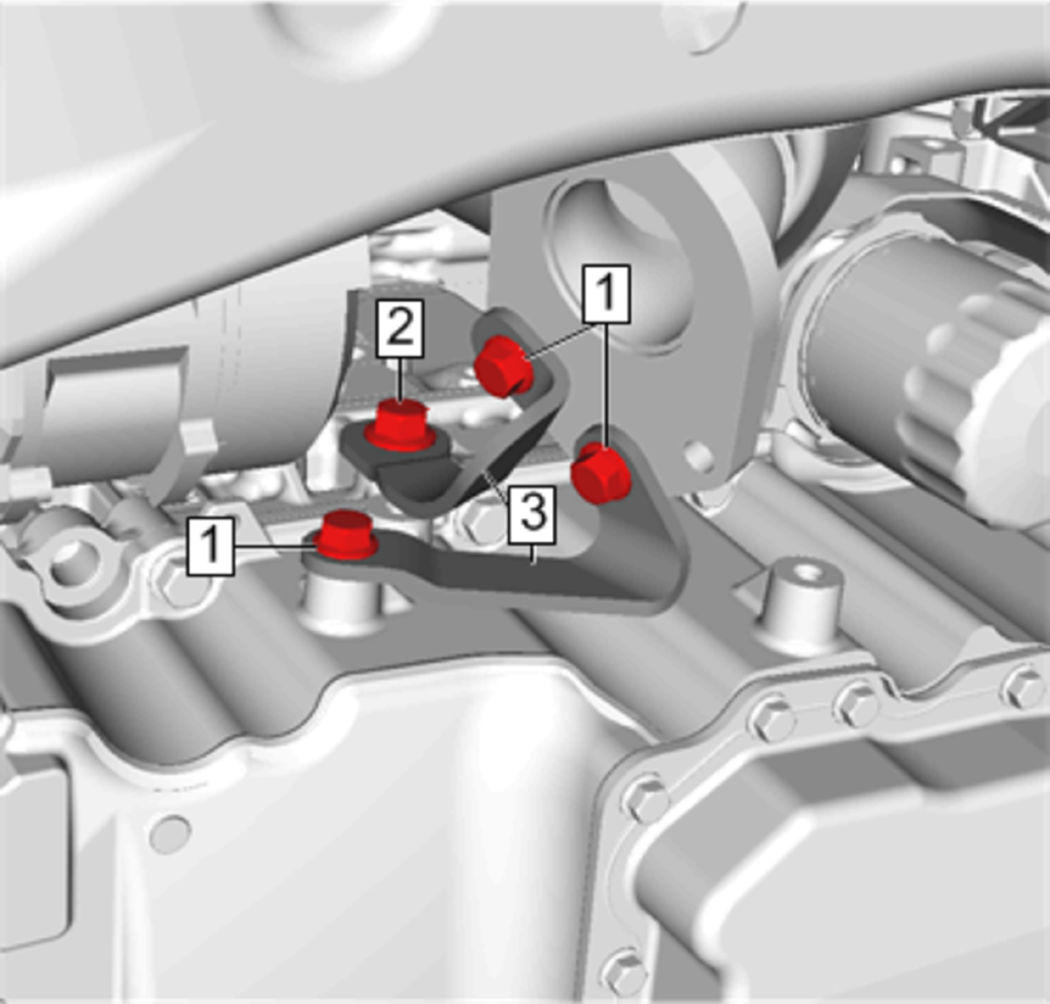

Fig 4: Catalytic Converter Brace Bracket-Lower

GM4364612

Courtesy of GENERAL MOTORS COMPANY

Remove Catalytic Converter Brace Bracket-Lower (3) - Catalytic Converter Brace Bracket Replacement (Upper, LCV) Catalytic Converter Brace Bracket Replacement (Lower, LCV)
Lower the vehicle.

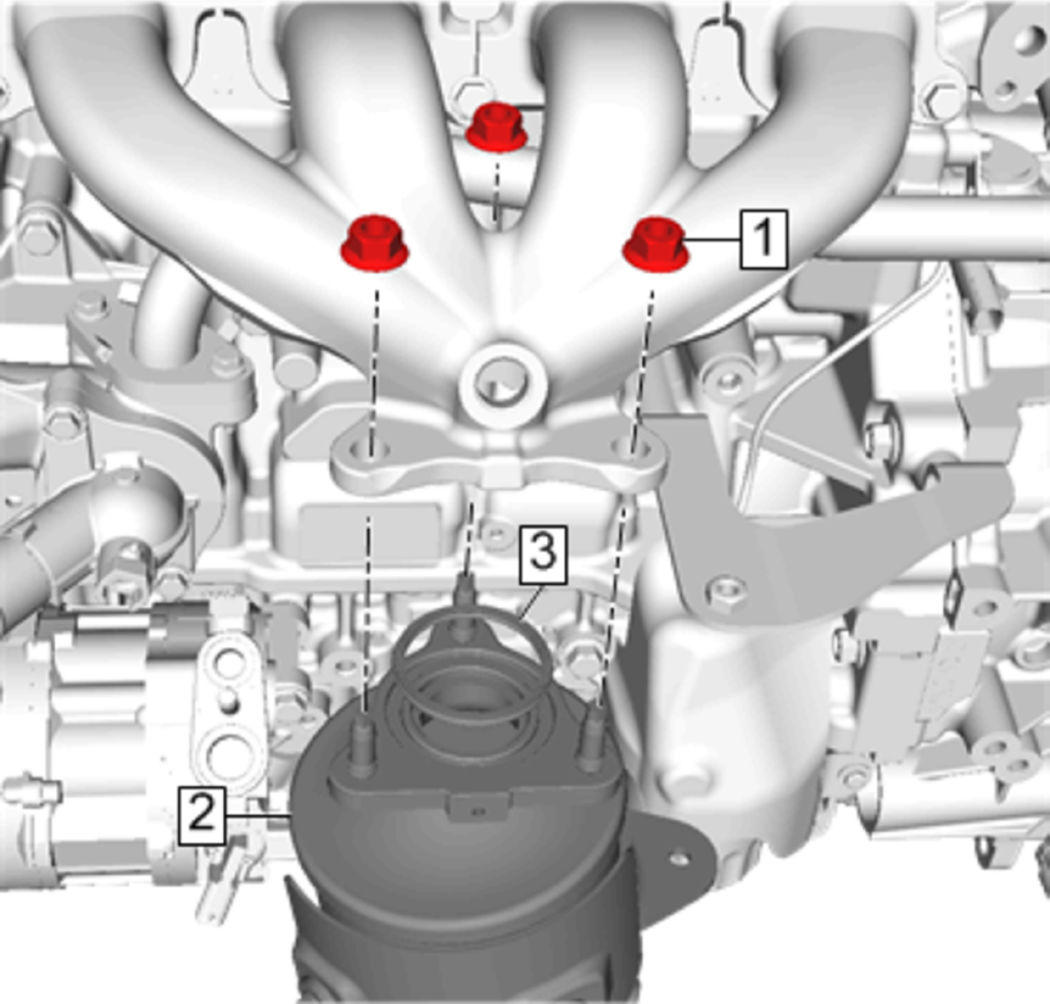

Fig 5: Catalytic Converter Nut

GM4364734

Courtesy of GENERAL MOTORS COMPANY

Remove Catalytic Converter Nut (1)
Remove Warm Up Three-Way Catalytic Converter (2)
Remove Catalytic Converter Gasket (3) and DISCARD
