Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

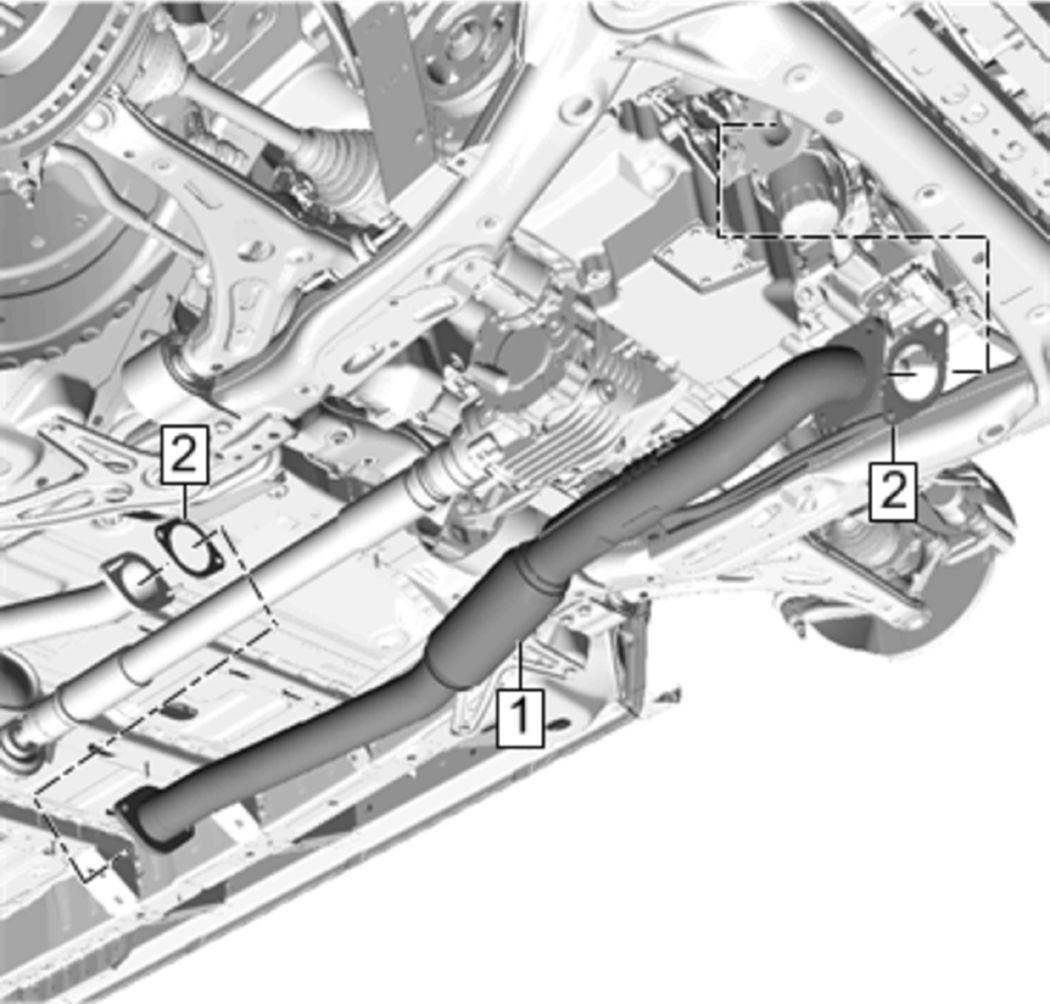

Fig 1: Exhaust Front Pipe And Gasket

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Install a NEW gasket.

Install Exhaust Gasket (2)
Install Exhaust Front Pipe (1)

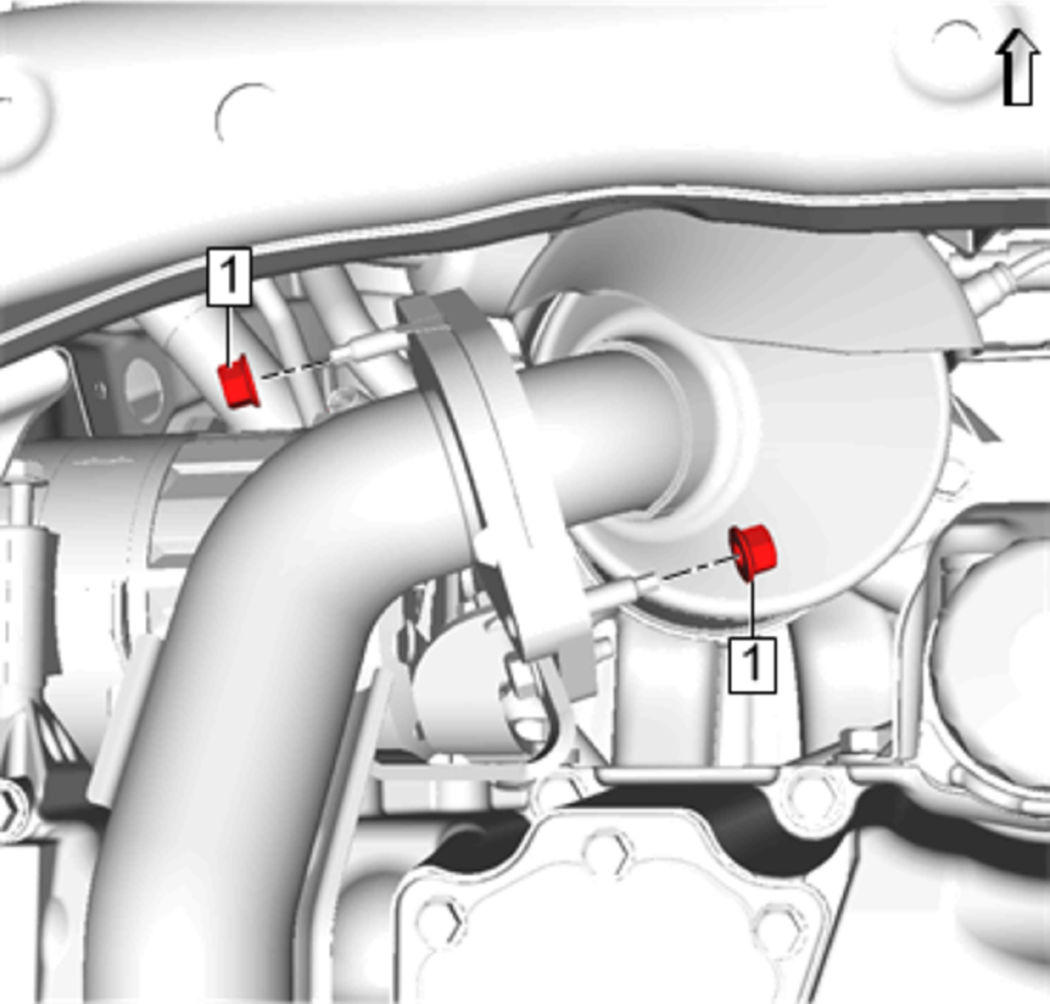

Fig 2: Exhaust Front Pipe Nut

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Install Exhaust Front Pipe Nut (1) and tighten 22 N.m (16 lb ft)

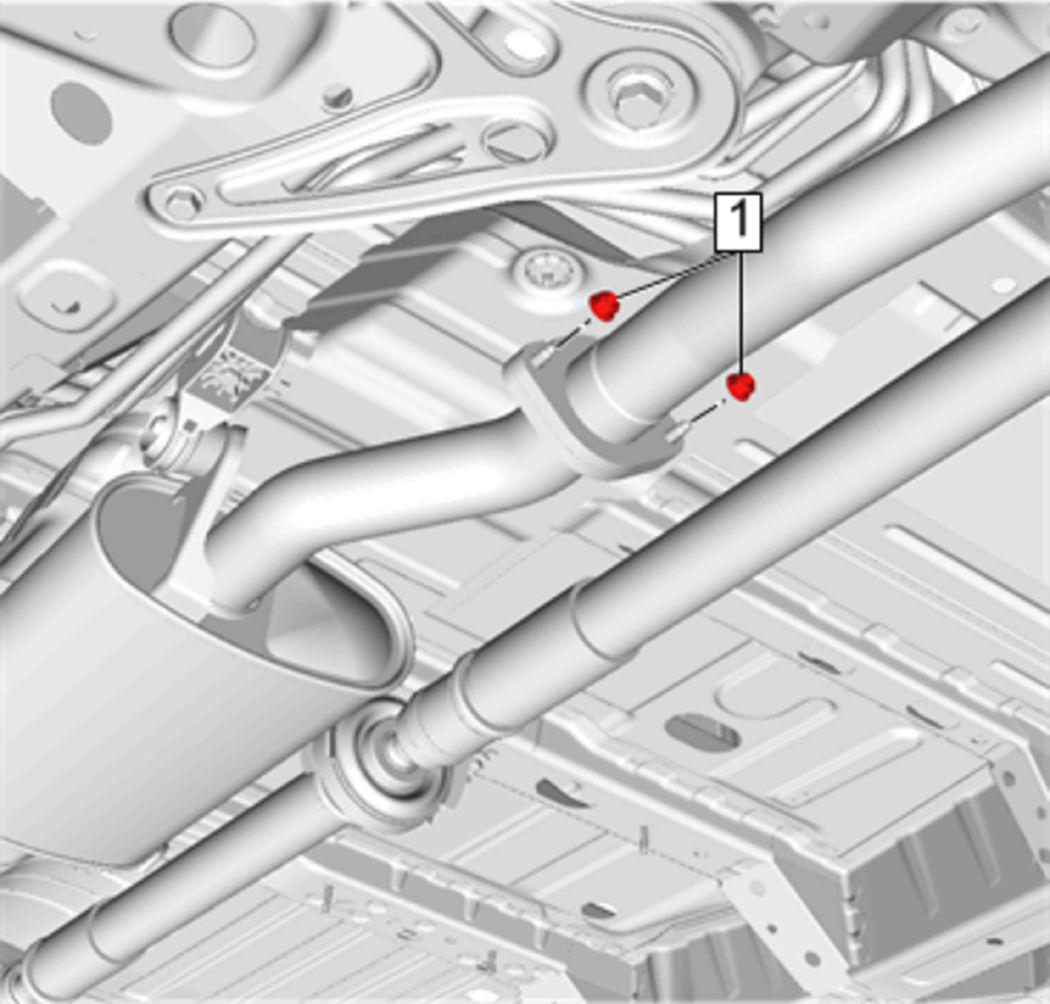

Fig 3: Catalytic Converter Nut

Courtesy of GENERAL MOTORS COMPANY

Install Catalytic Converter Nut (1) and tighten 22 N.m (16 lb ft)

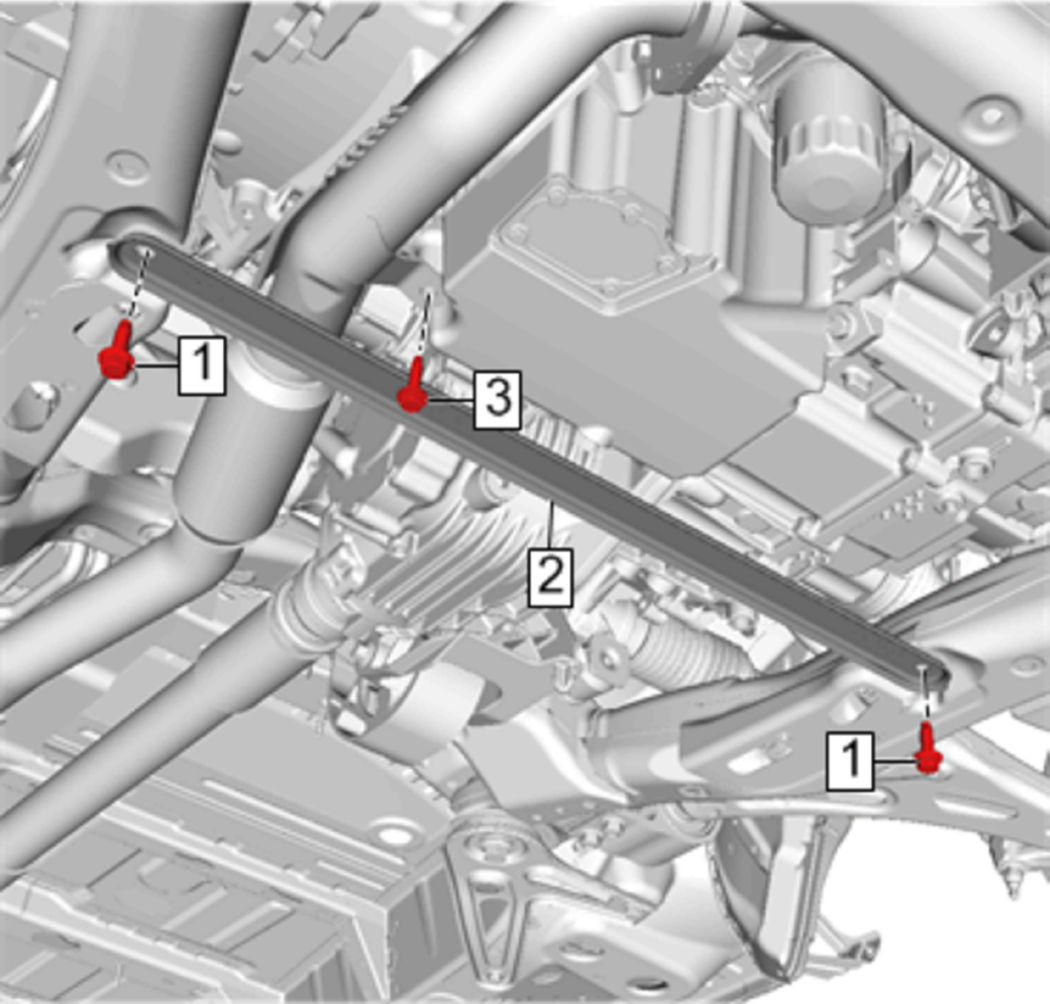

Fig 4: Front Cradle Brace And Bolt

Courtesy of GENERAL MOTORS COMPANY

Install Exhaust Front Pipe Bracket Bolt (3) and tighten 22 N.m (16 lb ft)
Install Front Cradle Brace (2)
Install Front Cradle Brace Bolt (1) and tighten 58 N.m (43 lb ft)
Start the engine and check for exhaust leaks.
