Catalytic Converter Heat Shield Replacement (Bank 1, LGX)
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

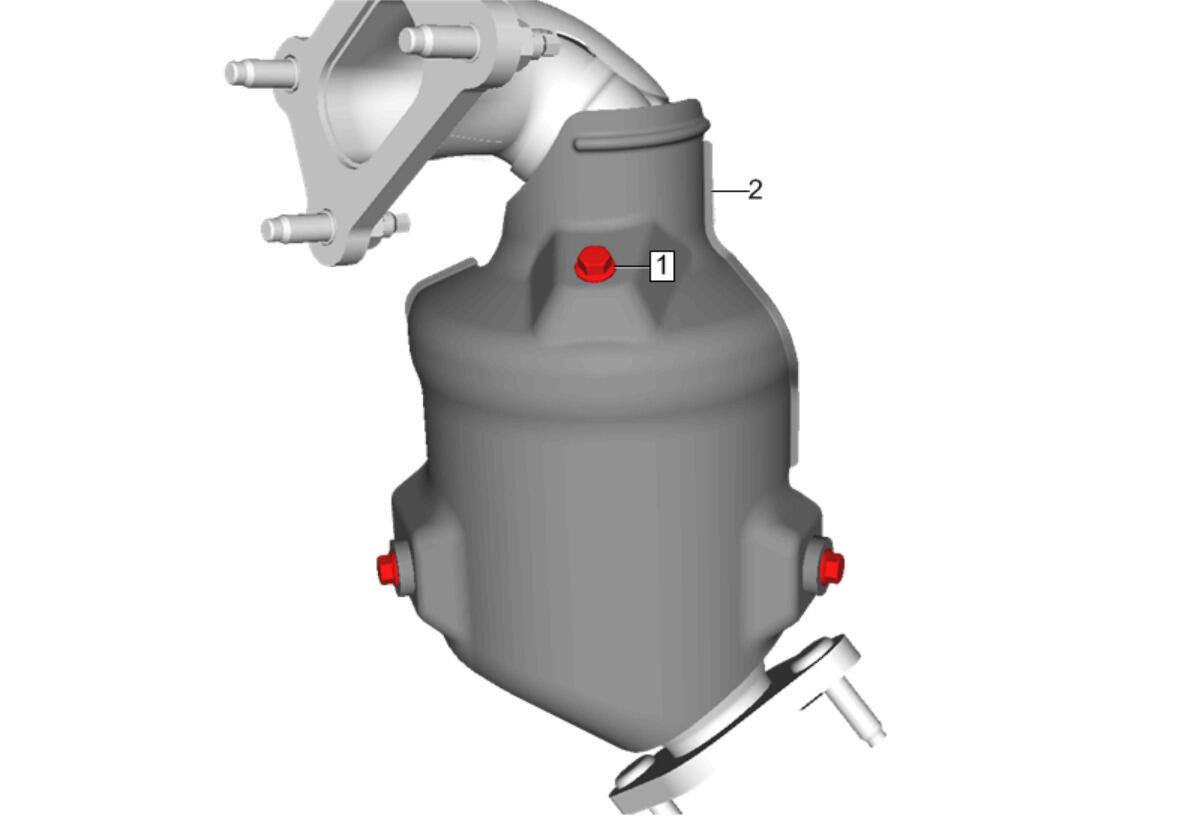

| Callout | Component Name |
|---|---|
|
WARNING:
In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.
WARNING:
Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury. |
|
| 1 | Catalytic Converter Heat Shield Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Catalytic Converter Heat Shield |
