Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation

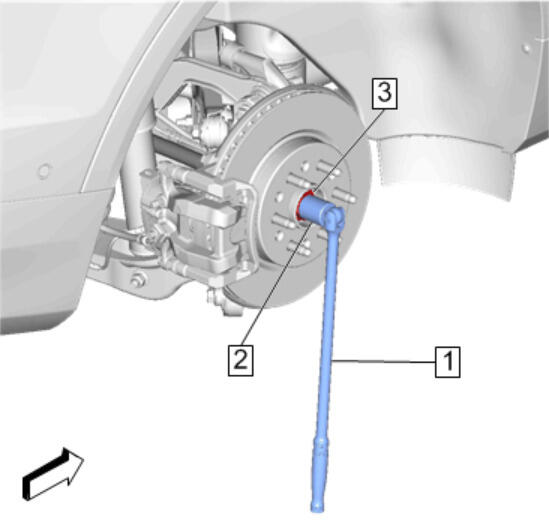

    2. Fig 1: Breaker Bar, Proper Size Socket And Wheel Drive Shaft Nut
    GM4354782Courtesy of GENERAL MOTORS COMPANY
  2. With the aid of an assistant holding the brake pedal down, use a breaker bar (1) and the proper size socket (2) to loosen the wheel drive shaft nut (3).
    3. Fig 2: Wheel Drive Shaft Nut
    GM4354802Courtesy of GENERAL MOTORS COMPANY
  3. Remove and DISCARD Wheel Drive Shaft Nut (1)

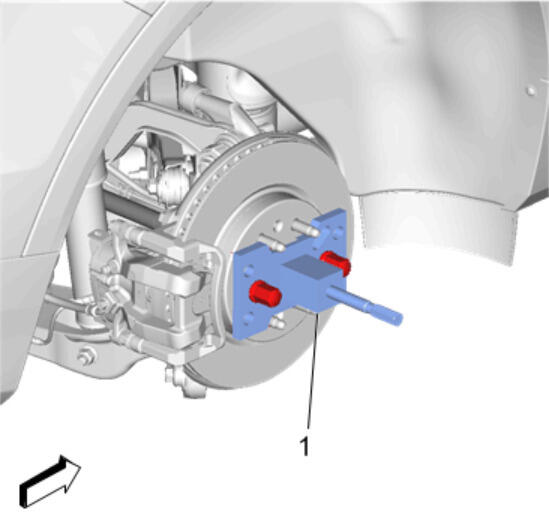

    4. Fig 3: Separating Wheel Drive Shaft From Wheel Bearing/Hub
    GM4354817Courtesy of GENERAL MOTORS COMPANY
  4. Using the J-45859  hub puller (1), separate the wheel drive shaft from the wheel bearing/hub assembly.
  5. Remove Rear Knuckle. Refer to Knuckle Replacement
    6. Fig 4: Wheel Drive Shaft And Differential Carrier
    GM4354912Courtesy of GENERAL MOTORS COMPANY
  6. Use a suitable flat bladed tool to separate the wheel drive shaft (1) from the differential carrier assembly (2).
    7. Fig 5: Wheel Drive Shaft
    GM4354915Courtesy of GENERAL MOTORS COMPANY
  7. Remove Wheel Drive Shaft (1)
    8. Fig 6: Wheel Drive Shaft Retaining Ring And O-ring
    GM4295750Courtesy of GENERAL MOTORS COMPANY
  8. Remove and DISCARD O-Ring (2) @ Wheel Drive Shaft
  9. Remove and DISCARD Retaining Ring (1) @ Wheel Drive Shaft
