Disassembly Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Rear Wheel Drive Shaft. Refer to Rear Wheel Drive Shaft Replacement - Left Side , or Rear Wheel Drive Shaft Replacement - Right Side
  2. Place the wheel drive shaft horizontally in a bench vise.
    3. Fig 1: CV Boot Clamps
    GM4412812Courtesy of GENERAL MOTORS COMPANY
  3. Using a side cutter or other suitable tool, remove the CV boot clamps (1) from the inner CV boot.

    DISCARD the clamps.

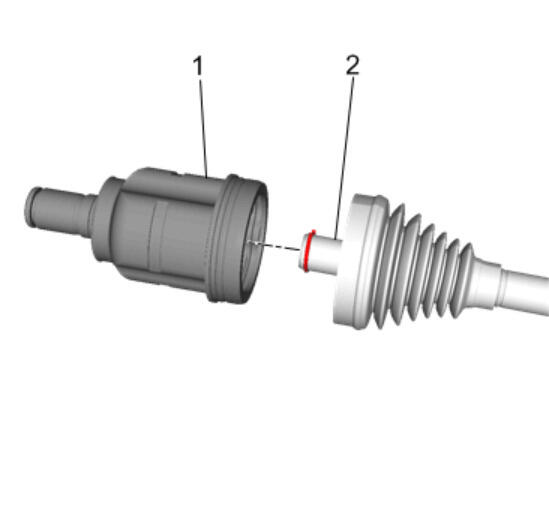

    4. Fig 2: CV Joint And Wheel Drive Shaft
    GM4412822Courtesy of GENERAL MOTORS COMPANY
  4. Using a suitable driver and a hammer, remove the CV joint (1) from the wheel drive shaft (2).
    5. Fig 3: CV Boot And Wheel Drive Shaft
    GM4417988Courtesy of GENERAL MOTORS COMPANY
  5. Remove the CV boot (1) from the wheel drive shaft (2).

    DISCARD the boot.

    6. Fig 4: Wheel Drive Shaft And Retaining Ring
    GM4316228Courtesy of GENERAL MOTORS COMPANY
  6. Remove and DISCARD Retaining Ring (1) @ Wheel Drive Shaft (2)
    7. Fig 5: Retaining Ring And O-Ring
    GM4418614Courtesy of GENERAL MOTORS COMPANY
  7. Remove and DISCARD Retaining Ring (1)
  8. Remove and DISCARD O-Ring (2)
