Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
    2. Fig 1: Propeller Shaft
    GM4498827Courtesy of GENERAL MOTORS COMPANY
  2. Using a paint pen or a suitable marker, mark the relationship of the propeller shaft (2) to the differential carrier assembly (3). This will be used as a visual reference for proper engagement location after re-installation.
    3. Fig 2: Propeller Shaft
    GM4499065Courtesy of GENERAL MOTORS COMPANY
  3. Using a paint pen or a suitable marker, mark the relationship of the propeller shaft (2) to the power transfer unit (3). This will be used as a visual reference for proper engagement location after re-installation.
  4. Support the front of the differential carrier assembly with a jack stand.
    5. Fig 3: Differential Carrier Front Bolt
    GM4291618Courtesy of GENERAL MOTORS COMPANY
  5. Remove Differential Carrier Front Bolt (1)
  6. Lower the front of the differential carrier assembly to provide additional clearance between the propeller shaft and the fuel tank.

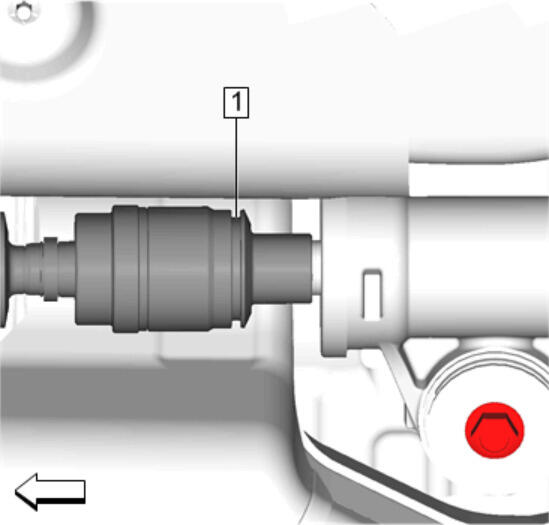

    7. Fig 4: Propeller Shaft Service Groove
    GM4535474Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Use only the GM Special Tools Specified to remove the Propeller Shaft from the Differential Carrier Assembly. Prying on these components with any other tools may cause damage to either part which will result in improper performance or future failure.

  7. Note the correct location of the propeller shaft service groove (1) prior to installing the DT-51329-A remover.

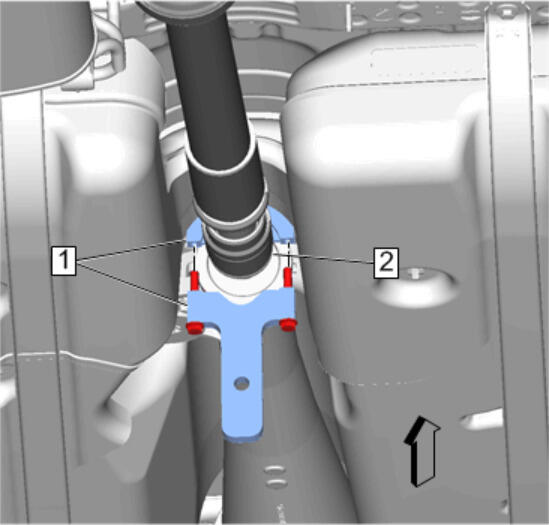

    8. Fig 5: Remover At Service Groove
    GM4498844Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    When removing the propeller shaft, DO NOT pry against the Rear Differential Module Slinger. Prying against the Rear Differential Module Slinger may cause damage to the slinger, which will result in unnecessary replacement of the Rear Differential Module Slinger.

  8. Install the DT-51329-A remover (1) at the service groove (2) located on the rear differential carrier assembly.

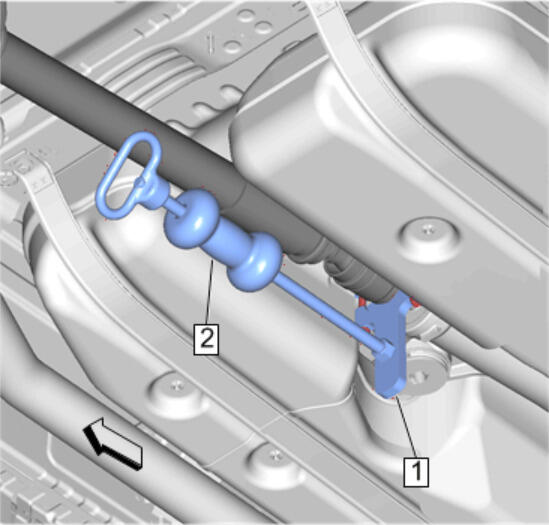

    9. Fig 6: Slide Hammer And Special Tool
    GM4498853Courtesy of GENERAL MOTORS COMPANY
  9. Install the slide hammer (2) to the DT-51329-A remover (1).

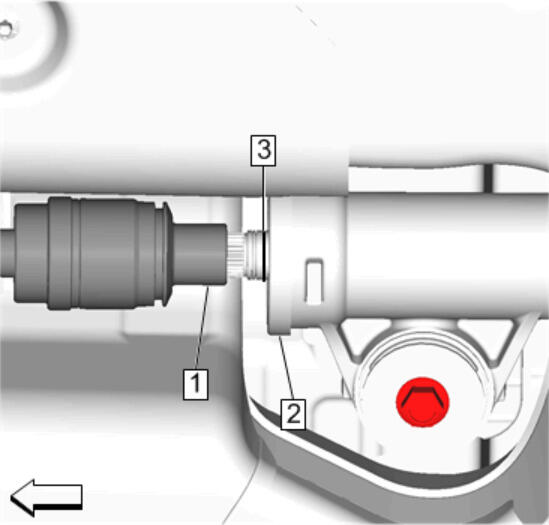

    10. Fig 7: Propeller Shaft And Rear Differential Carrier Assembly
    GM4498873Courtesy of GENERAL MOTORS COMPANY
  10. Using the DT-51329-A and the slide hammer, separate the propeller shaft (1) from the rear differential carrier assembly (2).
  11. Loosely Install Differential Carrier Front Bolt
  12. Using a suitable jack stand, support the propeller shaft.

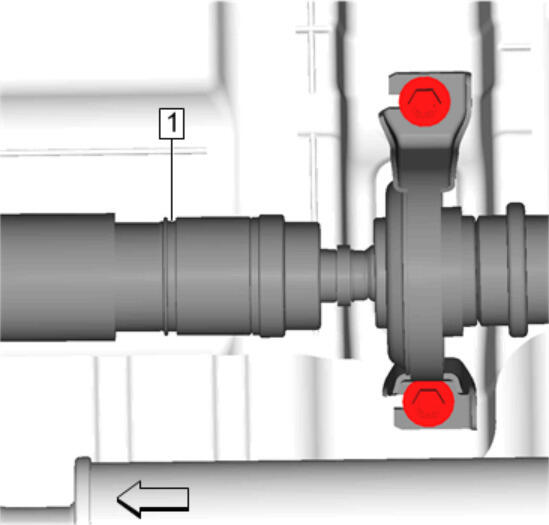

    13. Fig 8: Propeller Shaft Service Groove
    GM4535482Courtesy of GENERAL MOTORS COMPANY
  13. Note the correct location of the propeller shaft service groove (1) prior to installing the DT-51329-A remover.

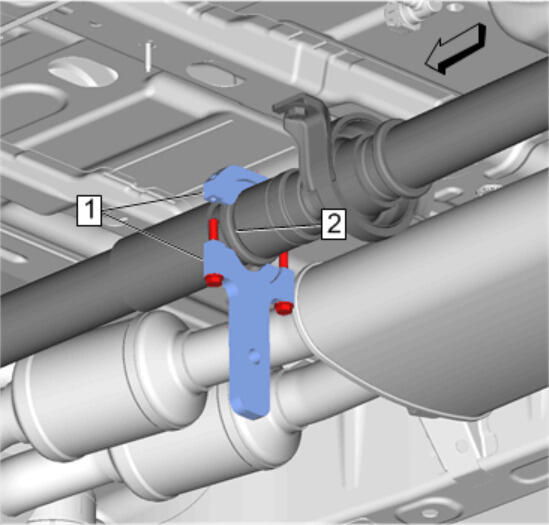

    14. Fig 9: Service Groove And Special Tool
    GM4528795Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    When removing the propeller shaft, DO NOT pry against the Power Transfer Unit. The Power Transfer Unit will be damaged if it is pried against, which will result in unnecessary replacement of the Power Transfer Unit.

  14. Install the DT-51329-A (1) remover at the service groove (2) located just forward of the propeller shaft bearing bracket.

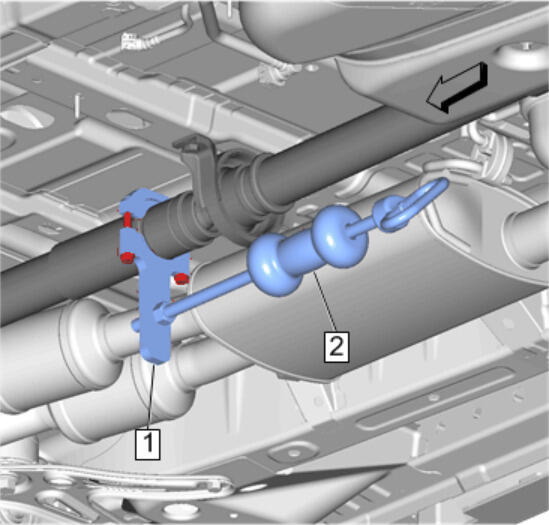

    15. Fig 10: Slide Hammer And Special Tool
    GM4528849Courtesy of GENERAL MOTORS COMPANY
  15. Install the slide hammer (2) to the DT-51329-A remover (1).

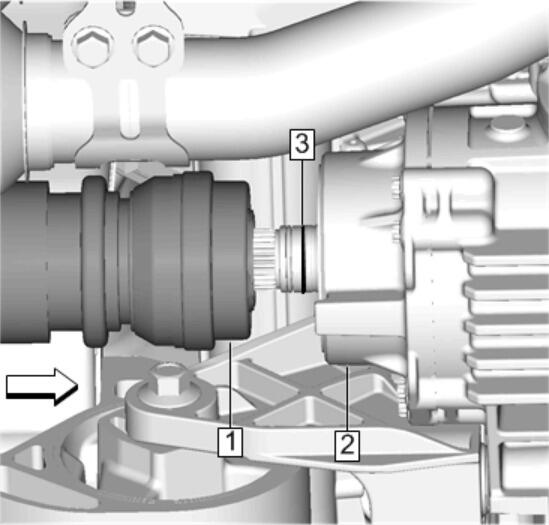

    16. Fig 11: Propeller Shaft And Power Transfer Unit
    GM4499074Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Use only the GM Special Tools Specified to remove the Propeller Shaft from the Differential Carrier Assembly. Prying on these components with any other tools may cause damage to either part which will result in improper performance or future failure.

  16. Using the DT-51329-A and the slide hammer, separate the propeller shaft (1) from the power transfer unit (2).
    17. Fig 12: Rear Propeller Shaft Bearing Bracket Bolt
    GM4291125Courtesy of GENERAL MOTORS COMPANY
  17. Remove Rear Propeller Shaft Bearing Bracket Bolt (1)
    18. Fig 13: Propeller Shaft
    GM4291128Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    When servicing the propeller shaft, support both ends of the propeller shaft evenly to limit the movement of propeller shaft joints to a maximum of 10 degrees. Do not let the propeller shaft hang unsupported at any time, as it will cause damage to the propeller shaft boots

    NOTE:

    Due to the weight and length of the propeller shaft, not allowing excessive movement of the joints may be difficult during removal and installation. It is recommended to use the aid of an assistant to remove and install the propeller shaft.

  18. Remove Propeller Shaft (1)
    19. Fig 14: Retaining Ring And O-Ring
    GM4528869Courtesy of GENERAL MOTORS COMPANY
  19. Remove Retaining Ring (1) @Differential Carrier Assembly and DISCARD
  20. Remove O-Ring (2) @Differential Carrier Assembly and DISCARD
    21. Fig 15: Power Transfer Unit Propeller Shaft Retainer
    GM4528883Courtesy of GENERAL MOTORS COMPANY
  21. Remove Power Transfer Unit Propeller Shaft Retainer (1) and DISCARD
  22. Remove O-Ring (2) @Power Transfer Unit and DISCARD
