Water Pump Installation
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

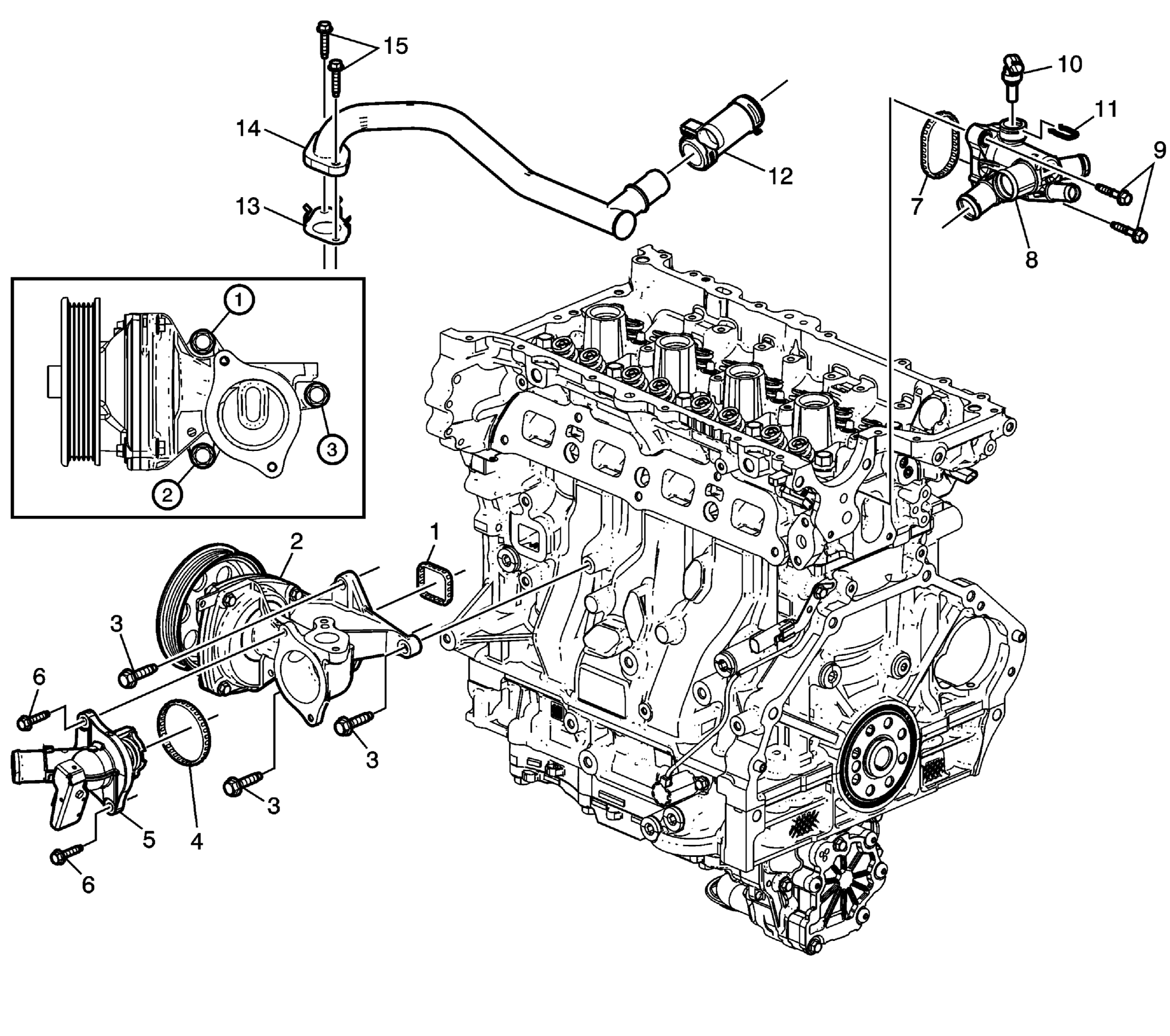

| Callout | Component Name |
|---|---|
| 1 | Water Pump Gasket |
| 2 | Water Pump |
| 3 | Water Pump Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution . Procedure
NOTE:
The sequence allows the fasteners closest to compress the seal. Tighten the water pump bolts in sequence. Tighten 25 N.m (18 lb ft) |
| 4 | Thermostat Assembly Gasket |
| 5 | Thermostat Assembly |
| 6 | Thermostat Assembly Bolt (Qty: 2) Tighten 10 N.m (89 lb in) |
| 7 | Water Outlet Assembly Gasket |
| 8 | Water Outlet Assembly |
| 9 | Water Outlet Assembly Bolt (Qty: 2) Tighten 12 N.m (106 lb in) |
| 10 | Water Coolant Temperature Sensor |
| 11 | Water Coolant Temperature Sensor Retaining Clip |
| 12 | Water Outlet Hose |
| 13 | Thermal Bypass Pipe Gasket |
| 14 | Thermal Bypass Pipe |
| 15 | Thermal Bypass Pipe Bolt (Qty: 2) Tighten 10 N.m (89 lb in) |
