Exhaust Manifold Removal
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

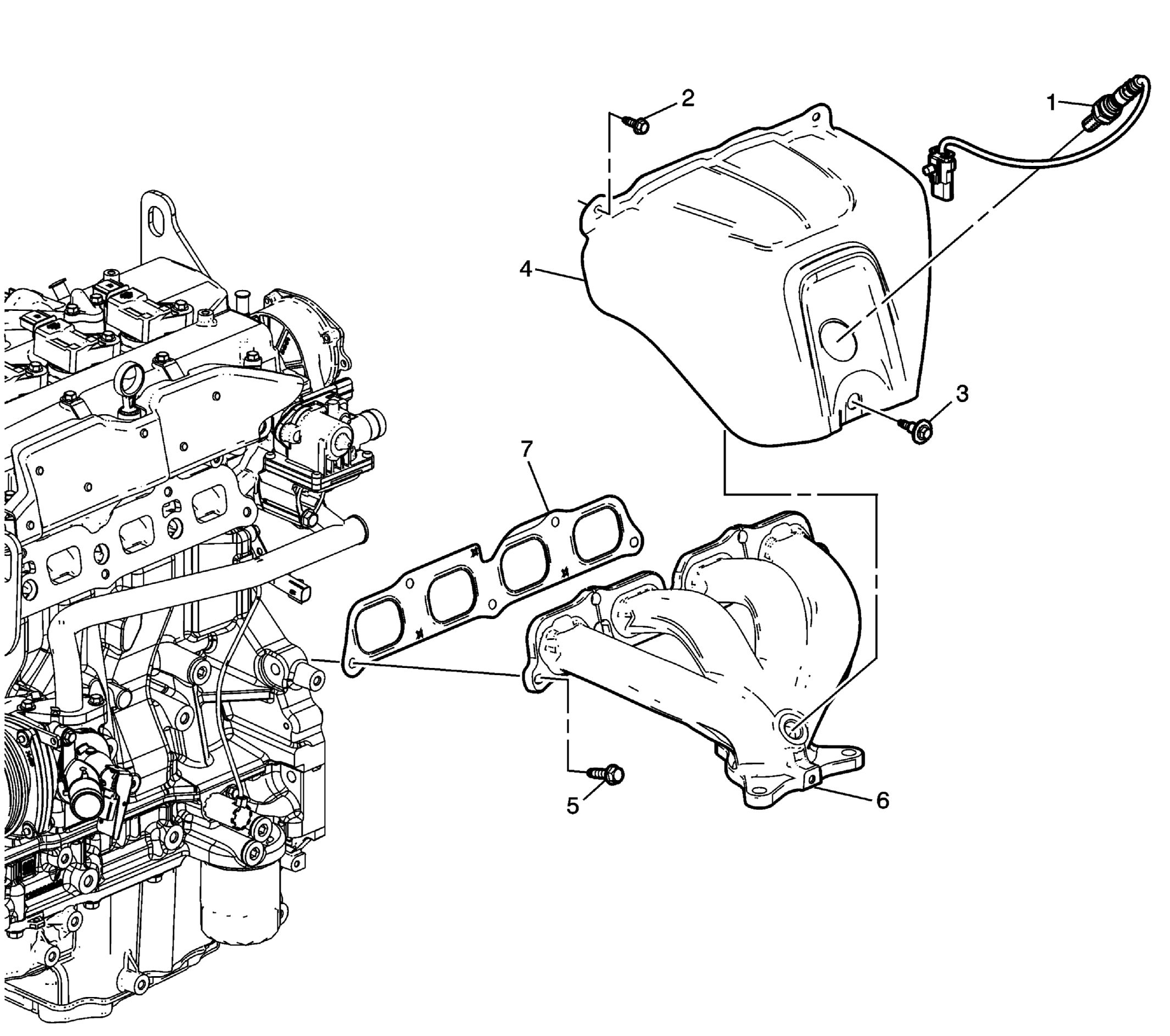

| Callout |
Component Name |
| 1 |
Oxygen Sensor |
| 2 |
Exhaust Manifold Heat Shield Bolt (Qty: 2) |
| 3 |
Exhaust Manifold Heat Shield Bolt (Qty: 1) |
| 4 |
Exhaust Manifold Heat Shield |
| 5 |
Exhaust Manifold Bolt (Qty: 5) |
| 6 |
Exhaust Manifold |
| 7 |
Exhaust Manifold Gasket |
