Camshaft Cover - Right Side

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

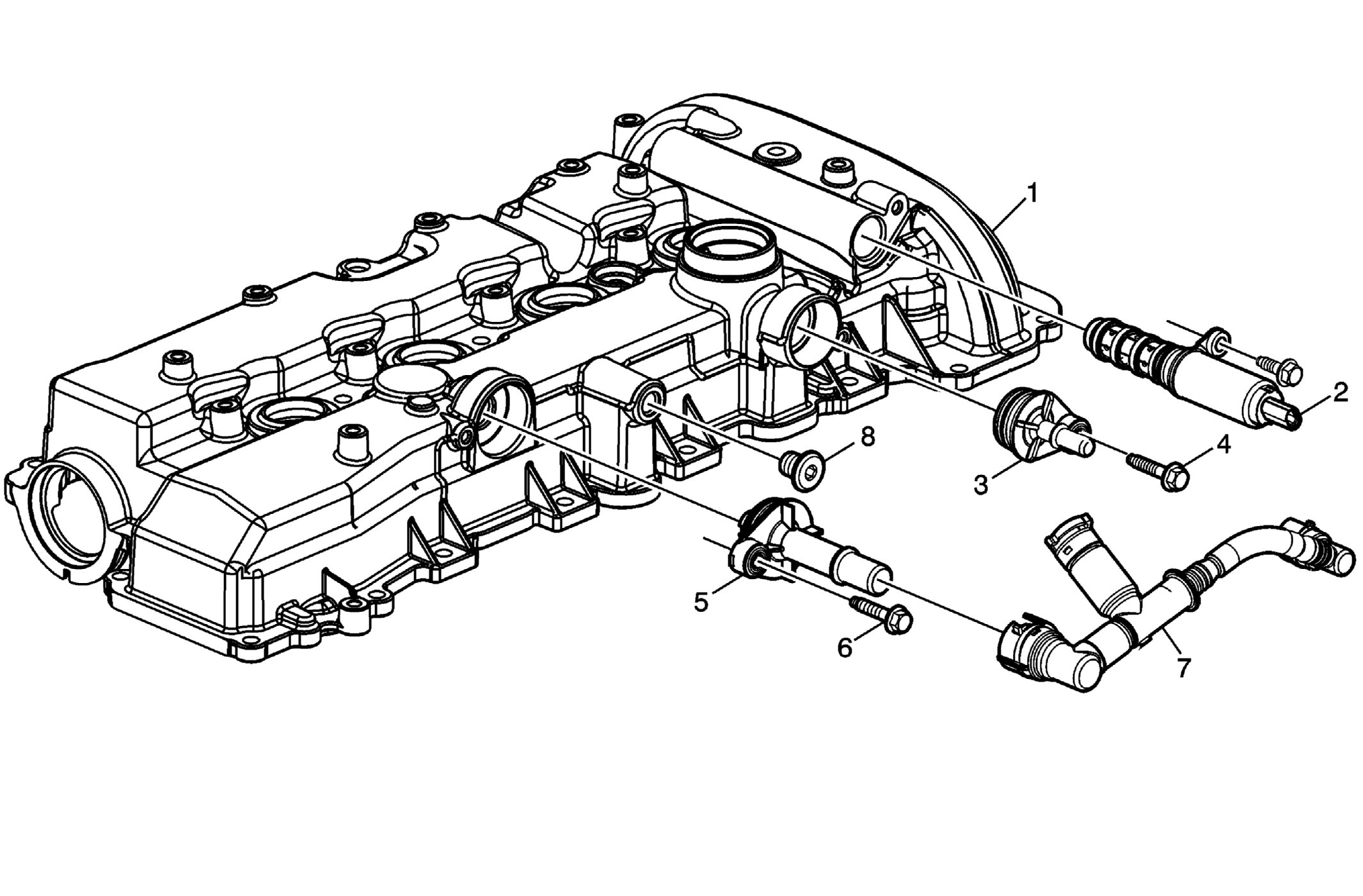

Fig 1: Camshaft Cover - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Thoroughly clean the camshaft cover and mating surfaces. Inspect each component, O-rings, and fasteners, and replace as necessary. Ensure proper use of room temperature vulcanizing (RTV) sealant. Refer to Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant
1	Camshaft Cover
2	Camshaft Position Actuator Control Solenoid Valve - Intake
3	PCV Valve
4	PCV Valve Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
5	PCV Valve
6	PCV Valve Bolt Tighten 10 N.m (89 lb in)
7	PCV Tube Assembly NOTE: Component may vary by model.
8	Camshaft Cover Plug Tighten 35 N.m (26 lb ft)
