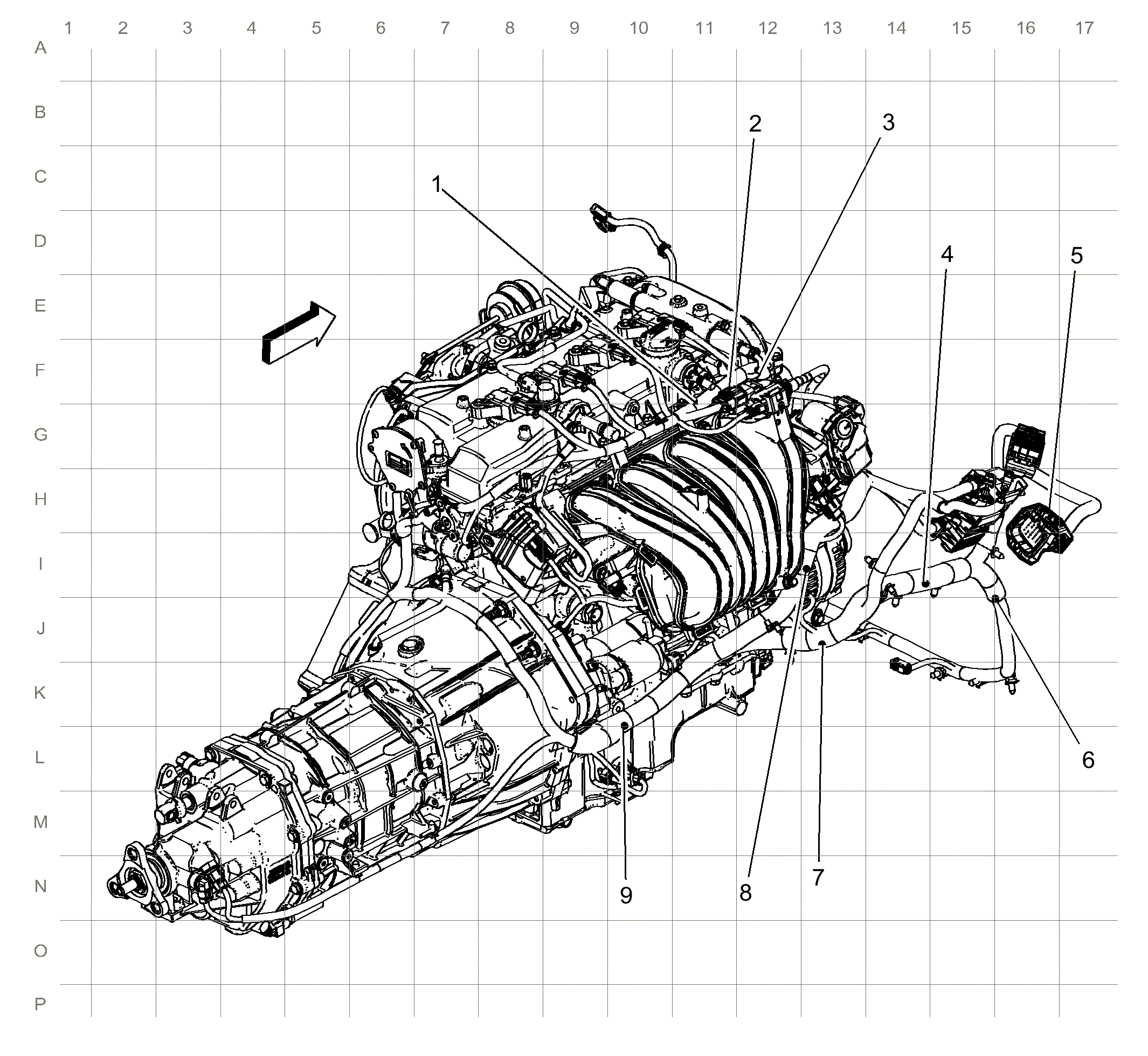

Engine Harness Routing (LTG with M3L)
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J131 |
| 2. X160 X160 Engine Harness to Bank 1 Fuel Rail Harness (LF4+LGX)X160 Engine Harness to Fuel Rail Harness (LCV+LTG) |
| 3. J133 |
| 4. J134 |
| 5. X150 X150 Body Harness to Engine Harness |
| 6. J140 (LCV or LTG) |
| 7. J141 (KL9) |
| 8. J132 |
| 9. J130 |
