Body Harness Routing - Left Rear of Passenger Compartment (Coupe)

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

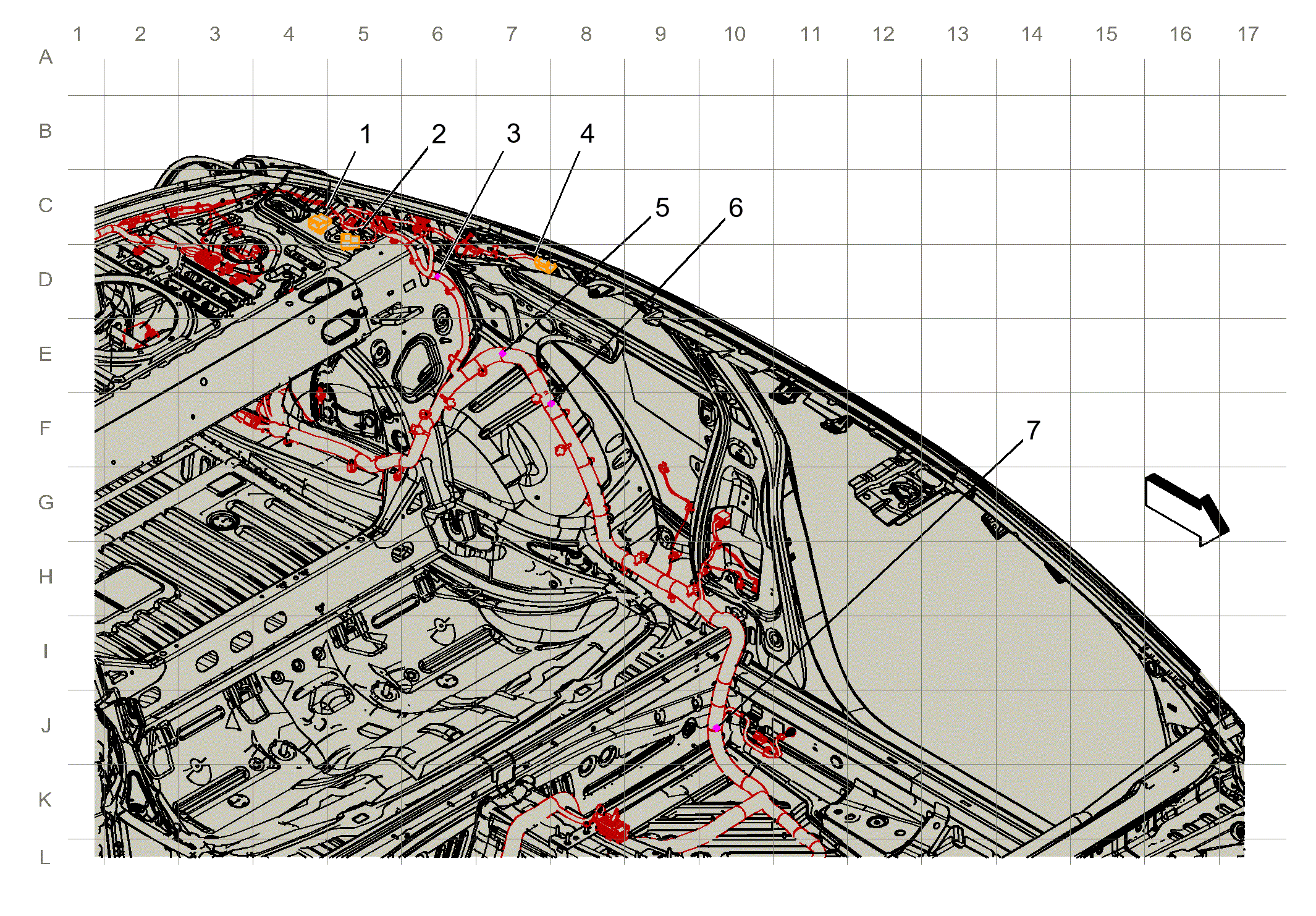

Fig 1: Body Harness Routing - Left Rear of Passenger Compartment (Coupe)
GM4055731Courtesy of GENERAL MOTORS COMPANY
Items
1. X335 X335 Headliner Harness to Body Harness ()
2. X337 X337 Headliner Harness to Body Harness
3. J348
4. X338 (CF5) X338 Sunroof Harness to Body Harness
5. J344
6. J347
7. J322
