Body Harness Routing - Left Rear Underbody (Coupe)

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

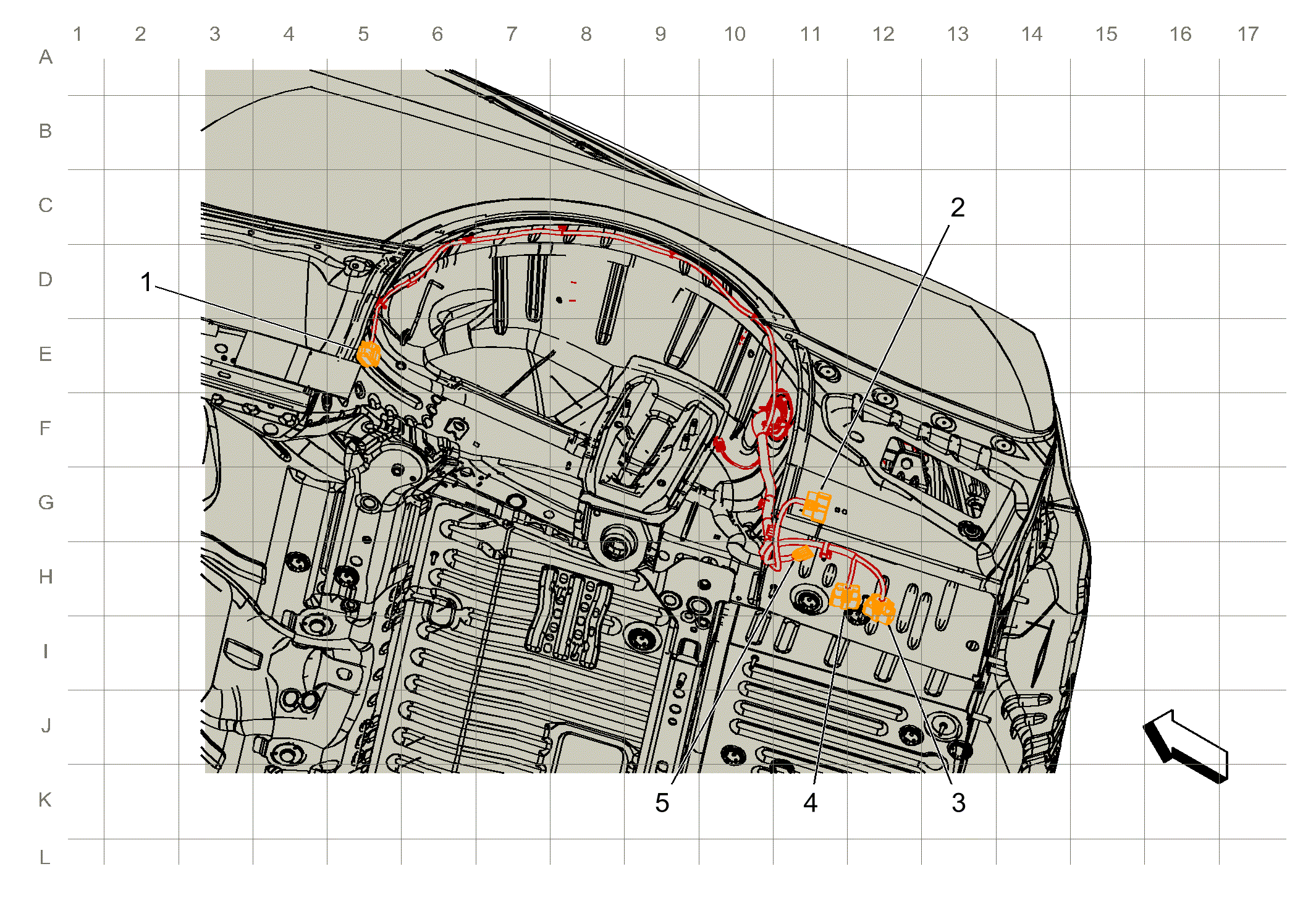

Fig 1: Body Harness Routing - Left Rear Underbody (Coupe)
GM4055749Courtesy of GENERAL MOTORS COMPANY
Items
1. X350 X350 Body Harness to Fuel Tank Harness
2. X415 X415 Body Harness to Rear Fascia Harness
3. X403 (J77) X403 Body Harness to Rear Chassis Harness
4. X402 X402 Body Harness to Rear Chassis Harness
5 W8 Blunt Cut - Trailer Provision (V2S)
