Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716) Cooling System Draining and Filling (Static) .
Remove the drive belt. Refer to Drive Belt Replacement .
Remove the exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement (LCV) .

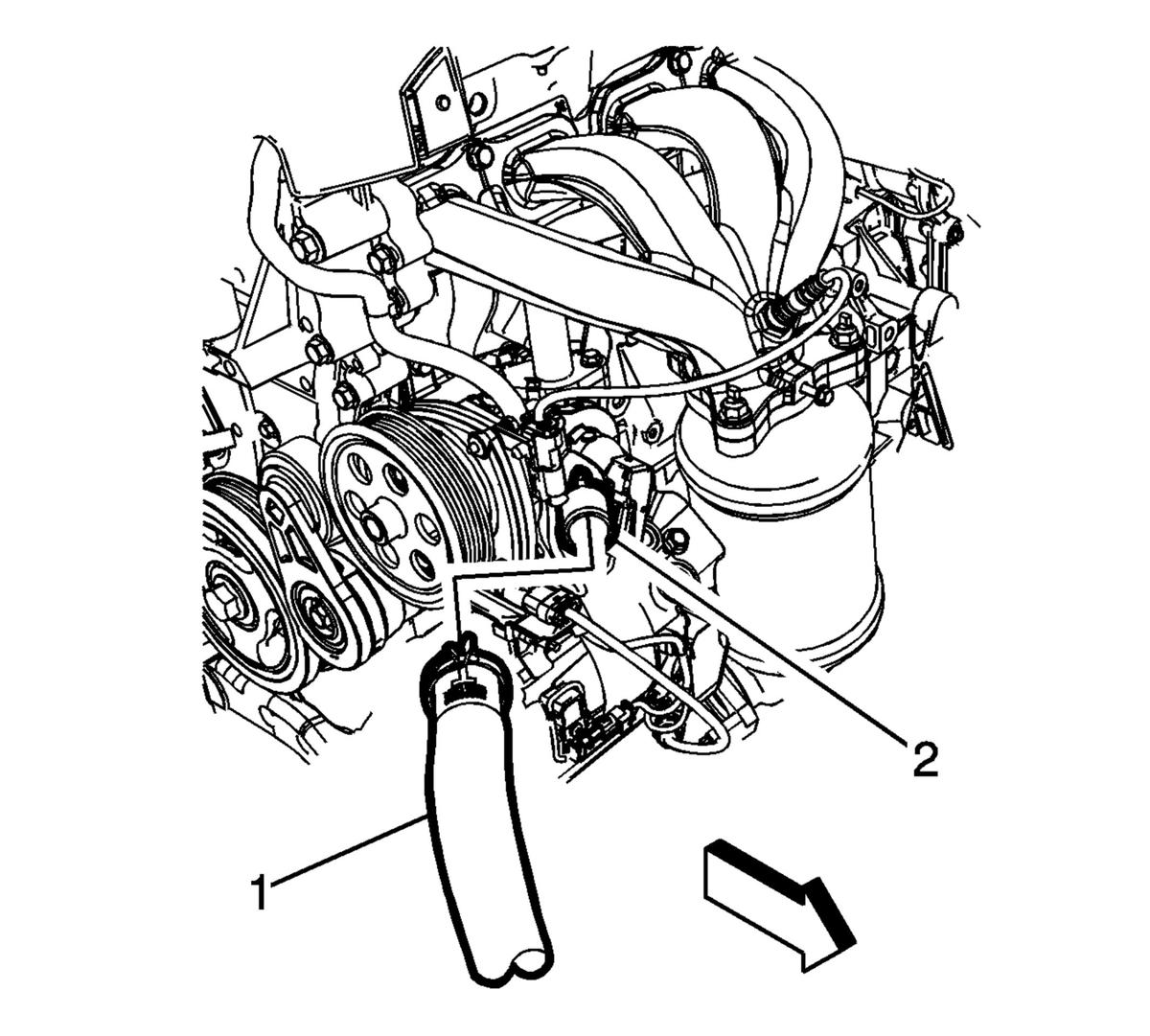

Fig 1: Radiator Outlet Hose And Water Outlet

Courtesy of GENERAL MOTORS COMPANY

Using the BO-38185 hose clamp pliers, remove the radiator outlet hose (1) from the water outlet (2).

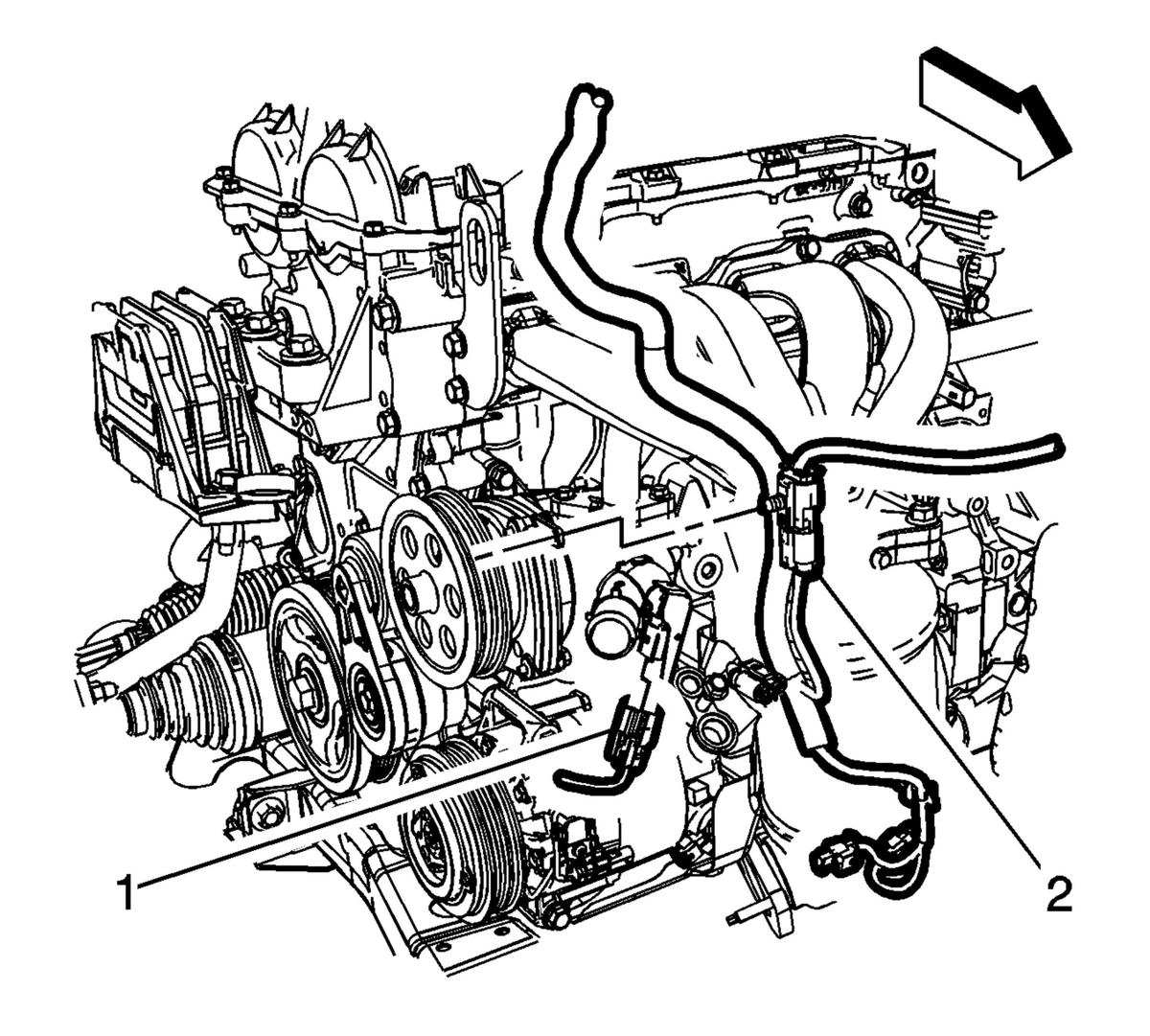

Fig 2: Thermostat Housing Connector And Engine Harness Retainer

Courtesy of GENERAL MOTORS COMPANY

Disconnect the thermostat housing connector (1) and remove the engine harness retainer (2) from the water pump.

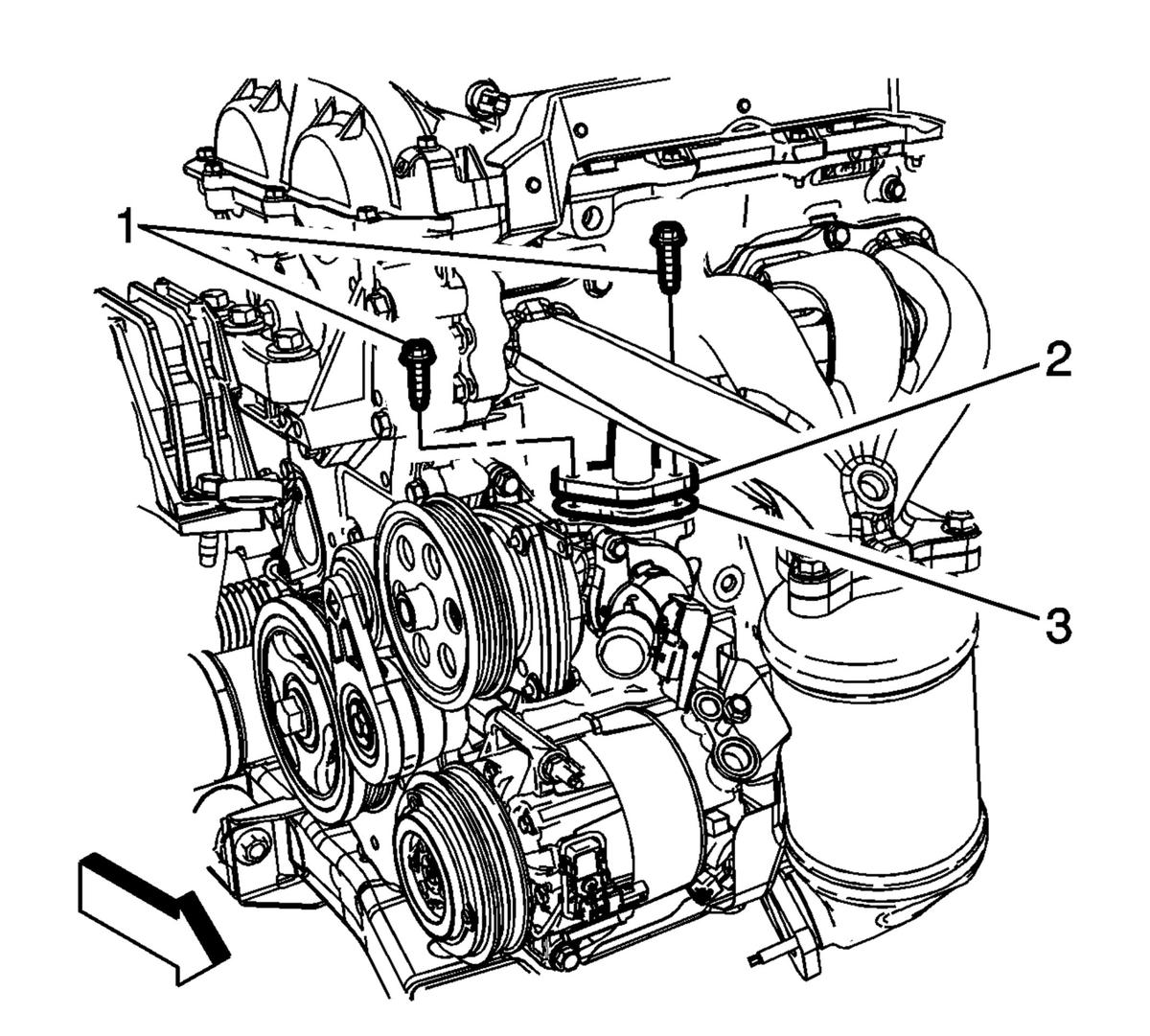

Fig 3: Thermostat Bypass Pipe, Fasteners And Gasket

Courtesy of GENERAL MOTORS COMPANY

Remove the thermostat bypass pipe fasteners (1) and remove the thermostat bypass pipe (2) from the water pump.
Discard the thermostat bypass pipe gasket (3).

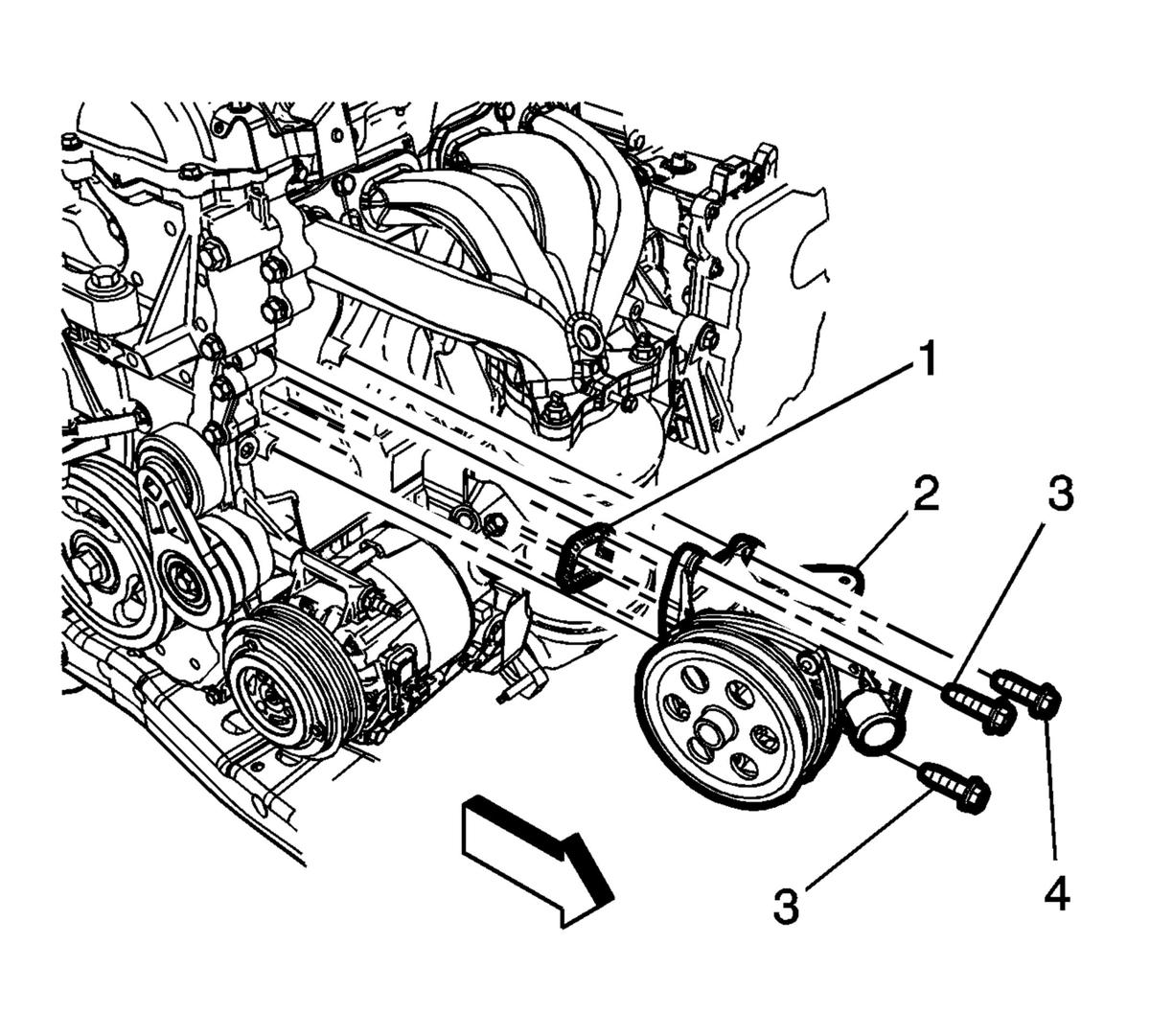

Fig 4: Water Pump, Fasteners And Seal

Courtesy of GENERAL MOTORS COMPANY

Remove the water pump fasteners (3) and (4) remove the water pump (2).
Discard the water pump seal (1).
