Water Pump Pulley Replacement (LGX)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

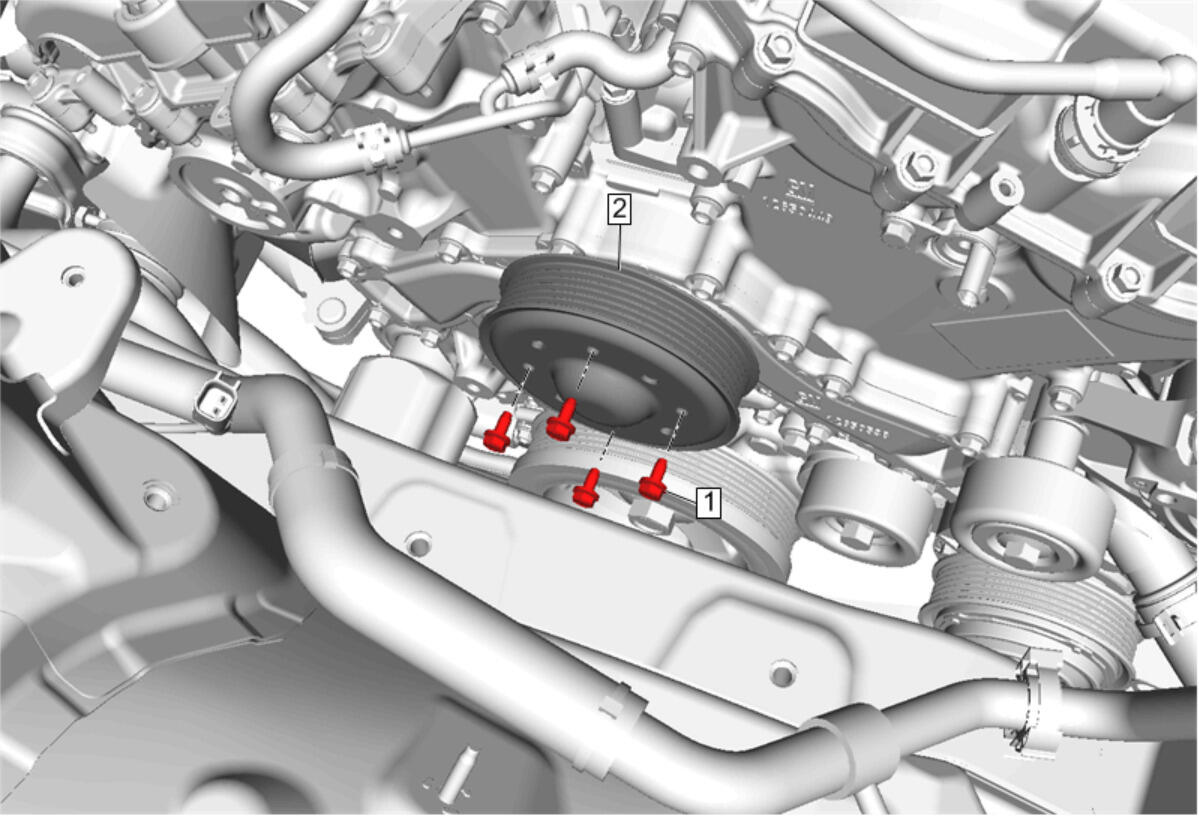

Fig 1: Water Pump Pulley (LGX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Engine Mount Bracket - Right Side. Refer to Engine Mount Bracket Replacement - Right Side Remove Drive Belt. Refer to Drive Belt Replacement
1	Water Pump Pulley Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Water Pump Pulley Procedure Install the EN-46104 Water Pump Pulley Holding Tool onto the water pump pulley mounting holes. Remove the water pump pulley bolts. Remove the EN-46104 Water Pump Pulley Holding Tool from the water pump pulley. Special Tools EN-46104 Water Pump Pulley Holding Tool For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedures

Remove Engine Mount Bracket - Right Side. Refer to Engine Mount Bracket Replacement - Right Side
Remove Drive Belt. Refer to Drive Belt Replacement

Water Pump Pulley Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Water Pump Pulley

Procedure

Install the EN-46104 Water Pump Pulley Holding Tool onto the water pump pulley mounting holes.
Remove the water pump pulley bolts.
Remove the EN-46104 Water Pump Pulley Holding Tool from the water pump pulley.

Special Tools
EN-46104 Water Pump Pulley Holding Tool
For equivalent regional tools, refer to Special Tools .
