Radiator Support Baffle Replacement (LGX)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

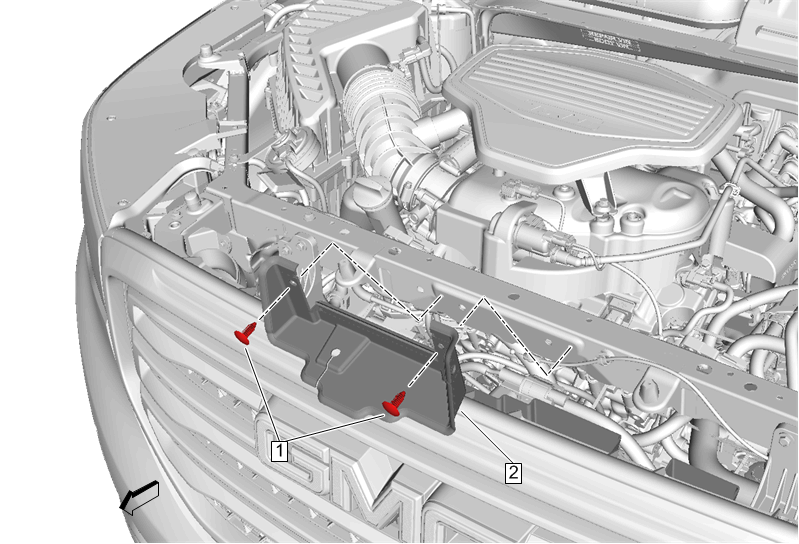

Fig 1: Radiator Support Baffle (LGX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Intake Air Splash Shield. Refer to Intake Air Splash Shield Replacement Disconnect Hood Primary Latch Release Cable @ Radiator Support Baffle. Refer to Hood Primary Latch Release Cable Replacement
1	Radiator Support Baffle Retainer (Qty: 2)
2	Radiator Support Baffle

Callout

Component Name

Preliminary Procedures

Remove Intake Air Splash Shield. Refer to Intake Air Splash Shield Replacement
Disconnect Hood Primary Latch Release Cable @ Radiator Support Baffle. Refer to Hood Primary Latch Release Cable Replacement

Radiator Support Baffle Retainer (Qty: 2)

Radiator Support Baffle
