Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716) Cooling System Draining and Filling (Static)

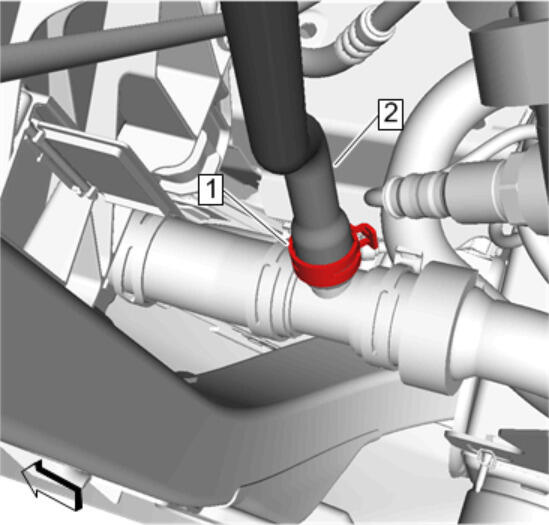

    2. Fig 1: Radiator Outlet Hose And Clamp
    GM4291676Courtesy of GENERAL MOTORS COMPANY
  2. Disengage Radiator Outlet Hose Clamp (1). Refer to Hose Clamp Replacement Guidelines - Spring Type
  3. Remove Radiator Outlet Hose (2) @ Radiator Outlet Hose Tee

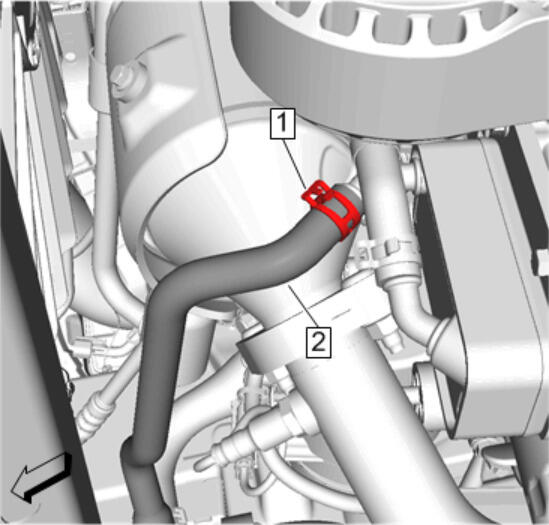

    4. Fig 2: Radiator Outlet Hose And Clamp
    GM4291679Courtesy of GENERAL MOTORS COMPANY
  4. Disengage Radiator Outlet Hose Clamp (1). Refer to Hose Clamp Replacement Guidelines - Spring Type
  5. Remove Radiator Outlet Hose (2) @ Engine Oil Cooler
  6. Remove Radiator Outlet Hose (2)
