Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

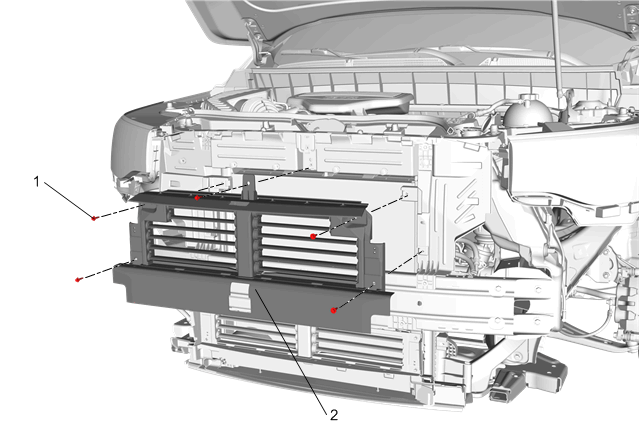

Fig 1: Front Bumper Shutter

Courtesy of GENERAL MOTORS COMPANY

Remove Front Bumper Shutter (2). Refer to Front Bumper Shutter Replacement

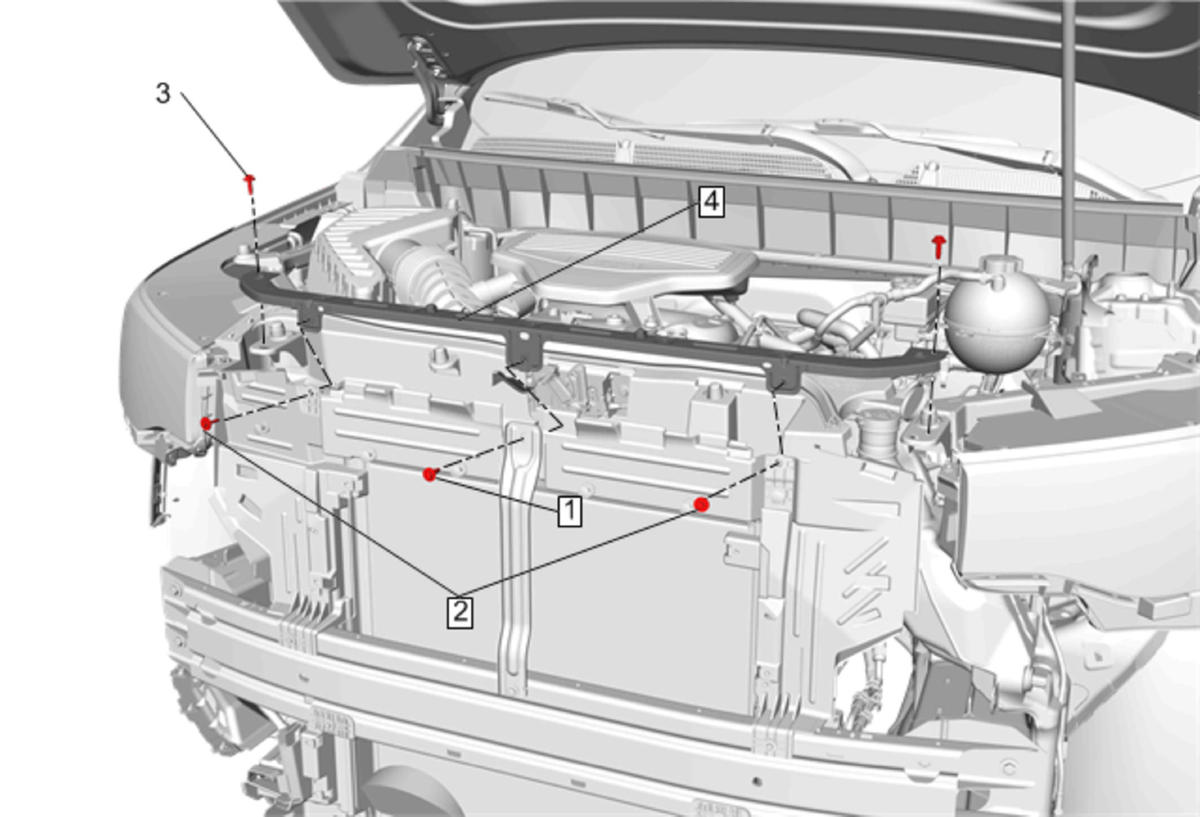

Fig 2: Front Bumper Fascia Center Support - Upper

Courtesy of GENERAL MOTORS COMPANY

Remove Front Bumper Fascia Center Support - Upper (4). Refer to Front Bumper Fascia Center Support Replacement - Upper

Fig 3: Intake Air Splash Shield Retainers

Courtesy of GENERAL MOTORS COMPANY

Remove Intake Air Splash Shield Retainers (1) (Qty: 6)

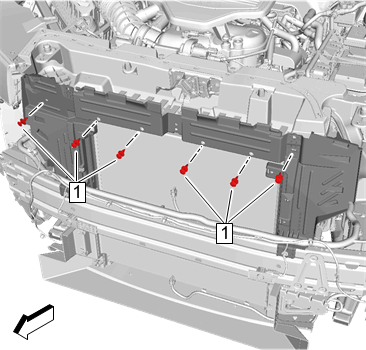

Fig 4: Radiator Air Upper Baffle Bolts

Courtesy of GENERAL MOTORS COMPANY

Remove Radiator Air Upper Baffle Bolts (1) (Qty: 2)

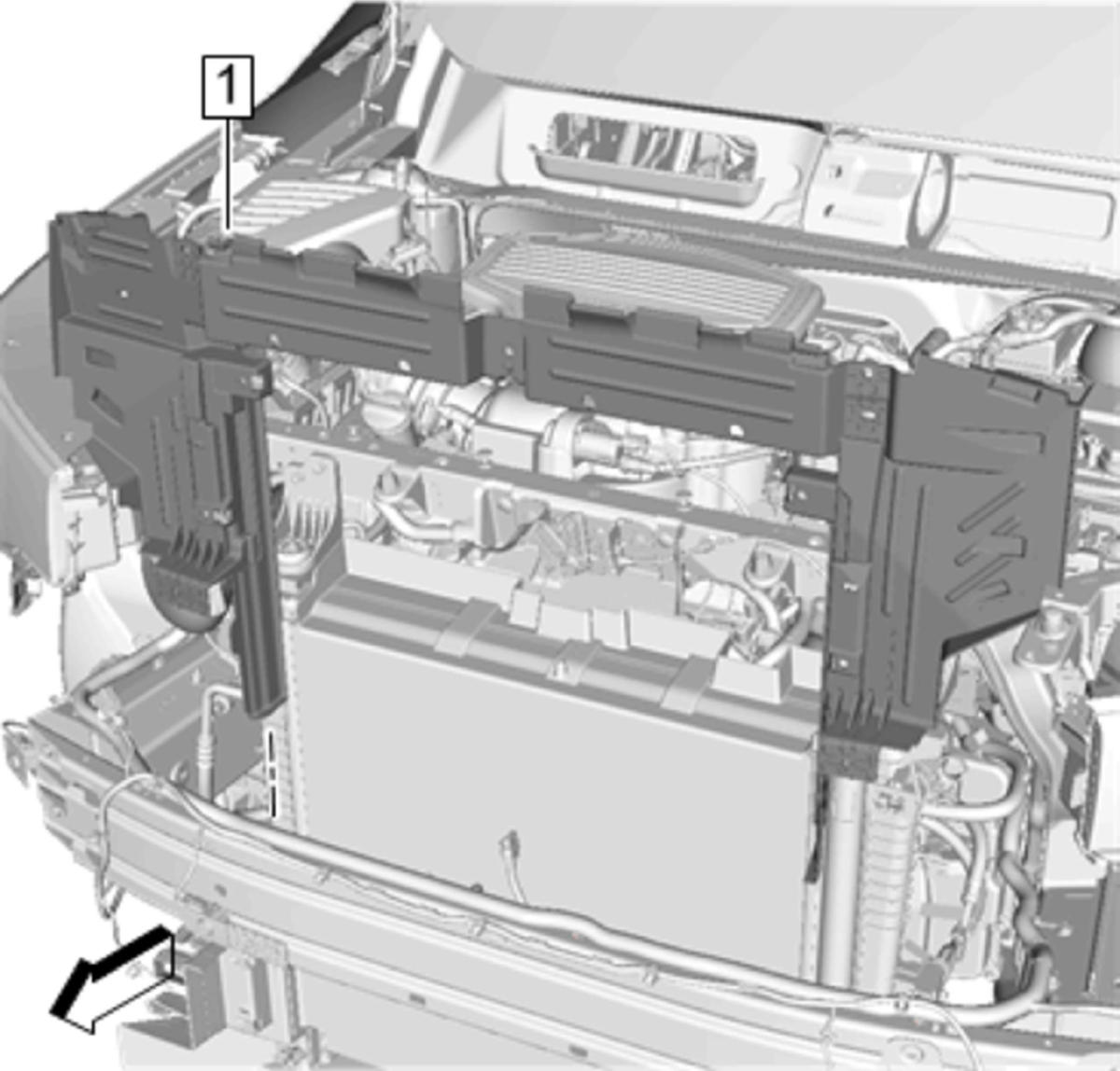

Fig 5: Radiator Air Upper Baffle

Courtesy of GENERAL MOTORS COMPANY

Remove Radiator Air Upper Baffle (1)
