Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Intake Air Splash Shield And Fasteners
    GM4364075Courtesy of GENERAL MOTORS COMPANY
  1. Remove Intake Air Splash Shield (3). Refer to Intake Air Splash Shield Replacement

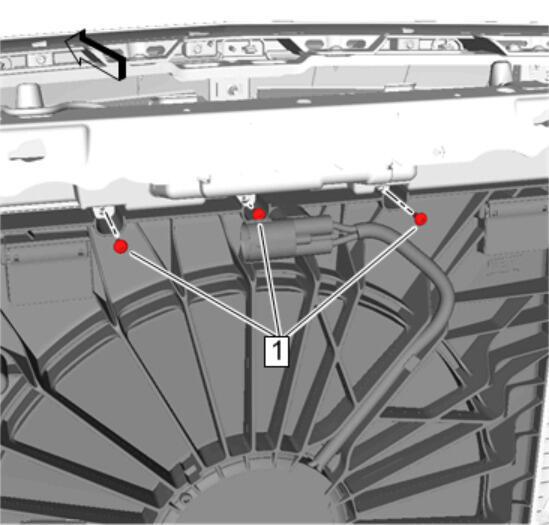

    2. Fig 2: Radiator Air Baffle Bolts
    GM4292986Courtesy of GENERAL MOTORS COMPANY
  2. Remove Radiator Air Baffle Bolts (1) (Qty: 3) @ Engine Coolant Fan
    3. Fig 3: Radiator Air Side Upper Baffle
    GM4372806Courtesy of GENERAL MOTORS COMPANY
  3. Remove Radiator Air Side Upper Baffle (1)
