Home >> GMC >> 2018 >> Acadia Denali, FWD >> Repair and Diagnosis >> External Pages >> Different car >> Section 357 (Engine Cooling System) >> Repair Instructions >> Radiator Air Lower Baffle Replacement (LCV) >> Removal Procedure

Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

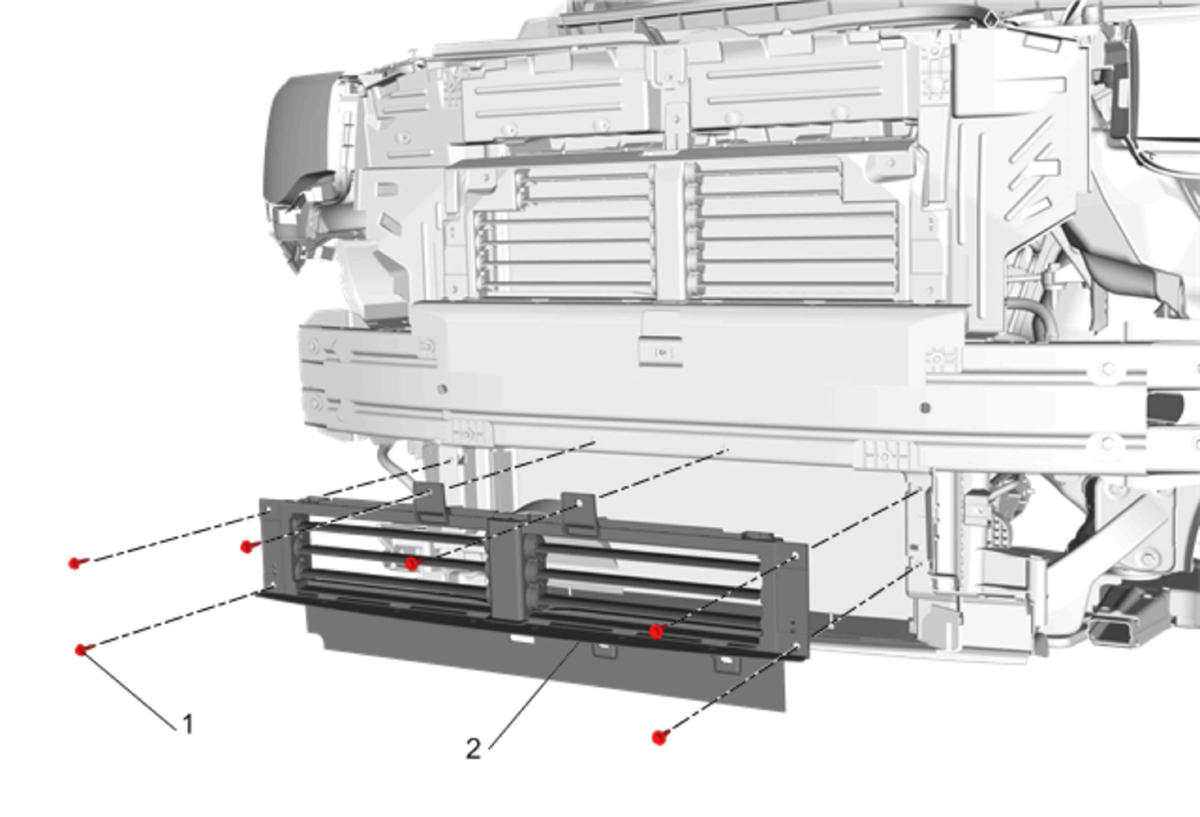

    Fig 1: Front Bumper Lower Shutter
    GM4363970Courtesy of GENERAL MOTORS COMPANY
  1. Remove Front Bumper Shutter - Lower (2). Refer to Front Bumper Lower Shutter Replacement
    2. Fig 2: Radiator Air Lower Baffle Bolts
    GM4372315Courtesy of GENERAL MOTORS COMPANY
  2. Remove Radiator Air Lower Baffle Bolts (1) (Qty: 5)
    3. Fig 3: Radiator Air Front Lower Baffle
    GM4372318Courtesy of GENERAL MOTORS COMPANY
  3. Remove Radiator Air Lower Baffle (1)
