Installation Procedure
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

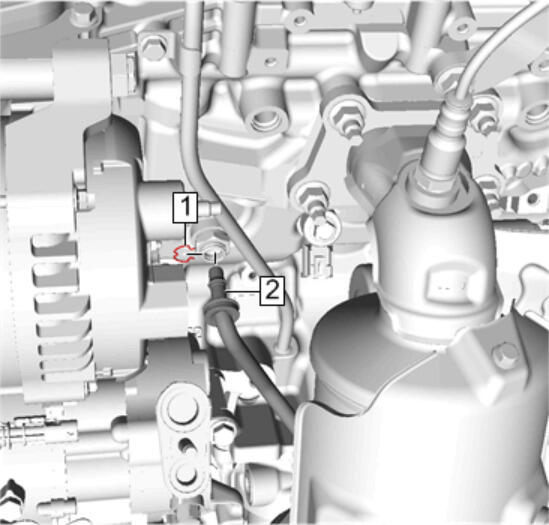

- Install Engine Oil Cooler Inlet Pipe (2)
- Install the retainer to the quick connect fitting (1).

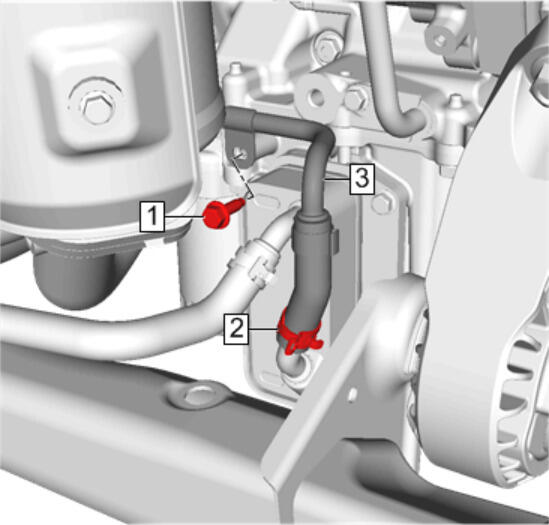

- Connect Engine Oil Cooler Inlet Pipe (3) @ Engine Oil Cooler
- Engage Hose Clamp (2). Refer to Hose Clamp Replacement Guidelines - Spring Type
- Install and tighten Engine Oil Cooler Inlet Pipe Bolt (1) to 10 N.m (89 lb in)
- Install Oil Level Indicator Tube. Refer to Oil Level Indicator Tube Replacement
- Fill the cooling system. Refer to Cooling System Draining and Filling (GE-47716) Cooling System Draining and Filling (Static)
CAUTION:
Refer to Fastener Caution .
