Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

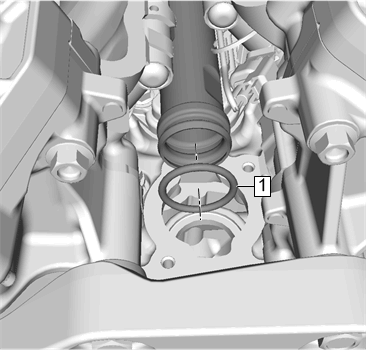

Fig 1: Engine Coolant Thermostat Housing Inlet Pipe O-Ring Seal

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Install a NEW O-ring seal.

Install Engine Coolant Thermostat Housing Inlet Pipe O-ring Seal (1)

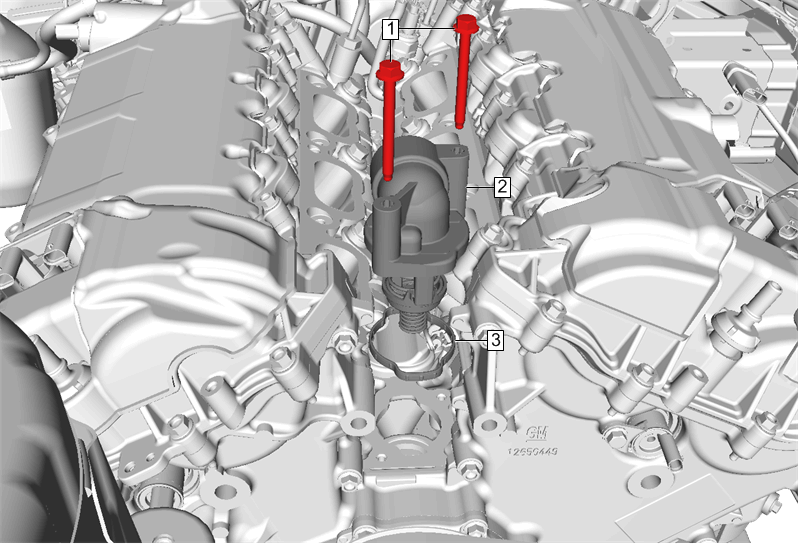

Fig 2: Engine Coolant Thermostat Housing, Bolts And Seal

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Install a NEW engine coolant thermostat housing seal.

Install Engine Coolant Thermostat Housing Seal (3)
Install Engine Coolant Thermostat Housing (2)

CAUTION:

Refer to Fastener Caution .

Install and tighten Engine Coolant Thermostat Housing Bolts (1) (Qty: 2) to 10 N.m (89 lb in)

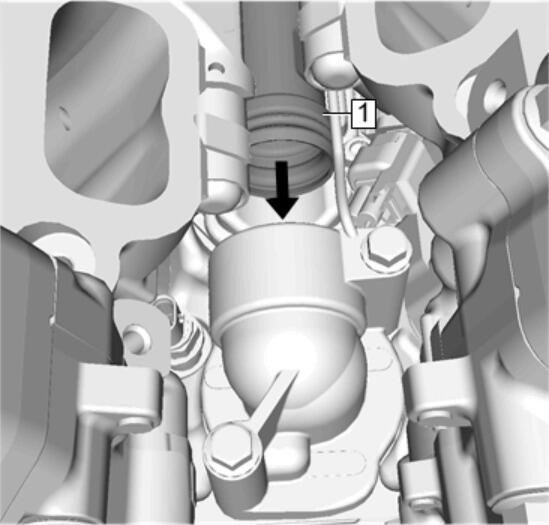

Fig 3: Engine Coolant Thermostat Housing Inlet Pipe

Courtesy of GENERAL MOTORS COMPANY

Insert the engine coolant thermostat housing inlet pipe (1) to the thermostat housing.

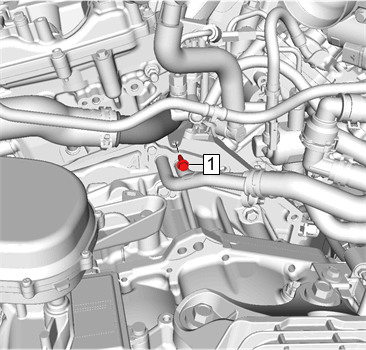

Fig 4: Engine Coolant Thermostat Housing Inlet Pipe Bolt

Courtesy of GENERAL MOTORS COMPANY

Install and tighten Engine Coolant Thermostat Housing Inlet Pipe Bolt (1) to 10 N.m (89 lb in)

Fig 5: Engine Coolant Air Bleed Pipes And O-Ring Seals

Courtesy of GENERAL MOTORS COMPANY

Install Engine Coolant Air Bleed Pipes (1). Refer to Engine Coolant Air Bleed Pipe Replacement (LGX)
Install Engine Rear Noise Shield. Refer to Engine Rear Noise Shield Replacement

Fig 6: Fuel Injection Fuel Rail Noise Shield

Courtesy of GENERAL MOTORS COMPANY

Install Fuel Injection Fuel Rail Noise Shield (1). Refer to Fuel Injection Fuel Rail Noise Shield Replacement
Fill the cooling system. Refer to Cooling System Draining and Filling (GE-47716) Cooling System Draining and Filling (Static)
Start the engine and check for leaks.
