Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716) Cooling System Draining and Filling (Static)
  2. Remove Battery Tray. Refer to Battery Tray Replacement
  3. Remove Engine Rear Noise Shield. Refer to Engine Rear Noise Shield Replacement
  4. Remove Fuel Injection Fuel Rail Assembly @ Bank 1. Refer to Fuel Injection Fuel Rail Assembly Replacement - Bank 1

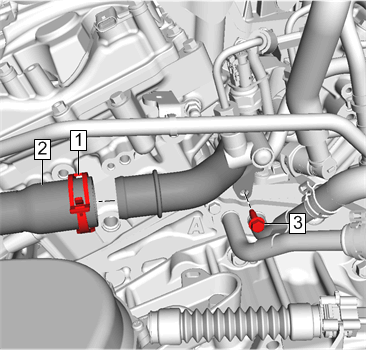

    5. Fig 1: Radiator Inlet Hose, Clamp And Engine Coolant Thermostat Housing Inlet Pipe Bolt
    GM4291071Courtesy of GENERAL MOTORS COMPANY
  5. Disengage Radiator Inlet Hose Clamp (1). Refer to Hose Clamp Replacement Guidelines - Spring Type
  6. Disconnect Radiator Inlet Hose (2)
  7. Remove Engine Coolant Thermostat Housing Inlet Pipe Bolt (3)

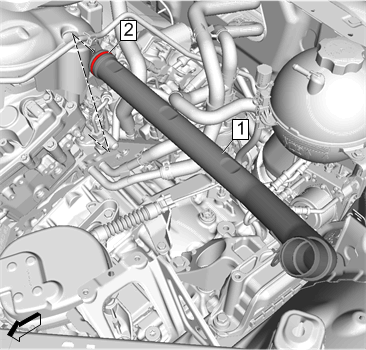

    8. Fig 2: Engine Coolant Thermostat Housing Inlet Pipe And O-Ring Seal
    GM4291649Courtesy of GENERAL MOTORS COMPANY
  8. Remove Engine Coolant Thermostat Housing Inlet Pipe (1)
  9. Remove and DISCARD the O-ring seal (2).
