Engine Coolant Air Bleed Pipe Replacement (LCV)
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

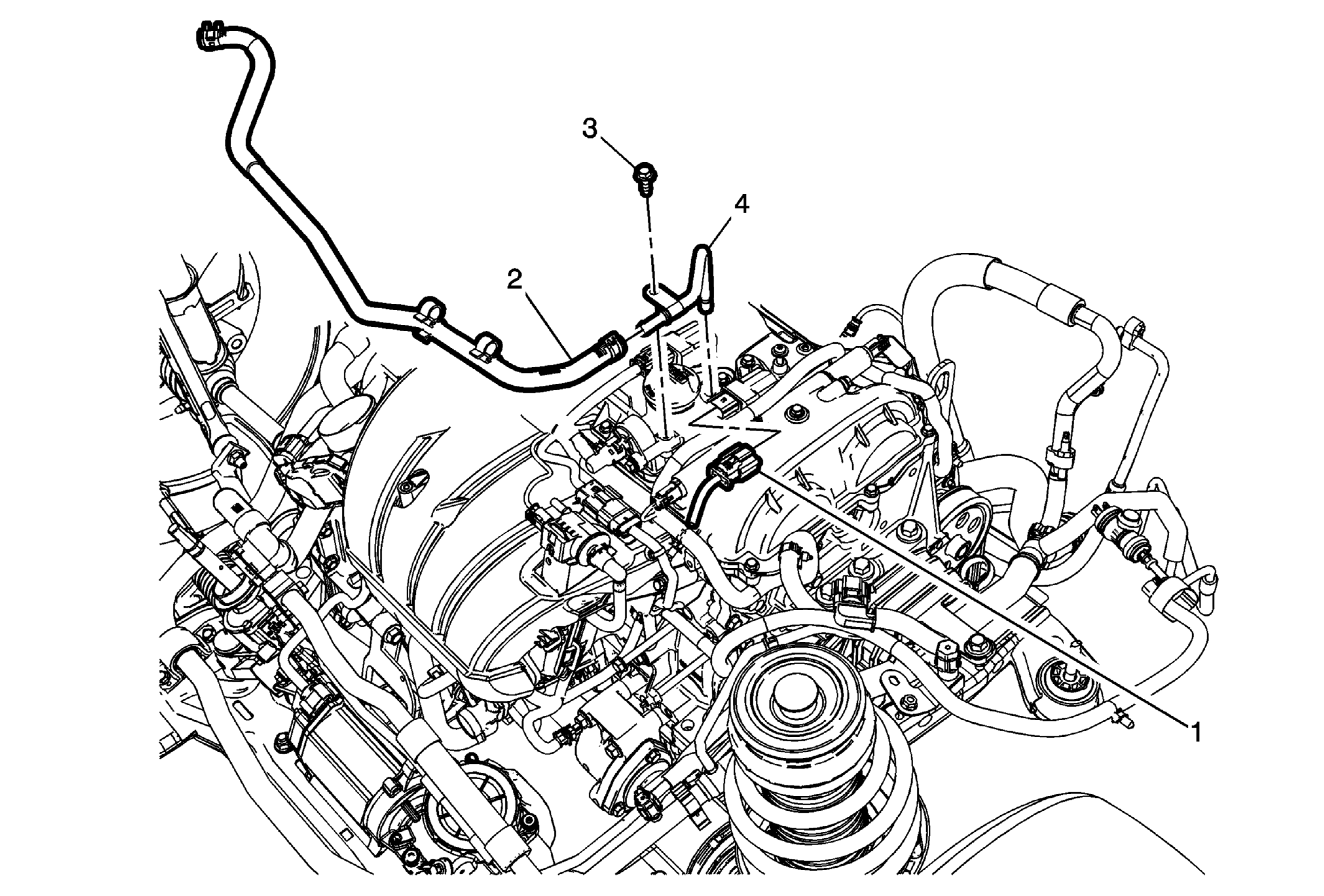

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Special Tools BO-38185 Hose Clamp Pliers For equivalent regional tools, refer to Special Tools . |
|
| 1 | Ignition Coil Connector |
| 2 | Surge Tank Vent Hose |
| 3 | Engine Coolant Air Bleed Pipe Fastener
CAUTION:
Refer to Fastener Caution . Tighten: 10 N.m (89 lb in) |
| 4 | Engine Coolant Air Bleed Pipe |
