Vac-N-Fill Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

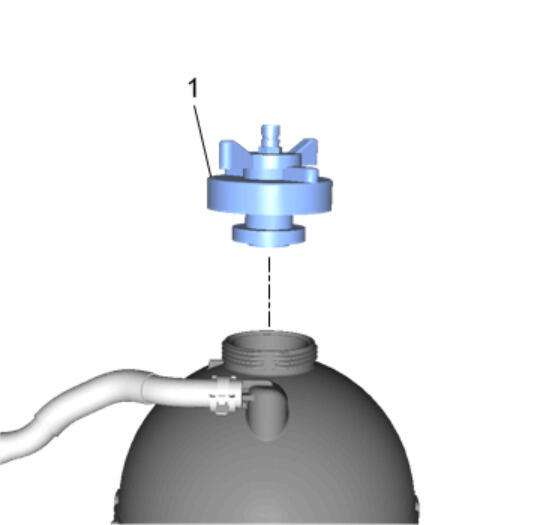

  1. Install the J 42401-A  Radiator Cap and Surge Tank Test Adapter onto the coolant surge tank.
  2. Fig 1: Radiator Cap and Surge Tank Test Adapter
    GM4296714Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    To avoid being burned, do not remove the radiator cap or surge tank cap while the engine is hot. The cooling system will release scalding fluid and steam under pressure if radiator cap or surge tank cap is removed while the engine and radiator are still hot.

  3. Attach the Vac N Fill cap to the J 42401-A  Radiator Cap and Surge Tank Test Adapter (1).
  4. Fig 2: Vacuum Gauge Assembly
    GM4296715Courtesy of GENERAL MOTORS COMPANY
  5. Attach the vacuum gauge assembly (1) to the Vac N Fill cap.
  6. Fig 3: Fill Hose And Vacuum Gauge Assembly
    GM4296717Courtesy of GENERAL MOTORS COMPANY
  7. Attach the fill hose (2) to the barb fitting on the vacuum gauge assembly (1).

    Ensure that the valve is closed.

  8. Fig 4: Graduated Reservoir, Vacuum Tank & Cut-Out Area
    GM2846170Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Use a 50/50 mixture of DEX-COOL antifreeze and clean, drinkable water.

    Always use more coolant than necessary. This will eliminate air from being drawn into the cooling system.

  9. Pour the coolant mixture into the graduated reservoir (1).
  10. Place the fill hose in the graduated reservoir (1).
  11. NOTE:

    Prior to installing the vacuum tank onto the graduated reservoir, ensure that the drain valve located on the bottom of the tank is closed.

  12. Install the vacuum tank (2) on the graduated reservoir with the fill hose routed through the cut-out area (3) in the vacuum tank.
  13. Fig 5: Vacuum Tank & Venturi Assembly
    GM2846171Courtesy of GENERAL MOTORS COMPANY
  14. Attach the venturi assembly (1) to the vacuum tank (2).
  15. Fig 6: Venturi Assembly & Valve
    GM2846172Courtesy of GENERAL MOTORS COMPANY
  16. Attach a shop air hose to the venturi assembly (1).

    Ensure the valve (2) on the venturi assembly is closed.

  17. Fig 7: Vacuum Hose, Vacuum Gauge Assembly And Vacuum Tank
    GM4320146Courtesy of GENERAL MOTORS COMPANY
  18. Attach the vacuum hose (1) to the vacuum gauge assembly (2) and the vacuum tank (3).
  19. Fig 8: Valve & Venturi Assembly
    GM2846175Courtesy of GENERAL MOTORS COMPANY
  20. Open the valve (1) on the venturi assembly (2). The vacuum gauge will begin to rise and a hissing noise will be present.
  21. Fig 9: Vacuum Gauge Needle
    GM2846177Courtesy of GENERAL MOTORS COMPANY
  22. Continue to draw vacuum until the needle stops rising. This should be 610-660 mm Hg (24-26 in Hg).

    Cooling hoses may start to collapse. This is normal due to vacuum draw.

  23. To aid in the fill process, position the graduated reservoir above the coolant fill port.
  24. Fig 10: Vacuum Gauge Assembly & Valve
    GM2846183Courtesy of GENERAL MOTORS COMPANY
  25. Slowly open the valve (1) on the vacuum gauge assembly (2). When the coolant reaches the top of the fill hose, close the valve. This will eliminate air from the fill hose.
  26. Close the valve on the venturi assembly.
  27. If there is a suspected leak in the cooling system, allow the system to stabilize under vacuum and monitor for vacuum loss.

    If vacuum loss is observed, refer to Loss of Coolant .

  28. Open the valve on the vacuum gauge assembly. The vacuum gauge will drop as coolant is drawn into the system.
  29. Fig 11: Vacuum Gauge
    GM3242386Courtesy of GENERAL MOTORS COMPANY
  30. Once the vacuum gauge reaches zero (1), close the valve on the vacuum gauge assembly and repeat steps 11-17.
  31. Detach the Vac N Fill cap from the J 42401-A  Radiator Cap and Surge Tank Test Adapter.
  32. Remove the J 42401-A  Radiator Cap and Surge Tank Test Adapter from the coolant surge tank.
  33. Add coolant to the system as necessary.
  34. Inspect the concentration of the coolant mixture using J 26568  Coolant and Battery Fluid Tester.
  35. NOTE:

    After filling the cooling system, the extraction hose can be used to remove excess coolant to achieve the proper coolant level.

  36. Detach the vacuum hose from the vacuum gauge assembly.
  37. Fig 12: Vacuum Hose & Extraction Hose
    GM2857825Courtesy of GENERAL MOTORS COMPANY
  38. Attach the extraction hose (1) to the vacuum hose (2).
  39. Fig 13: Venturi Assembly & Valve
    GM2857827Courtesy of GENERAL MOTORS COMPANY
  40. Open the valve (1) on the venturi assembly (2) to start a vacuum draw.
  41. Fig 14: Extraction Hose
    GM4296737Courtesy of GENERAL MOTORS COMPANY
  42. Use the extraction hose (1) to draw out coolant to the proper level.
  43. The vacuum tank has a drain valve on the bottom of the tank. Open the valve to drain coolant from the vacuum tank into a suitable container for disposal.
  44. Install the radiator surge tank cap.
