Acadia Denali, FWD
>>
Repair and Diagnosis
>>
External Pages
>>
Different car
>>
Section 352 (Suspension Control System)
>>
Schematic Wiring Diagrams
>>
Electronic Suspension Control Wiring Schematics
>>
Power, Ground, Serial Data, Controls and Indicators
Power, Ground, Serial Data, Controls and Indicators
WARNING:
This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

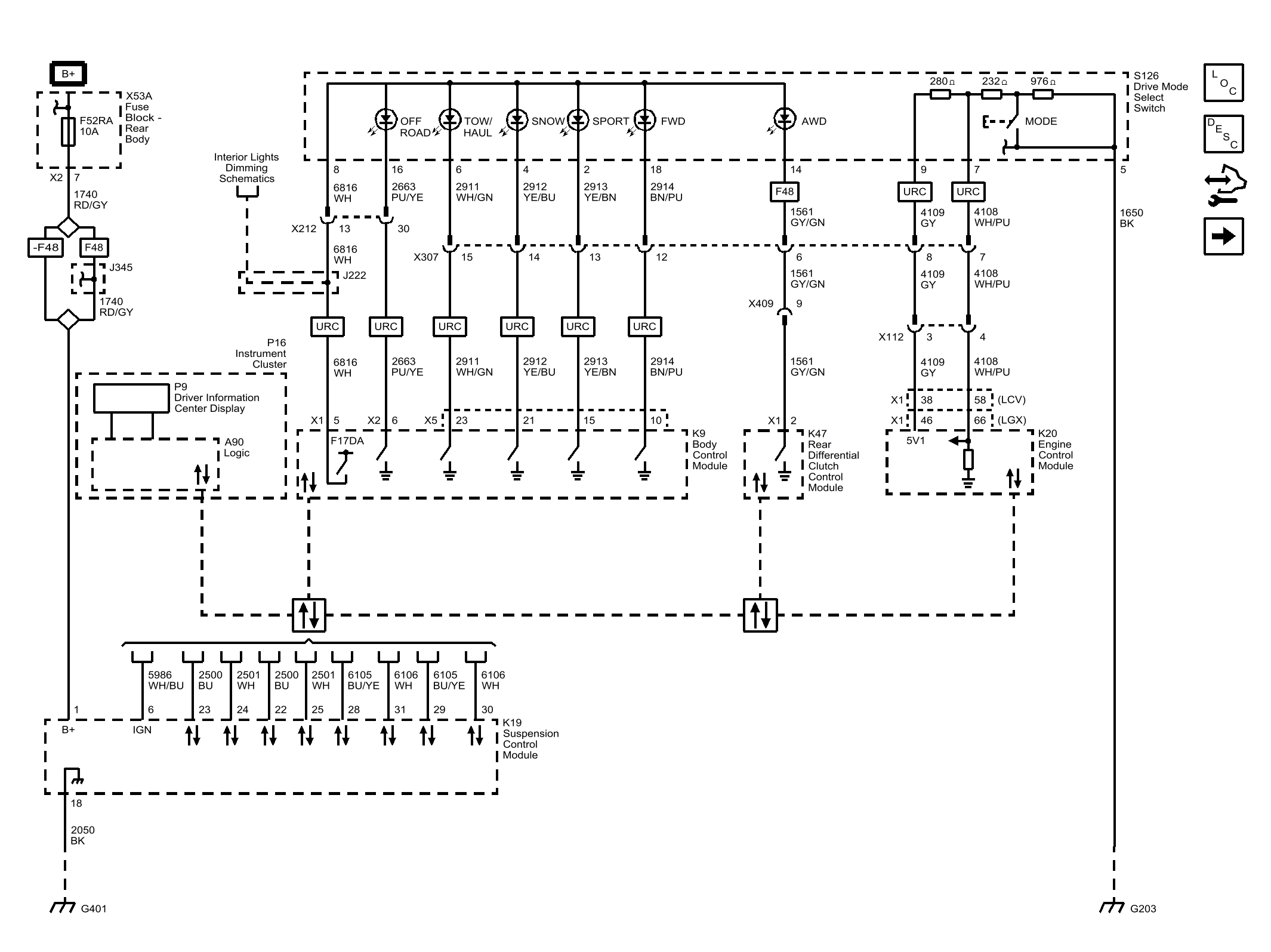

Fig 1: Power, Ground, Serial Data, Controls and Indicators
Courtesy of GENERAL MOTORS COMPANY
