Rear Differential Clutch Control Module (F48)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

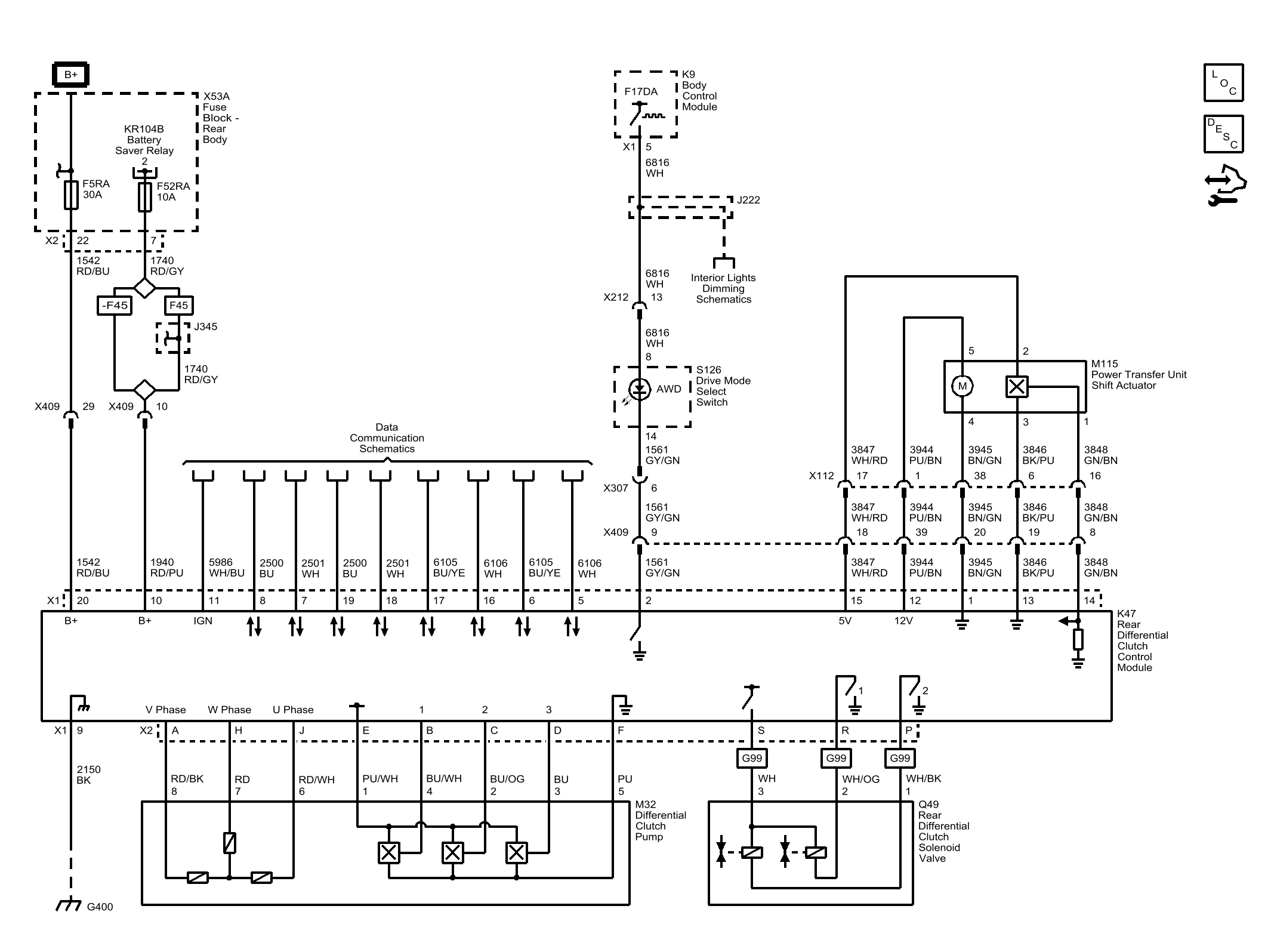

Fig 1: Rear Differential Clutch Control Module (F48)
GM4373026Courtesy of GENERAL MOTORS COMPANY
