Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
  2. Remove the rear axle shaft. Refer to Rear Wheel Drive Shaft Replacement - Left Side , Rear Wheel Drive Shaft Replacement - Right Side

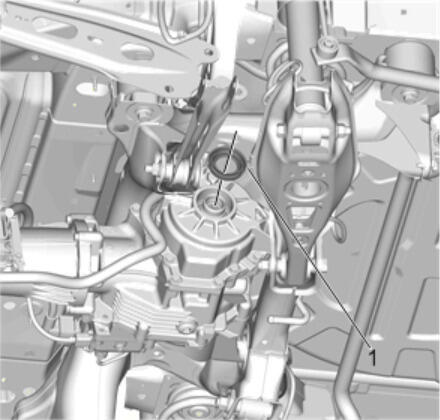

    3. Fig 1: Rear Axle Shaft Seal
    GM3937956Courtesy of GENERAL MOTORS COMPANY
  3. Using a suitable tool, remove the rear axle shaft seal (1).
