Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Using a suitable jack stand support the torque tube assembly.

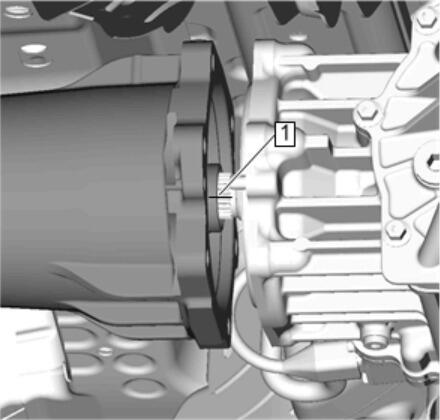

Fig 1: Mark Showing Relationship Of Torque Tube Splined Shaft To RDM Pinion

Courtesy of GENERAL MOTORS COMPANY

NOTE:

The torque tube and RDM are balanced as an assembly. When re-using the original torque tube it should be re-installed in the same position in relation the pinion splines.

Ensure the torque tube and pinion spline marks are aligned (1).

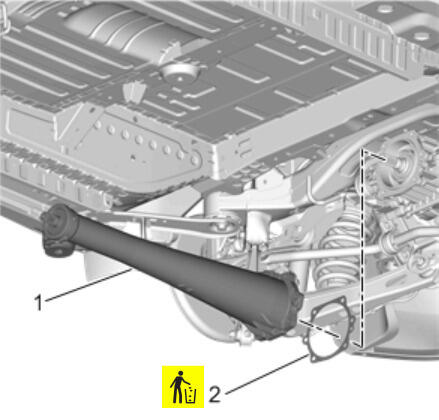

Fig 2: Torque Tube Assembly And Gasket

Courtesy of GENERAL MOTORS COMPANY

Install the torque tube assembly (1) and the NEW gasket (2) to the rear differential assembly.

Fig 3: Torque Tube Mounting Bolts

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

NOTE:

Apply loctite before installing bolts.

Install and hand tighten the torque tube to differential bolts (1) before torquing to specifications.
Torque the mounting bolts (1) to specifications.
Tighten

Tighten the bolts to 55 N.m (41 lb ft).

Fig 4: Torque Tube Mounting Bolt

Courtesy of GENERAL MOTORS COMPANY

Install the front torque tube mounting bolt (1).
Tighten

Tighten the bolt to 160 N.m (118 lb ft).

Fig 5: Propeller Shaft

Courtesy of GENERAL MOTORS COMPANY

Install the propeller shaft assembly (1). Refer to Two-Piece Propeller Shaft Replacement
Remove the support and lower the vehicle.
