Differential Carrier Insulator Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear axle assembly. Refer to Driveline Torque Tube Replacement |
|

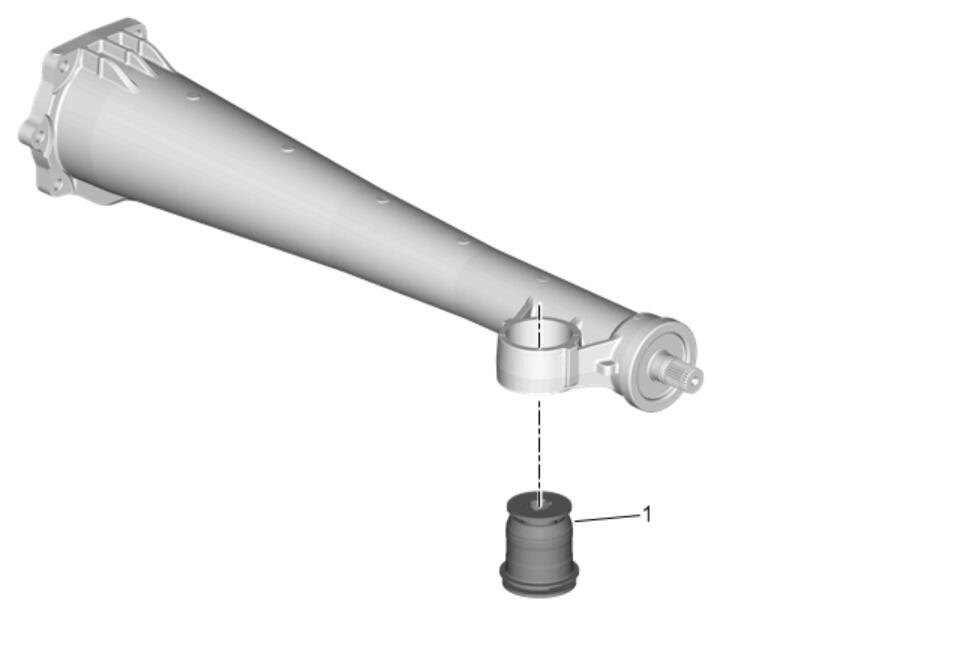

| 1 | Rear Differential Mount Bushing
NOTE:
Use the appropriate tool to remove the bushing. |
