Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

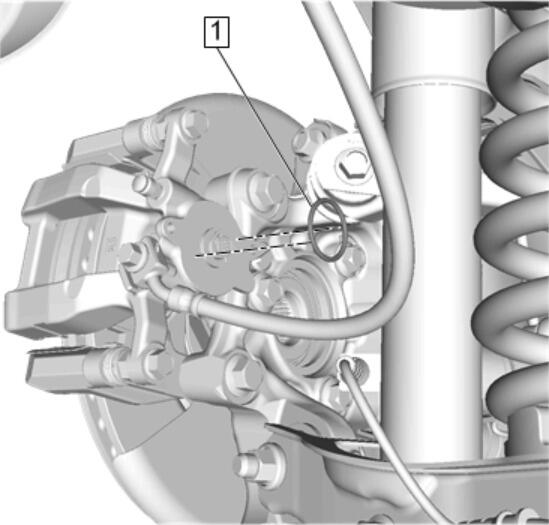

    Fig 1: Parking Brake Actuator Seal Ring
    GM4290051Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The parking brake actuator mounting surfaces of the brake caliper must be clean and free of corrosion and debris.

  1. Install New Parking Brake ActuatorSeal Ring (1)

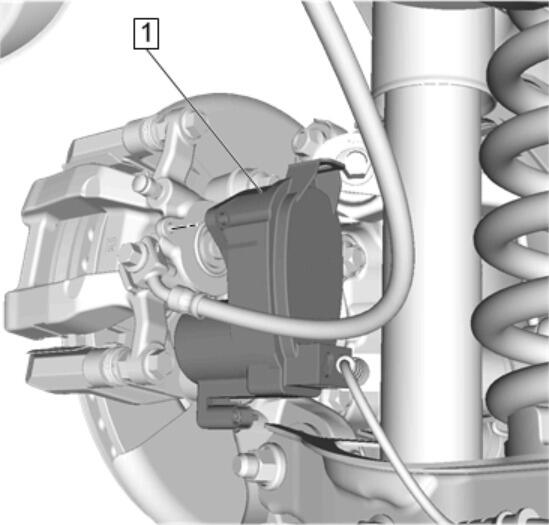

    2. Fig 2: Parking Brake Actuator
    GM4290046Courtesy of GENERAL MOTORS COMPANY
  2. Install Parking Brake Actuator (1)

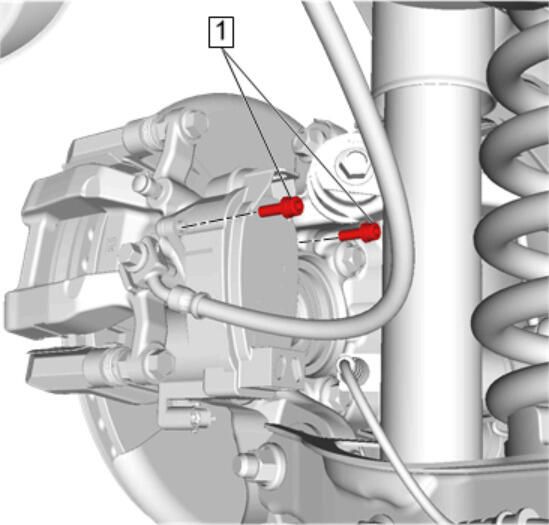

    3. Fig 3: Parking Brake ActuatorBolt
    GM4290044Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

  3. Install Parking Brake ActuatorBolt (1) and tighten 12 N.m (106 lb in)
  4. Connect the parking brake actuator electrical connector.
  5. Using an appropriate tie strap, secure the parking brake actuator electrical harness to the harness bracket.
  6. Install the tire and wheel assembly. Tire and Wheel Removal and Installation
  7. Calibrate the park brake. Park Brake Calibration
