Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Intake Manifold Cover - Intake Manifold Cover Replacement
  2. Disconnect Power Brake Booster Vacuum Sensor Electrical Connector

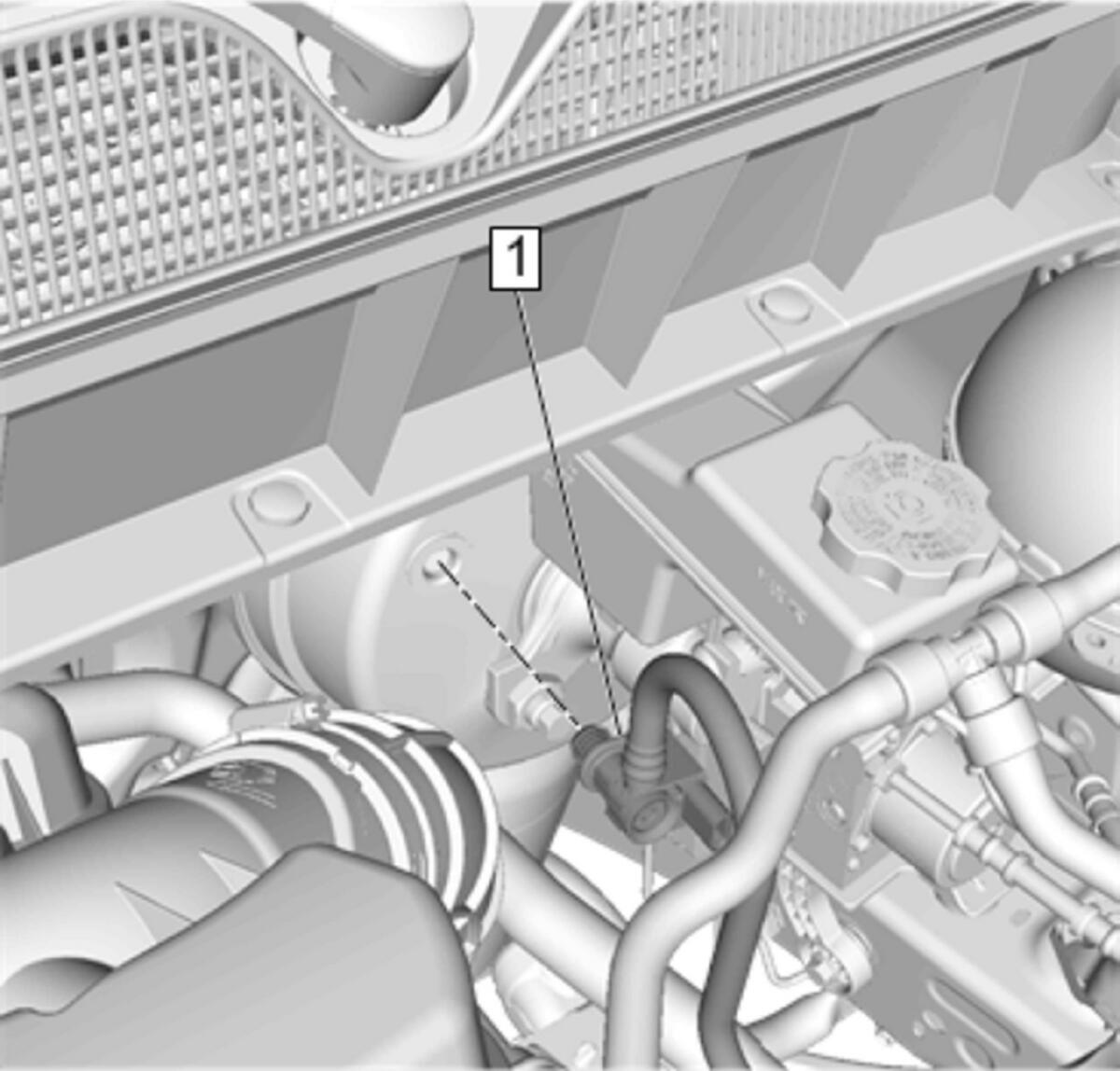

    3. Fig 1: Power Brake Booster Vacuum Sensor
    GM4337965Courtesy of GENERAL MOTORS COMPANY
  3. Remove Power Brake Booster Vacuum Sensor (1)

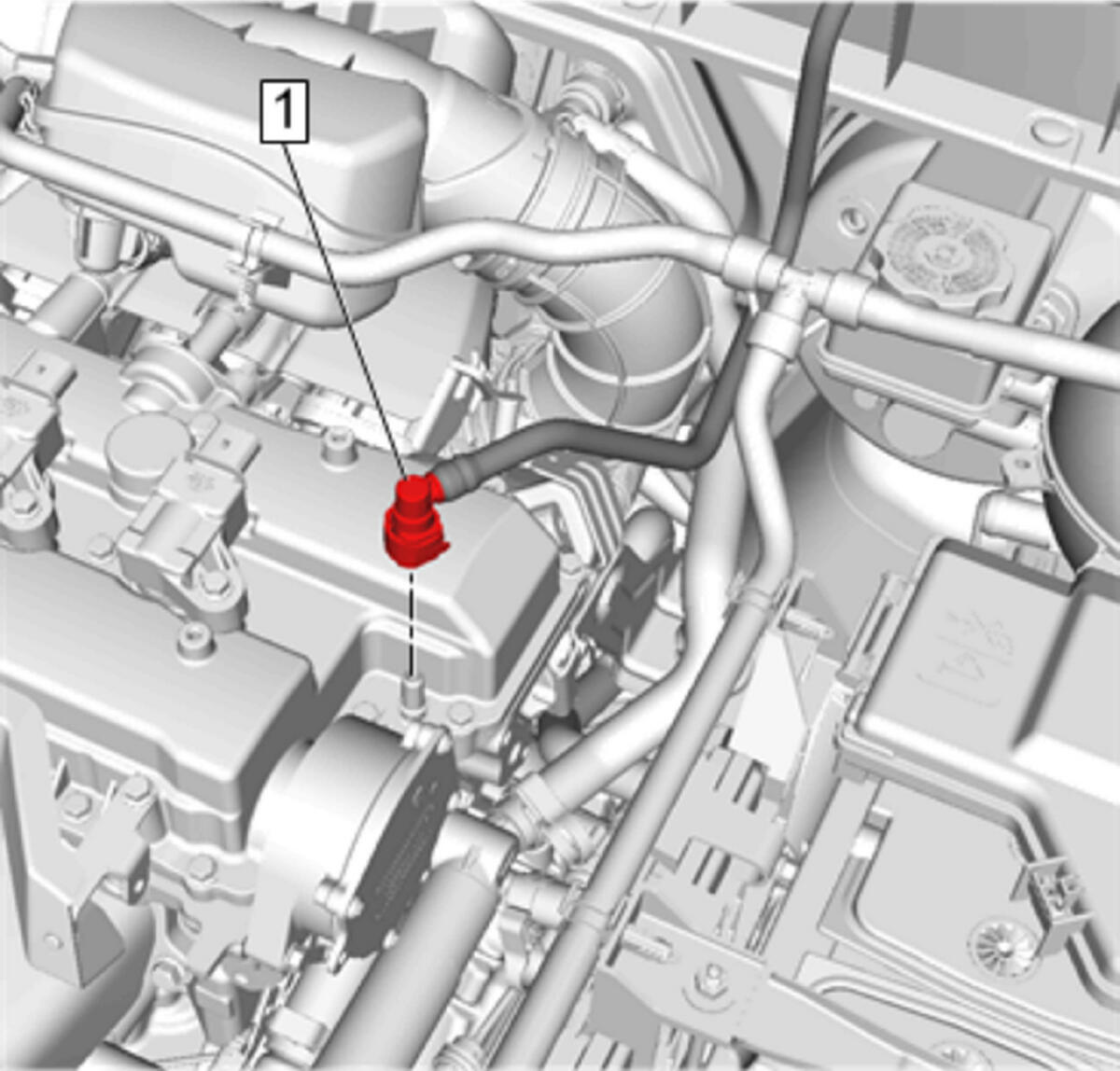

    4. Fig 2: Power Brake Booster Vacuum Quick Connect
    GM4337970Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect Power Brake Booster Vacuum Quick Connect (1)
    5. Fig 3: Power Brake Booster Vacuum Hose
    GM4337974Courtesy of GENERAL MOTORS COMPANY
  5. Remove Power Brake Booster Vacuum Hose (1)
