Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Brake Fluid Irritant Warning

CAUTION:

Brake Fluid Effects on Paint and Electrical Components Caution

  1. Remove Master Cylinder Master Cylinder Replacement

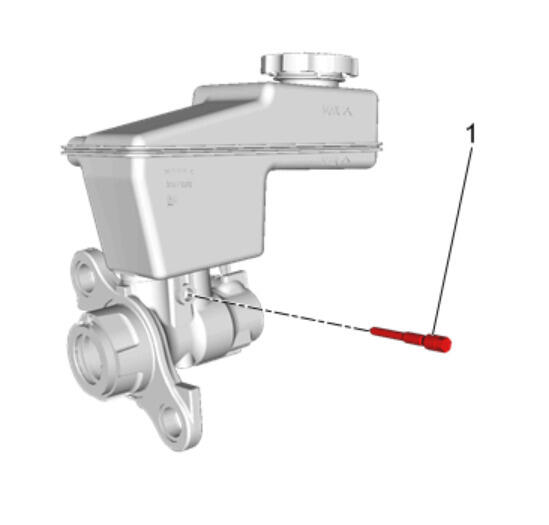

    2. Fig 1: Brake Master Cylinder Reservoir Bolt
    GM4285056Courtesy of GENERAL MOTORS COMPANY
  2. Remove Brake Master Cylinder Reservoir Bolt (1) and DISCARD
    3. Fig 2: Brake Master Cylinder Reservoir
    GM4285058Courtesy of GENERAL MOTORS COMPANY
  3. Remove Brake Master Cylinder Reservoir (1)
    4. Fig 3: Master Cylinder Reservoir Seal
    GM4285060Courtesy of GENERAL MOTORS COMPANY
  4. Remove Master Cylinder Reservoir Seal (1) and DISCARD
