Steering Gear Heat Shield Replacement (LCV)
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

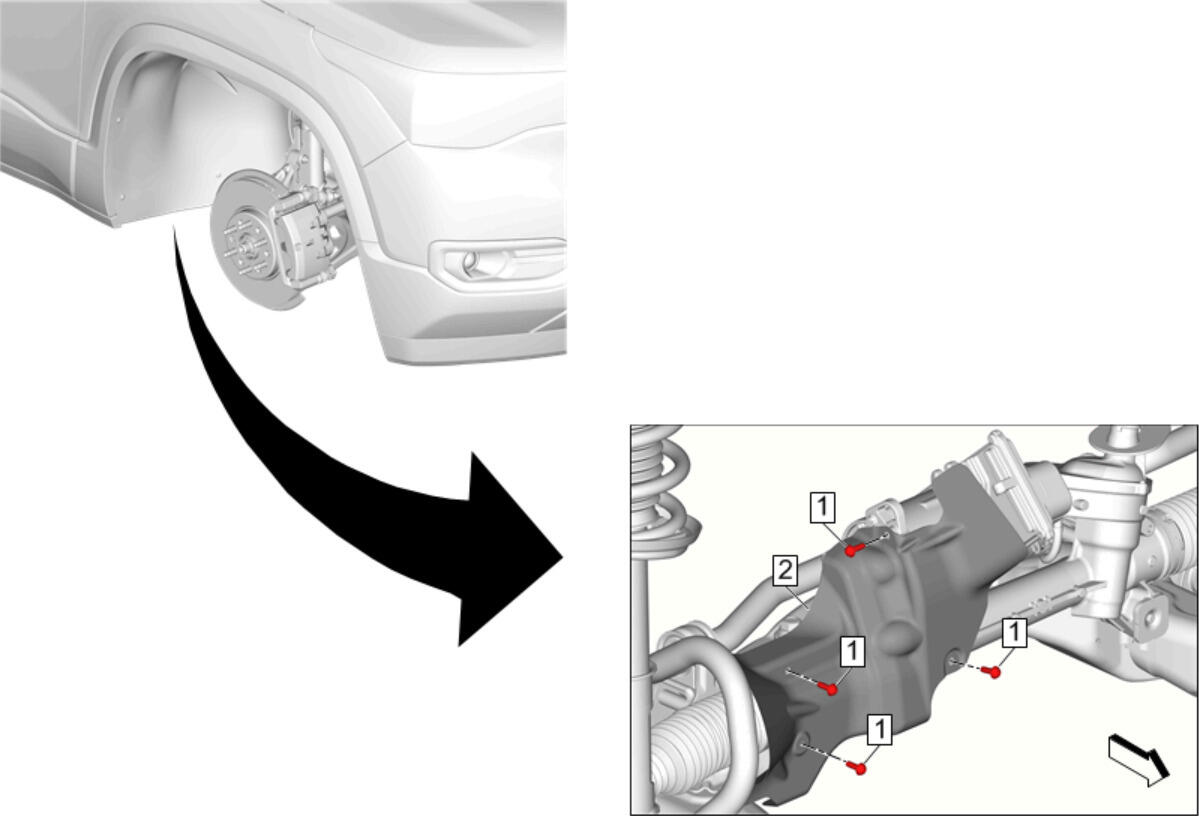

| Callout | Component Name |
|---|---|
| Preliminary Procedure Refer to Exhaust Front Pipe Replacement (LCV) . |
|
| 1 | Steering Gear Heat Shield Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Steering Gear Heat Shield |
