Front and Rear Wiper/Washer Controls

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

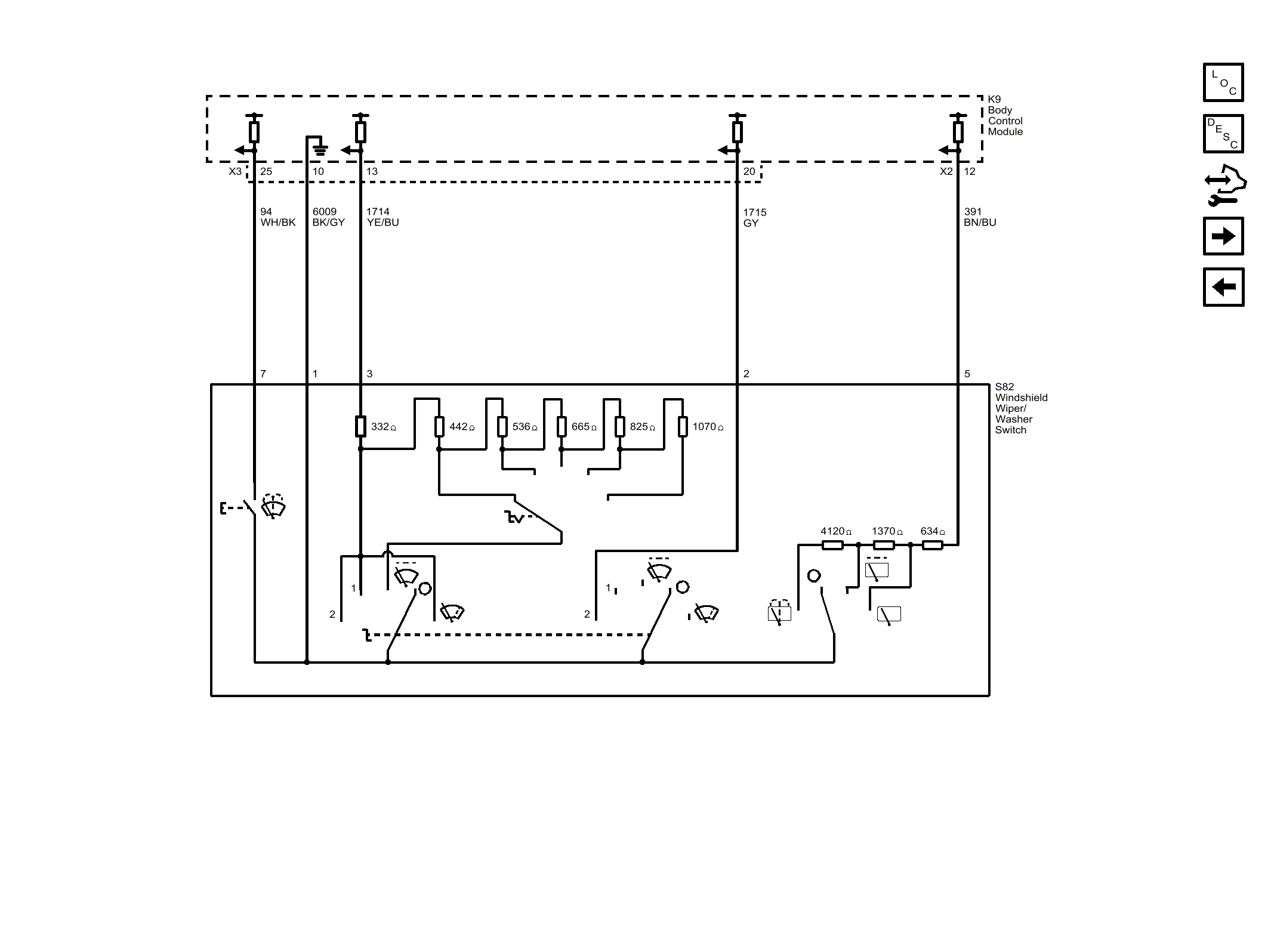

Fig 1: Front and Rear Wiper/Washer Controls
GM4373003Courtesy of GENERAL MOTORS COMPANY
