Windshield Wiper Blade Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

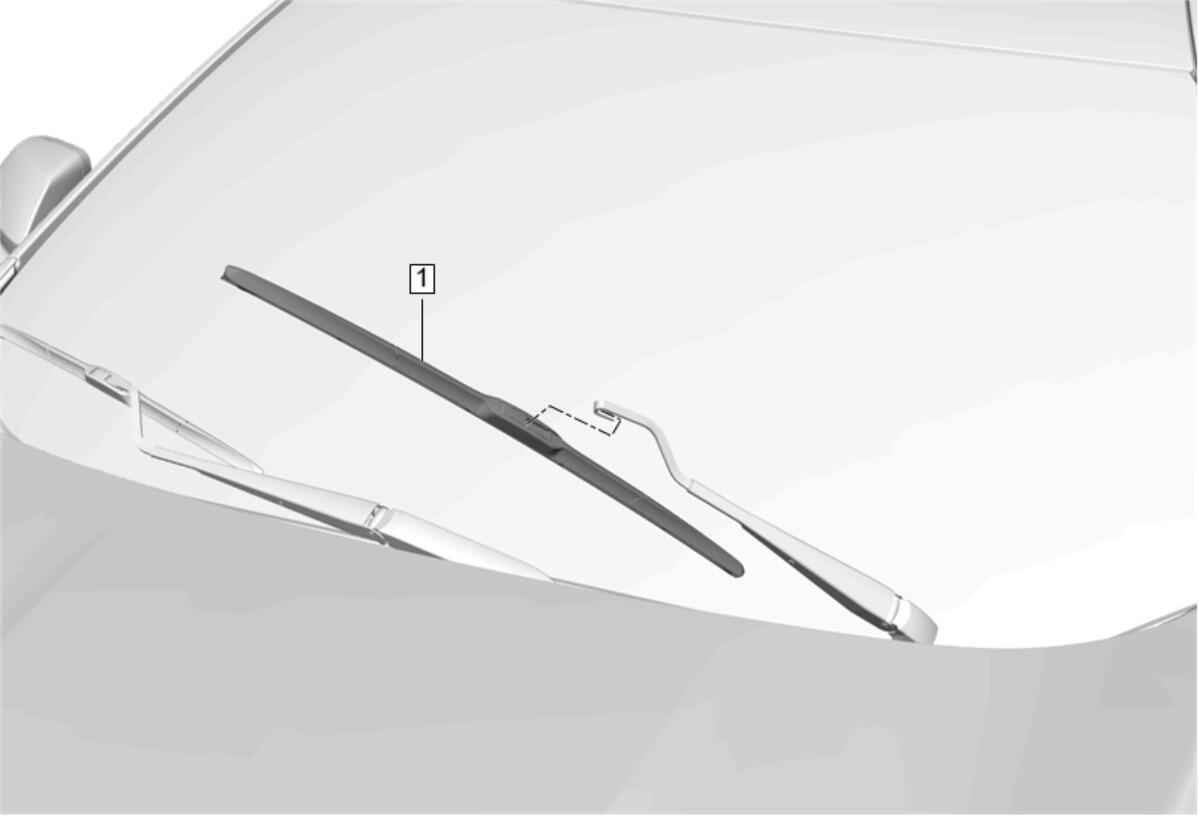

Fig 1: Windshield Wiper Blade

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Windshield Wiper Blade Procedure Lift the windshield wiper arm from the windshield. Disengage the windshield wiper blade lock from the windshield wiper arm. Release the retention tab securing the windshield wiper blade to the windshield wiper arm. Remove the windshield wiper blade.
