Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Headlamp - Left Side Headlamp Replacement - Left Side

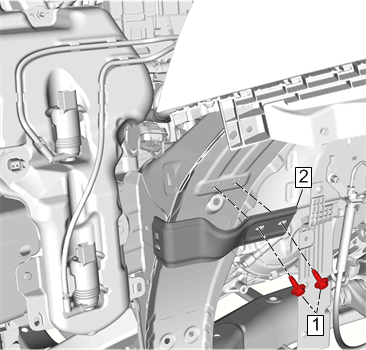

    2. Fig 1: Front Compartment Side Rail Bracket And Bolt
    GM4282971Courtesy of GENERAL MOTORS COMPANY
  2. Remove Front Compartment Side Rail Bracket Bolt (1)
  3. Remove Front Compartment Side Rail Bracket (2)
  4. Place a clean suitable drain pan under the windshield washer solvent container area to recover the windshield washer solvent when the windshield washer pump hose and rear window washer pump hose are disconnected.
    5. Fig 2: Rear Window Washer Pump, Hose And Windshield Washer Solvent Container
    GM4283046Courtesy of GENERAL MOTORS COMPANY
  5. Remove Rear Window Washer Pump Hose (1) @Rear Window Washer Pump (2)
  6. Remove Rear Window Washer Pump Hose (1) @Windshield Washer Solvent Container (3)
    7. Fig 3: Windshield Washer Pump, Hose And Windshield Washer Solvent Container
    GM4283048Courtesy of GENERAL MOTORS COMPANY
  7. Remove Windshield Washer Pump Hose (1) @Windshield Washer Pump (2)
  8. Remove Windshield Washer Pump Hose (1) @Windshield Washer Solvent Container (3)
  9. Disconnect all electrical connectors.
  10. Disconnect Wiring Harness Connector Retainer @Windshield Washer Solvent Container

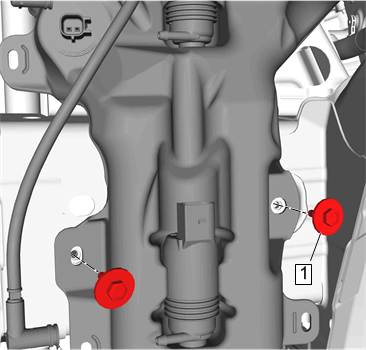

    11. Fig 4: Windshield Washer Solvent Container Bolt
    GM4283090Courtesy of GENERAL MOTORS COMPANY
  11. Remove Windshield Washer Solvent Container Bolt (1)

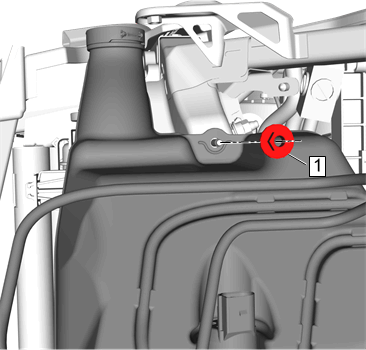

    12. Fig 5: Windshield Washer Solvent Container Nut
    GM4283093Courtesy of GENERAL MOTORS COMPANY
  12. Remove Windshield Washer Solvent Container Nut (1)

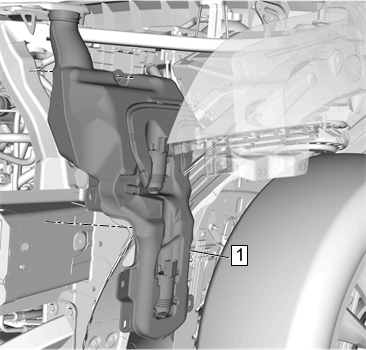

    13. Fig 6: Windshield Washer Solvent Container
    GM4283136Courtesy of GENERAL MOTORS COMPANY
  13. Remove Windshield Washer Solvent Container (1)
  14. Empty the windshield washer solvent into a suitable clean container.
  15. Transfer components as necessary.
