Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Windshield Washer Solvent Container
    GM4283136Courtesy of GENERAL MOTORS COMPANY
  1. Install Windshield Washer Solvent Container (1)
    2. Fig 2: Windshield Washer Solvent Container Bolt
    GM4283090Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install Windshield Washer Solvent Container Bolt (1) and tighten 9 N.m (80 lb in)
    3. Fig 3: Windshield Washer Solvent Container Nut
    GM4283093Courtesy of GENERAL MOTORS COMPANY
  3. Install Windshield Washer Solvent Container Nut (1) and tighten 9 N.m (80 lb in)
  4. Connect Wiring Harness Connector Retainer @Windshield Washer Solvent Container
  5. Connect all electrical connectors.
    6. Fig 4: Windshield Washer Pump, Hose And Windshield Washer Solvent Container
    GM4283048Courtesy of GENERAL MOTORS COMPANY
  6. Install Windshield Washer Pump Hose (1) @Windshield Washer Pump (2)
  7. Install Windshield Washer Pump Hose (1) @Windshield Washer Solvent Container (3)
    8. Fig 5: Rear Window Washer Pump, Hose And Windshield Washer Solvent Container
    GM4283046Courtesy of GENERAL MOTORS COMPANY
  8. Install Rear Window Washer Pump Hose (1) @Rear Window Washer Pump (2)
  9. Install Rear Window Washer Pump Hose (1) @Windshield Washer Solvent Container (3)

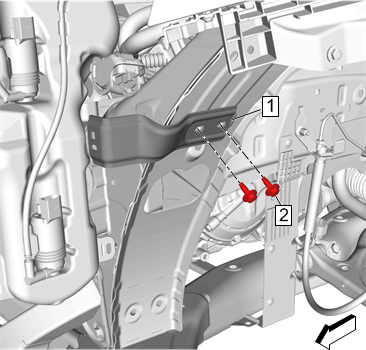

    10. Fig 6: Front Compartment Side Rail Bracket And Bolt
    GM4283171Courtesy of GENERAL MOTORS COMPANY
  10. Install Front Compartment Side Rail Bracket (1)
  11. Install Front Compartment Side Rail Bracket Bolt (2) and tighten 9 N.m (80 lb in)
  12. Install Headlamp - Left Side Headlamp Replacement - Left Side
