Installation Procedure
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

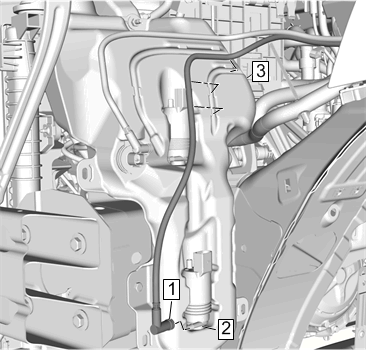

- Install Windshield Washer Pump Hose (1) @Windshield Washer Nozzle Hose (2)

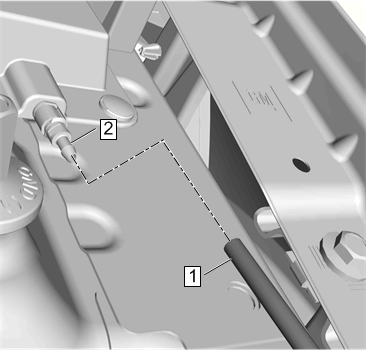

- Install Windshield Washer Pump Hose (1) @Rear Window Washer Pump Hose Clip (2)

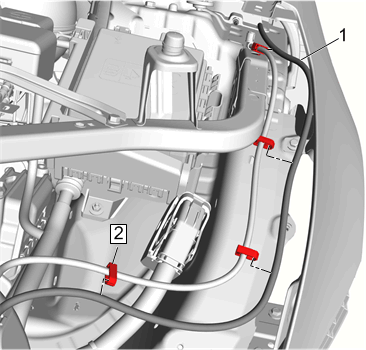

- Install Windshield Washer Pump Hose (1) @Windshield Washer Pump (2)
- Install Windshield Washer Pump Hose (1) @Windshield Washer Solvent Container (3)
- Install Headlamp - Left Side Headlamp Replacement - Left Side
