Installation Procedure
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
- Install the windshield washer liftgate extension rear hose (2) to the vehicle.
- Windshield Washer Liftgate Extension Rear Hose (2) @Rear Window Washer Nozzle Hose (3)

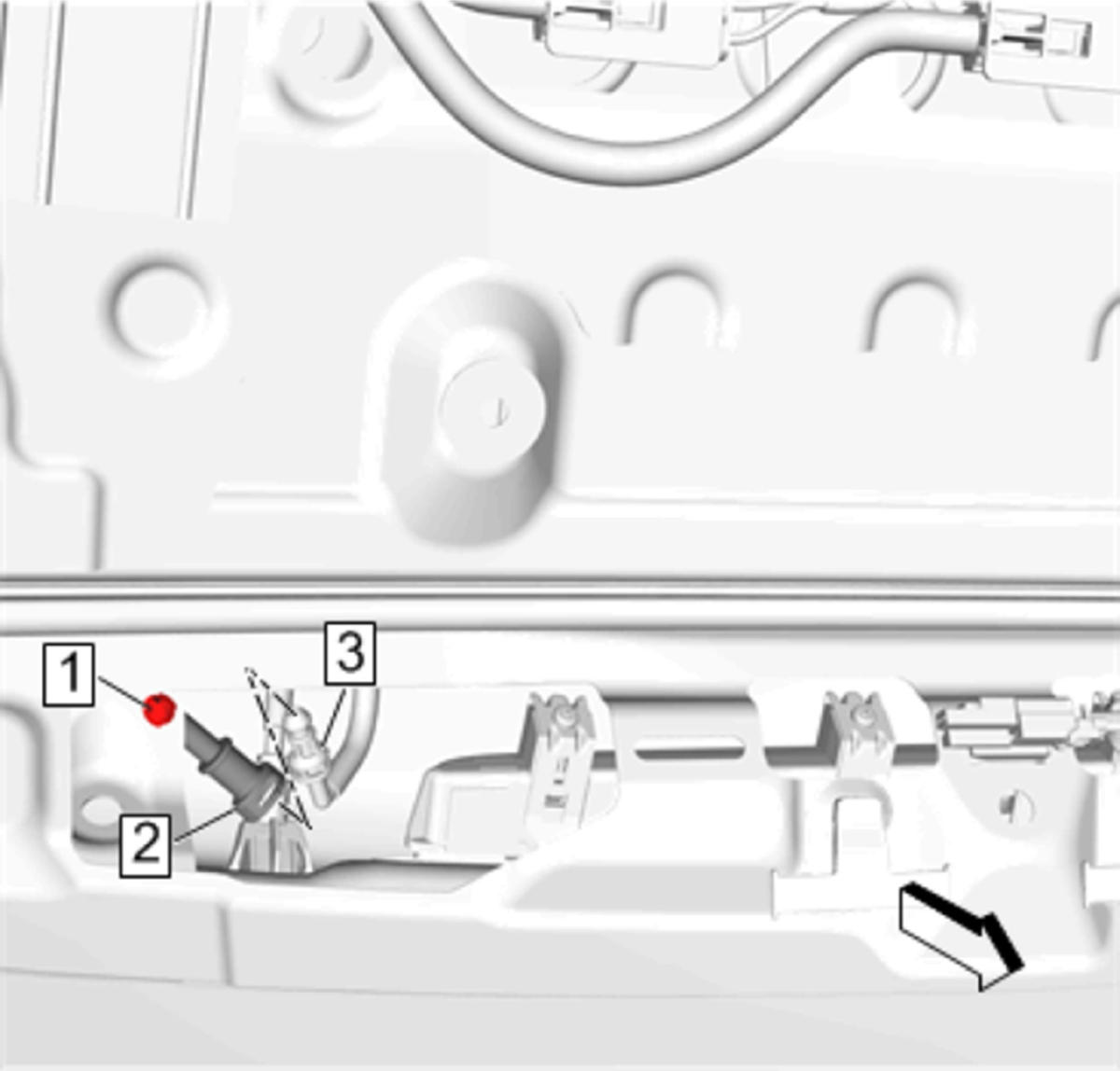

- Connect Windshield Washer Liftgate Extension Rear Hose Retainer (1) @Liftgate
- Connect Windshield Washer Liftgate Extension Rear Hose (2) @Rear Window Washer Nozzle Hose - Headliner (3)
- Install NEW tie straps. (1)
- Connect the electrical connectors.
- Install Headlining Trim Panel Headlining Trim Panel Replacement (With C3U)Headlining Trim Panel Replacement (Without C3U)
- Install Liftgate Upper Trim Finish Panel (1)Liftgate Upper Trim Finish Panel Replacement

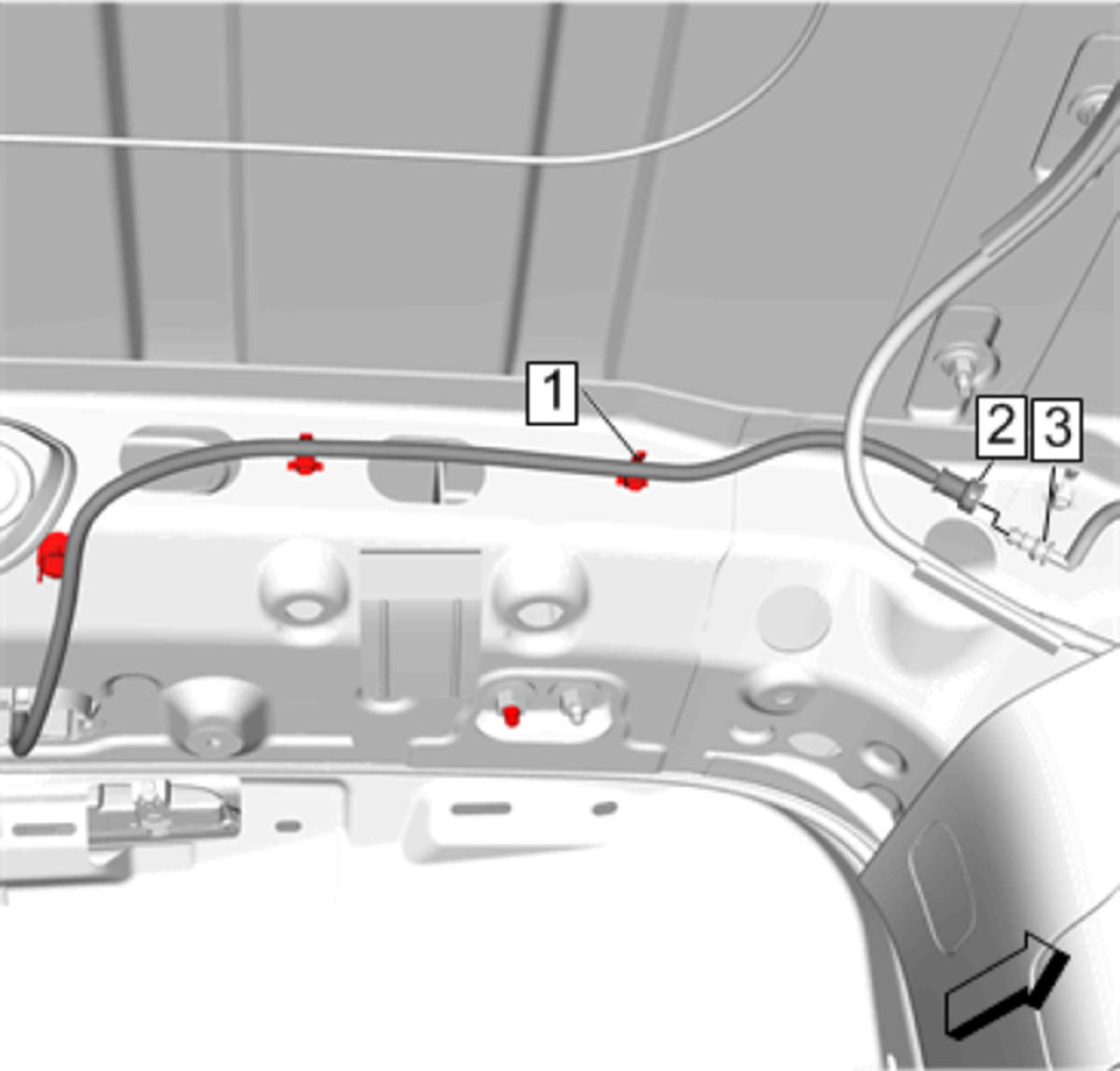

Fig 2: Windshield Washer Liftgate Extension Rear Hose And Rear Window Washer Nozzle Hose - Headliner
