Rear Window Wiper Blade Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

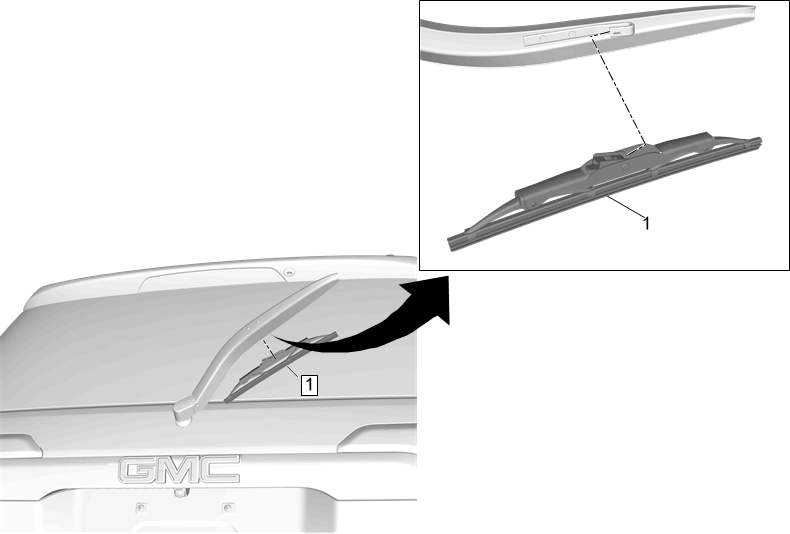

| Callout |
Component Name |
| 1 |
Rear Window Wiper Blade Procedure
- Lift the rear wiper arm blade off the rear liftgate glass.
- Release the retention tab while sliding wiper blade off the shepherd's hook.
- Remove the rear wiper blade from the rear wiper arm.
|
